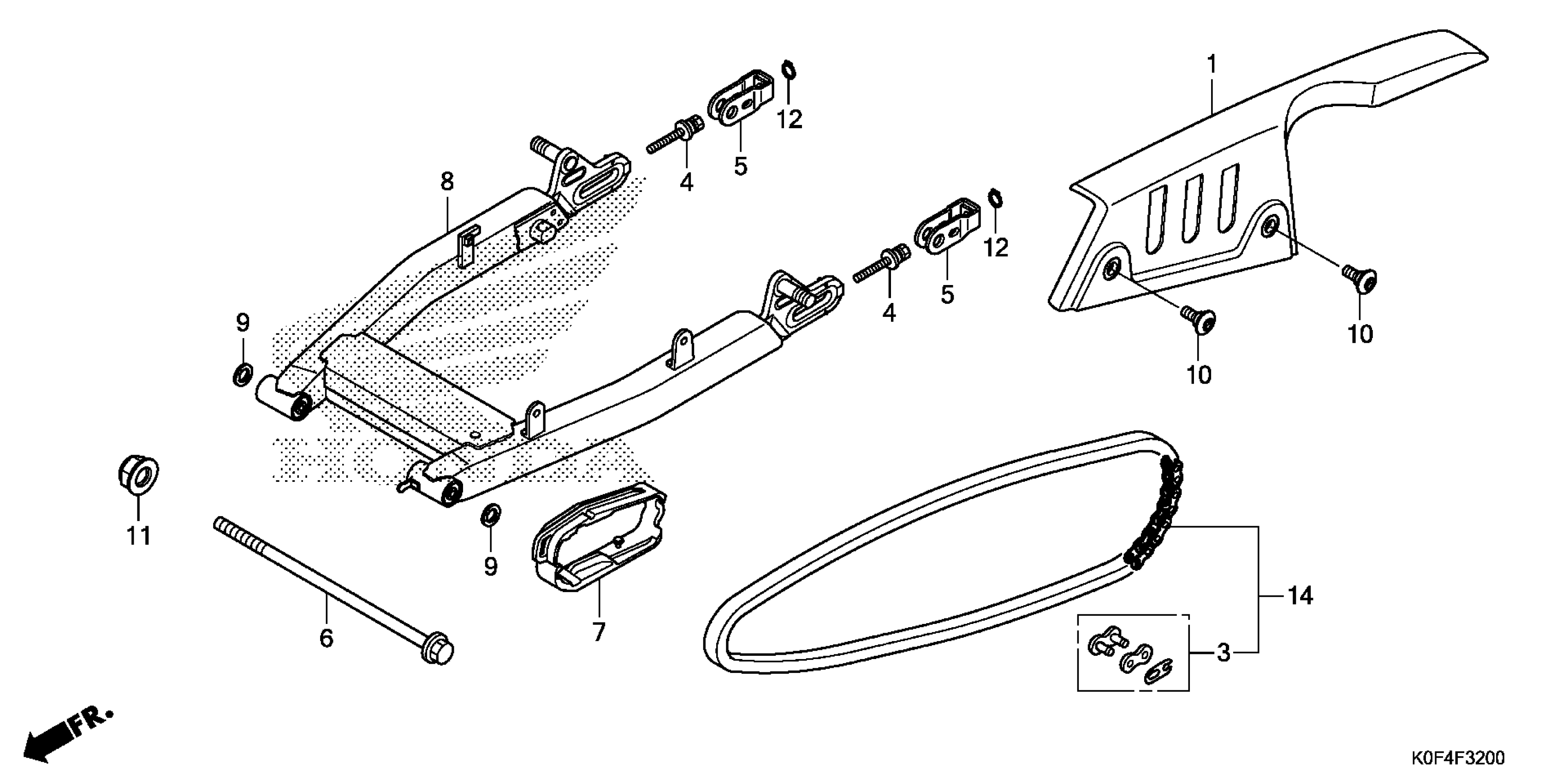

Honda Z125MAC (21) MOTORCYCLE, THA, VIN# MLHJB021-M5200001 SWINGARM Diagram

CASE, DRIVE CHAIN

40510-K0F-T00

$15.24

MASTER LINK (DAIDO)

40531-KWV-003

$3.41

BOLT, CHAIN ADJUSTING

40542-K0F-T00

$2.19

ADJUSTER, CHAIN

40543-K0F-T00

$8.29

BOLT, SWINGARM PIVOT

52101-K0F-T00

$7.28

SLIDER, CHAIN

52170-K0F-T00

$8.63

SWINGARM SUB-ASSY., RR. *R376P* (PEARL NEBULA RED)

52200-K0F-T00ZB

$284.59

SWINGARM SUB-ASSY., RR. *B231P* (PEARL GLITTERING BLUE)

52200-K0F-T00ZD

$290.19

WASHER, PIVOT BOLT

90122-KWB-600

$0.65

SCREW, PAN (6X14)

90133-KPP-T00

Unavailable

NUT, U (12MM)

90306-KWN-701

$3.87

CIRCLIP (OUTER) (10MM)

94511-10000

$0.85

CHAIN, DRIVE (DID420D2-98RB)

40530-K0F-D11

$21.78
