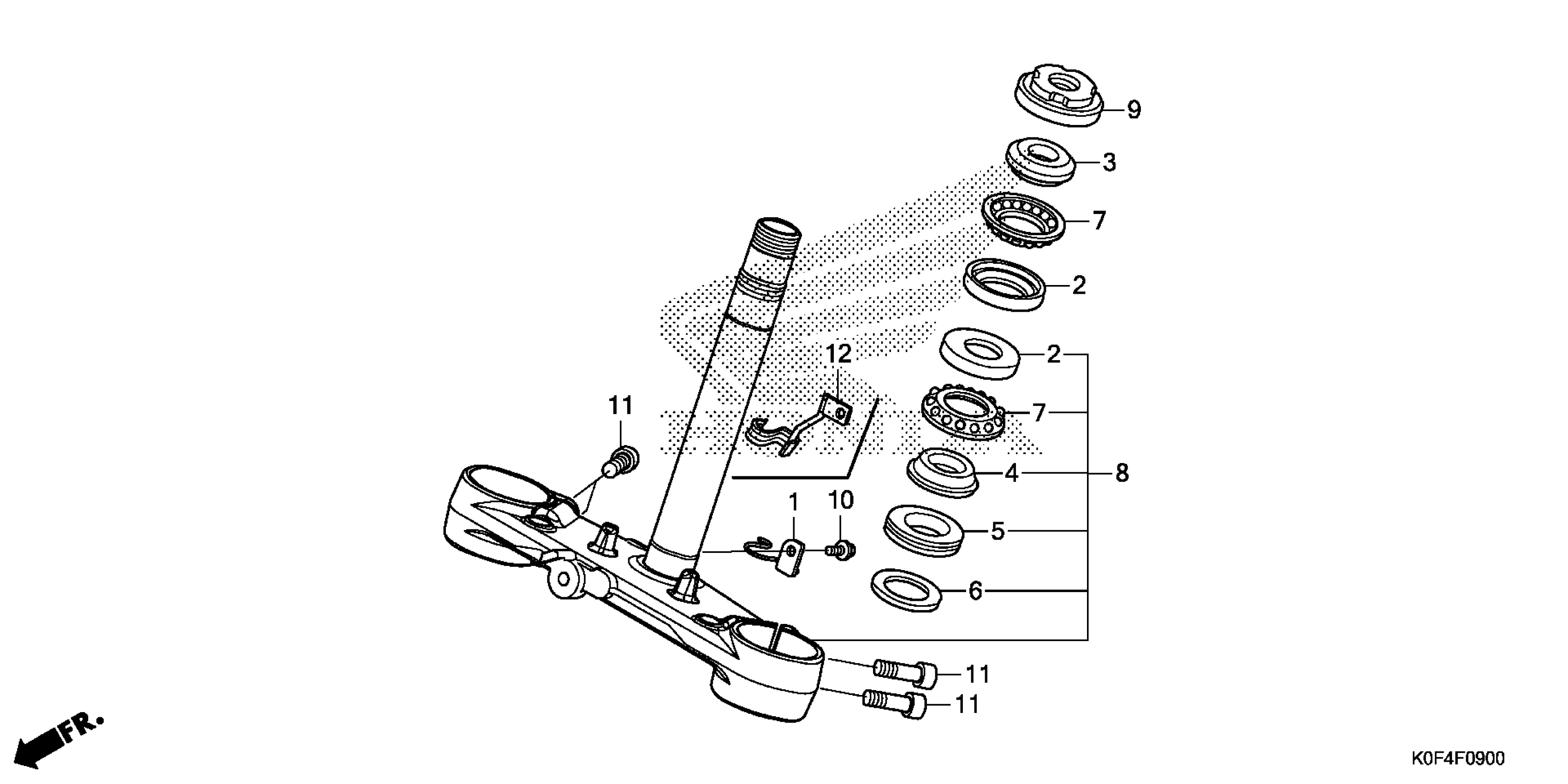

Honda Z125MAC (21) MOTORCYCLE, THA, VIN# MLHJB021-M5200001 STEERING STEM Diagram

#

Description

Price

1

GUIDE B, FR. BRAKE HOSE

45157-K0F-T00

$5.97

2

RACE, STEERING TOP BALL

50301-KTR-900

$5.75

3

RACE, STEERING CONE (UPPER)

53211-268-010

$23.45

4

RACE, STEERING CONE (LOWER) This part replaces 53212-200-000.

53212-200-305

$17.77

4

RACE, STEERING CONE (LOWER)

53212-200-305

$17.77

5

DUST SEAL, STEERING HEAD

53214-200-000

$2.80

6

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.61

7

BALL ASSY., STEERING STEEL

53215-KTR-900

$12.50

8

STEM SUB-ASSY., STEERING

53219-K0F-T00

$147.04

9

THREAD, STEERING HEAD TOP

53220-KE8-010

$28.60

10

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable

11

BOLT, SOCKET (8X25)

96600-08025-00

$1.84
