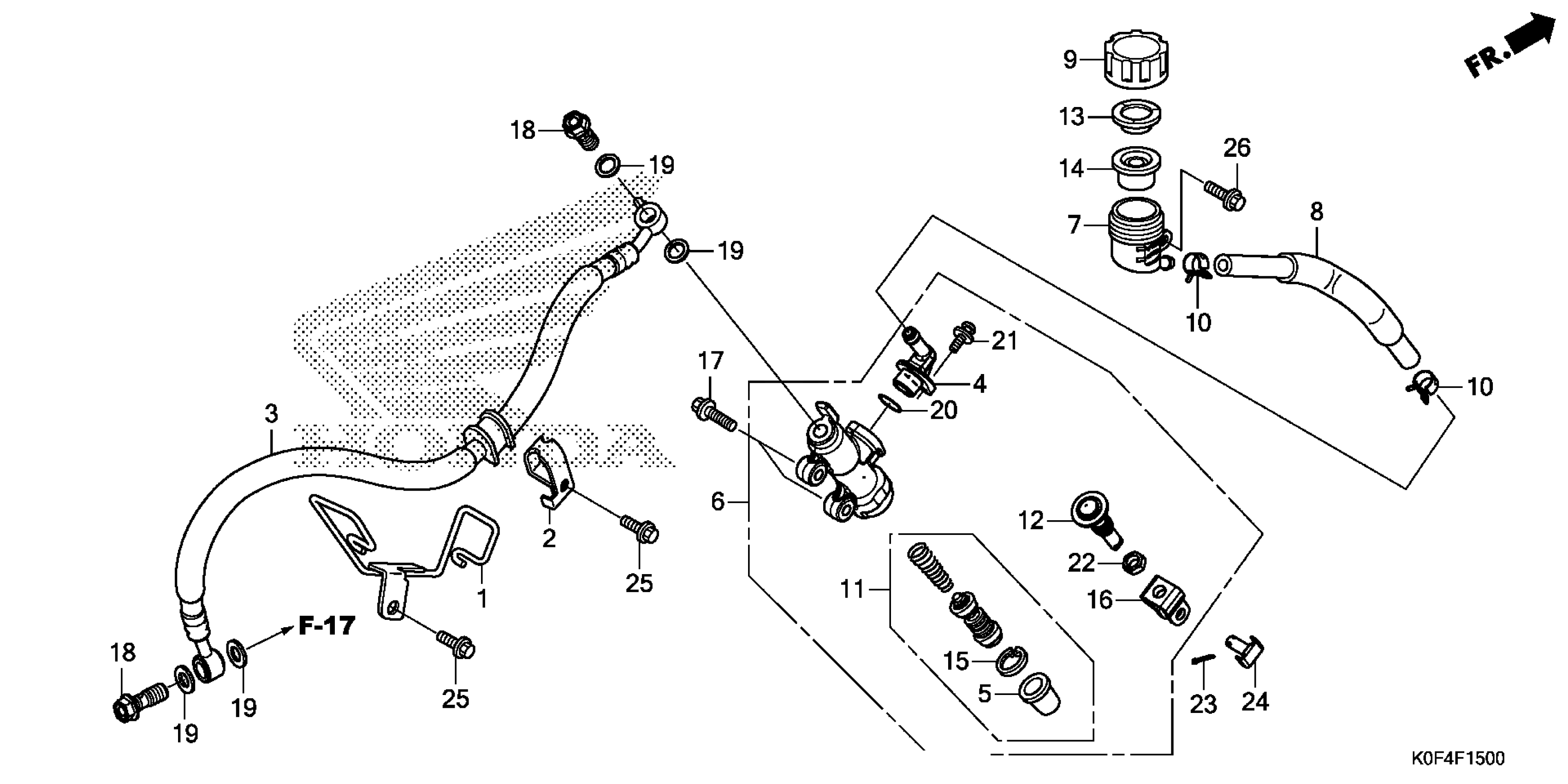

Honda Z125MAC (21) MOTORCYCLE, THA, VIN# MLHJB021-M5200001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

CLAMP, RR. BRAKE HOSE

43155-K0F-T00

$7.54

2

CLAMP, RR. BRAKE HOSE

43156-K0F-T00

$3.19

3

HOSE, RR. BRAKE

43310-K0F-T01

$17.78

4

CONNECTOR

43503-MR7-006

$12.88

5

BOOT

43504-MB2-006

$9.24

6

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-K26-B01

$88.22

7

CUP, MASTER CYLINDER OIL

43511-KS6-702

$23.78

8

HOSE, RR. MASTER CYLINDER

43512-K0F-T01

$14.15

9

CAP, MASTER CYLINDER

43513-KWN-671

$7.62

10

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

11

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$41.66

12

ROD, PUSH

43530-KV3-831

$21.09

13

PLATE, DIAPHRAGM

45518-GM9-711

$4.28

14

DIAPHRAGM

45520-GM9-711

$8.43

15

CIRCLIP

46182-MEL-D21

$1.79

16

JOINT, BRAKE ROD

46504-KV6-702

$7.49

17

BOLT, FLANGE (6X22) (SH)

90101-K26-B00

$0.65

18

BOLT, OIL (10X22) (NISSIN)

90145-KPH-B30

$1.66

19

WASHER, OIL BOLT

90545-300-000

$6.56

20

O-RING (14.8X2.4)

91212-422-006

$2.37

21

SCREW-WASHER (4X12)

93893-04012-07

$1.24

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

22

NUT, HEX. (8MM)

94002-08000-0S

$1.21

23

PIN, COTTER (2.0X12)

94201-20120

$0.96

24

PIN D, JOINT

95015-54000

$4.05

25

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.66

26

BOLT, FLANGE (6X14)

96001-06014-00

$1.66
