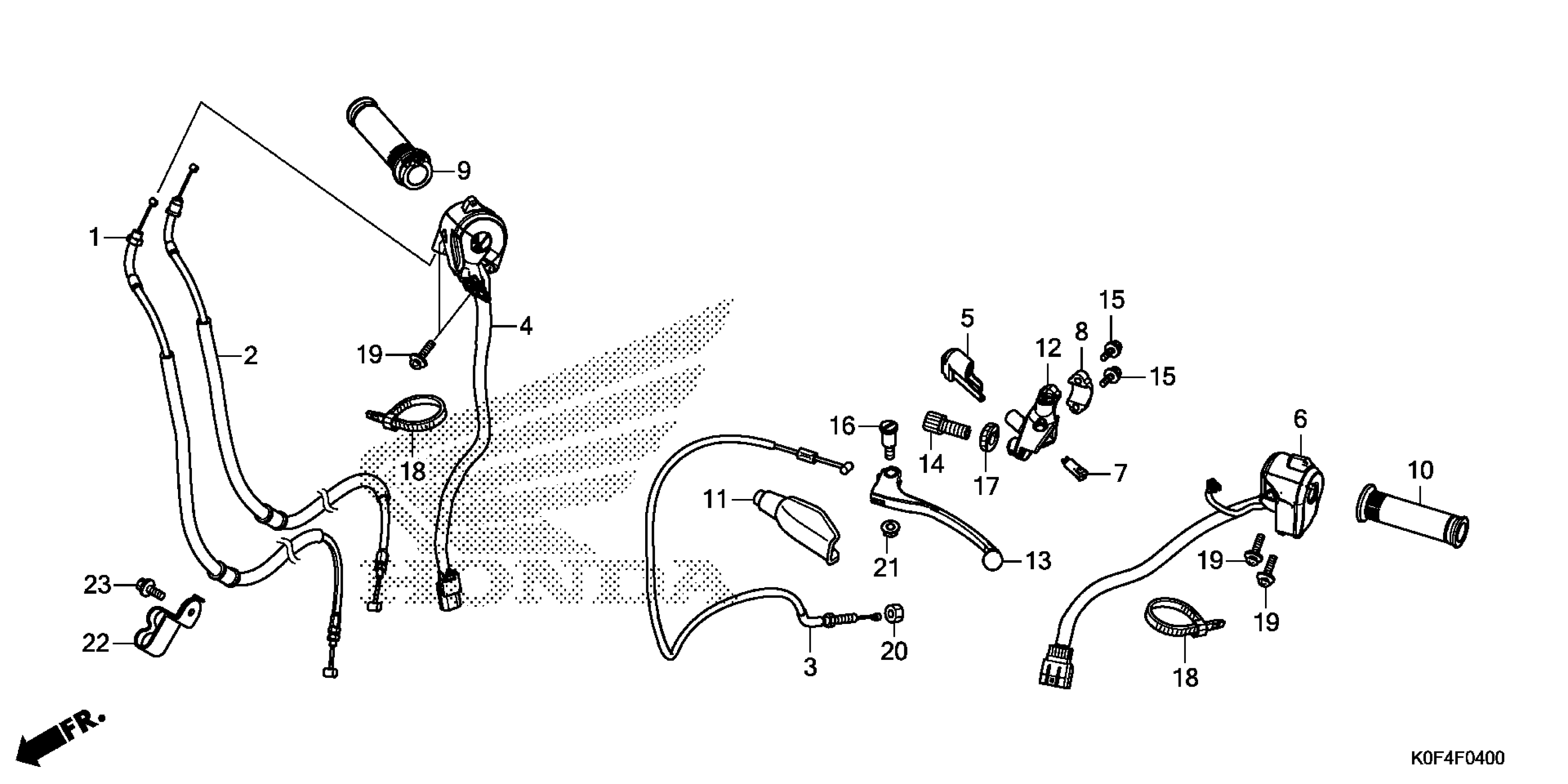

Honda Z125MAC (21) MOTORCYCLE, THA, VIN# MLHJB021-M5200001 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE A, THROTTLE

17910-K0F-T01

$15.48

CABLE B, THROTTLE

17920-K0F-T01

$16.04

CABLE, CLUTCH

22870-K0F-T01

$12.59

SW ASSY., ENG STOP This part replaces 35130-K0F-T01.

35130-K0F-T02

$52.88

SW ASSY., ENG STOP

35130-K0F-T02

$52.88

COVER, CLUTCH SWITCH

35152-KRY-970

$9.01

SWITCH ASSY., TURN SIGNAL

35200-K0F-T01

$88.58

SWITCH, FR. LEVER

35330-KYJ-901

$6.15

HOLDER, MASTER CYLINDER

45517-KCW-870

$9.72

GRIP, THROTTLE

53140-K0F-T00

$8.85

GRIP, L. HANDLE

53166-K0F-T00

$3.95

COVER, L. HANDLEBAR LEVER

53172-402-700

$6.70

BRACKET, HANDLE LEVER

53172-KYJ-900

$12.48

LEVER, L. HANDLE

53178-KV0-000

$16.46

BOLT, CABLE ADJUSTING

53192-268-000

$6.08

BOLT, FLANGE (6X22)

90013-GHB-660

$2.12

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.06

NUT, FIXING

90321-315-670

$6.80

BAND, WIRE

90650-KW3-000

$4.16

SCREW-WASHER (5X20)

93892-05020-07

$0.78

NUT, HEX. (8MM)

94030-08000

$0.97

NUT, FLANGE (6MM)

94050-06000

$0.59

CLAMP, THROTTLE CABLE

17911-K0F-T00

$3.14

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable
