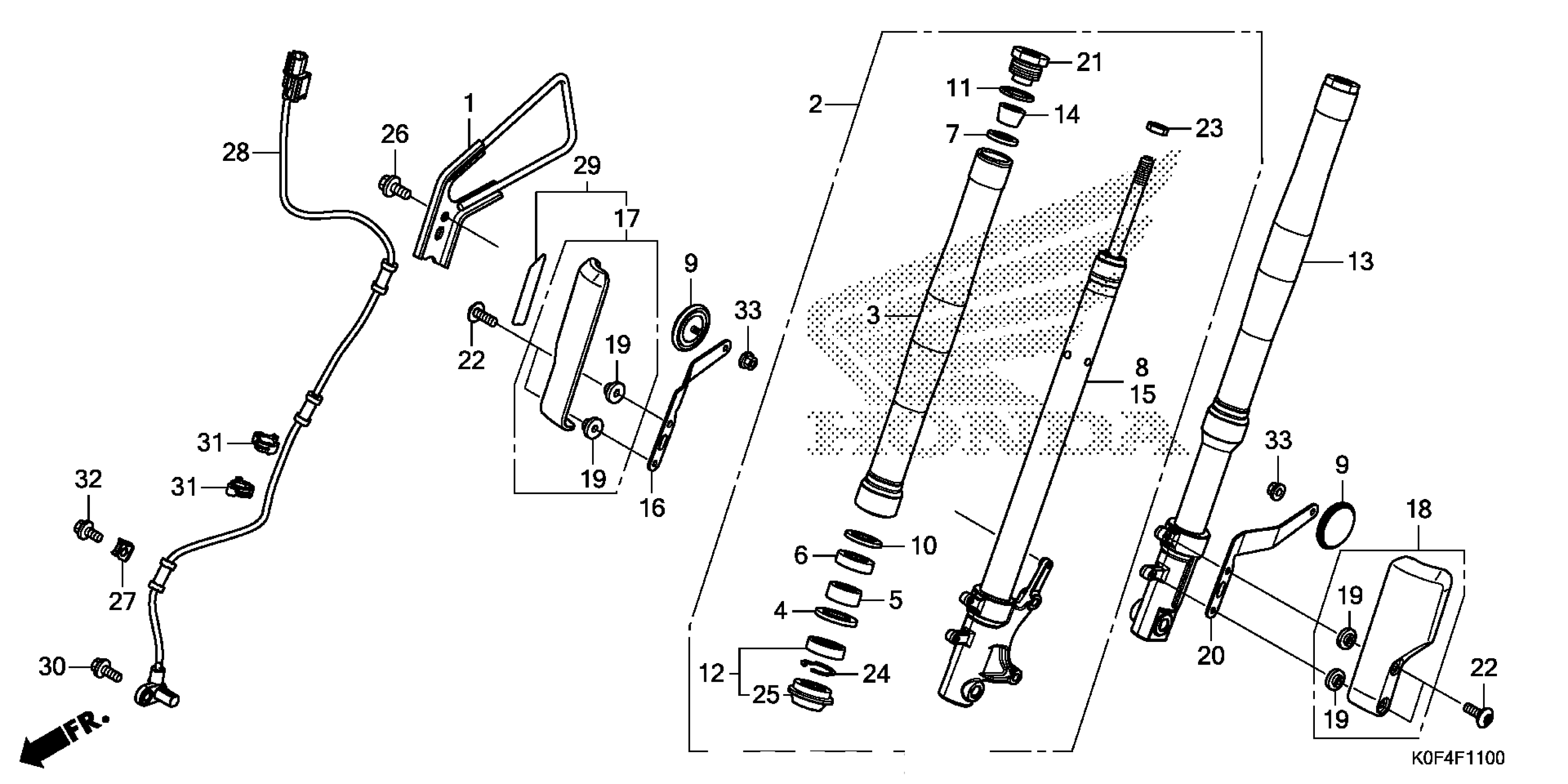

Honda Z125MAC (21) MOTORCYCLE, THA, VIN# MLHJB021-M5200001 FRONT FORK Diagram

GUIDE, FR. BRAKE HOSE

45155-K0F-T00

$13.51

FORK ASSY., R. FR. (TYPE1)

51400-K0F-J01ZA

$403.22

FORK ASSY., R. FR. (TYPE1)

51400-K0F-V01ZA

$392.38

TUBE (OUTER) (RED)

51410-K0F-J01

$151.45

TUBE (OUTER) (BLUE)

51410-K0F-V01

$151.45

RING, BACK-UP (SHOWA)

51412-KK4-003

$6.15

BUSH, GUIDE

51414-K0F-T01

$9.38

BUSH, SLIDER

51415-K20-901

$18.64

SEAT

51419-K20-T21

$1.74

DAMPER, R. FR.

51425-K0F-T01

$262.30

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$8.74

RING B, PISTON

51438-K20-901

$13.67

O-RING

51458-K20-901

$12.08

SEAL SET, FR. FORK (SHOWA)

51490-KRM-852

$18.89

FORK ASSY., L. FR. (TYPE1)

51500-K0F-J01ZA

$414.96

FORK ASSY., L. FR. (TYPE1)

51500-K0F-V01ZA

$386.51

RUBBER, STOPPER

51517-K20-T21

$1.96

DAMPER, L. FR.

51525-K0F-T01

$260.99

STAY, R. FR. REFLECTOR

61102-K0F-A00

$18.64

COVER, R. FR. FORK

51610-K0F-T00

$19.30

COVER, L. FR. FORK

51620-K0F-T00

$17.95

COLLAR, FR. FENDER

61101-KZZ-900

$0.94

STAY, L. FR. REFLECTOR

61103-K0F-A00

$18.64

BOLT, FR. FORK

90123-K20-T21

$20.01

SCREW, PAN (6X18)

90130-K26-900

$0.84

NUT, LOCK (12MM) (SOURCE: VINTAGE PARTS INC.)

90301-MB9-950

$2.97

RING, OIL SEAL STOP (SHOWA)

90601-354-000

$4.77

DUST SEAL (SHOWA)

91254-GAA-003

$15.27

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.26
