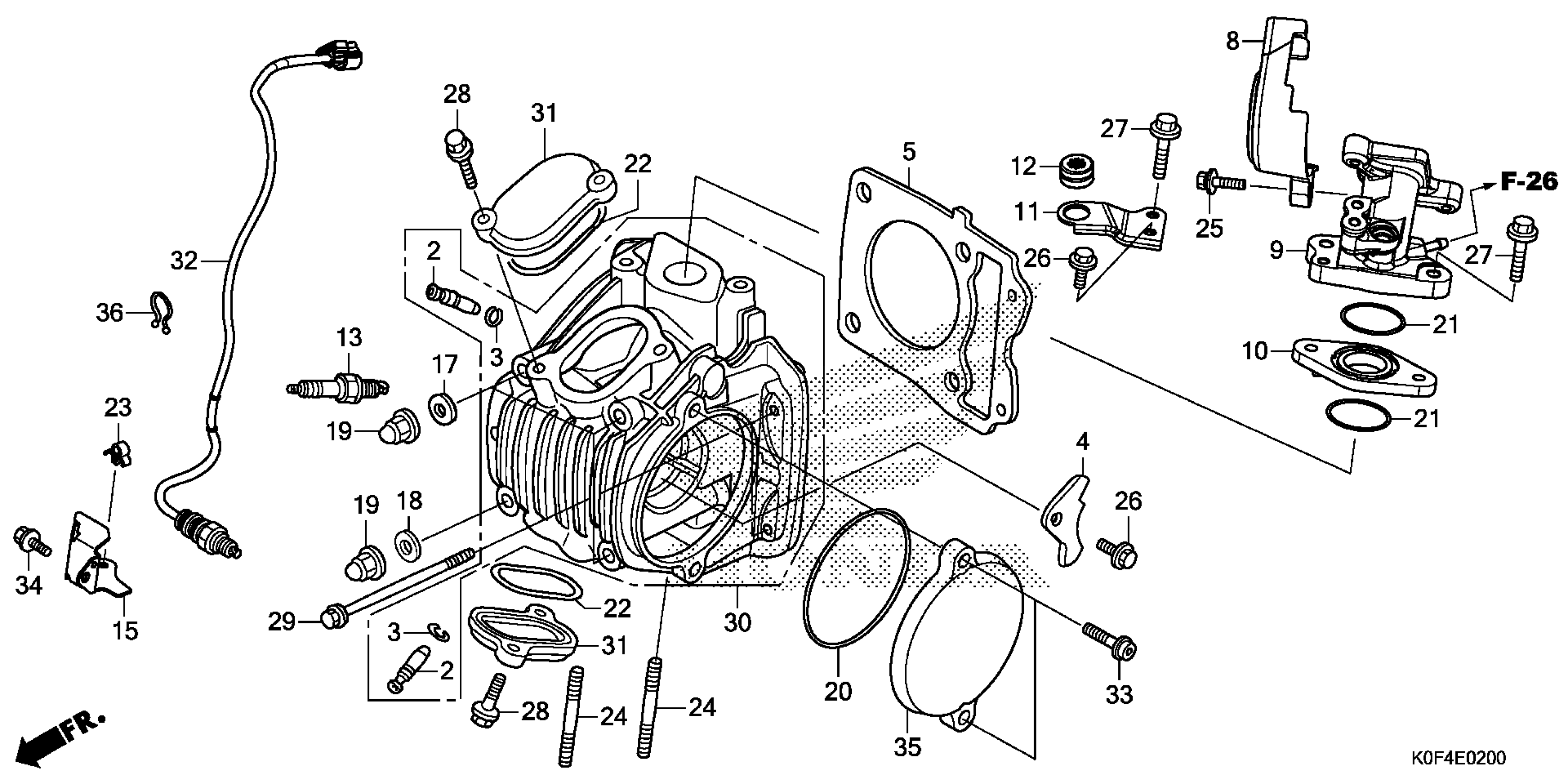

Honda Z125MAC (21) MOTORCYCLE, THA, VIN# MLHJB021-M5200001 CYLINDER HEAD Diagram

#

Description
Price

2

GUIDE, VALVE (OVER SIZE)

12204-KYZ-P00

$20.80

3

CLIP, VALVE GUIDE

12206-KPL-900

$3.52

4

PLATE, STOPPER

12211-KPH-900

$1.49

5

GASKET, CYLINDER HEAD

12251-KYZ-901

$4.77

8

COVER, THROTTLE

16157-K26-B00

$1.49

9

PIPE, INLET

17110-K26-910

$109.93

10

INSULATOR, IN. PIPE

17119-K26-900

$8.77

11

STAY, AIR CLEANER

17120-K26-900

$3.02

12

RUBBER, AIR CLEANER MOUNTING

17130-K26-900

$4.98

13

SPARK PLUG (CPR6EA-9) (NGK)

31916-KPH-901

$10.49

13

SPARK PLUG (CPR7EA-9) (NGK) | (Optional).

31917-KPH-901

$4.33

13

SPARK PLUG (U20EPR9) (DENSO)

31926-KPH-901

$4.33

13

SPARK PLUG (U22EPR9) (DENSO) | (Optional).

31927-KPH-901

$4.33

15

GUARD, OXYGEN SENSOR

36535-K26-B00

$2.97

17

WASHER, SEALING (8MM)

90441-286-000

$1.90

18

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

19

NUT, CAP (8MM)

90443-KTM-970

$1.49

20

O-RING (74.5X2.5) (NOK)

91301-PH8-005

$10.25

21

O-RING (29X2.4)

91304-KPH-700

$1.75

22

O-RING, TAPPET ADJUSTING HOLE CAP

91372-KPH-900

$1.49

23

CLIP, HOOD OPEN WIRE

91504-SL0-003

$5.41

24

BOLT 2, STUD (8X28)

92900-08028-0E

$2.34

25

BOLT-WASHER (5X25)

93414-05025-08

$1.49

26

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

27

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

28

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

29

BOLT, FLANGE (6X90)

96001-06090-00

$1.95

30

CYLINDER HEAD

12200-K0F-T00

$117.39

31

COVER, TAPPET ADJUSTING HOLE

12361-K0F-T00

$26.43

32

SENSOR, OXYGEN

36532-K0F-T01

$49.75

33

BOLT, FLANGE SOCKET (6X22)

90001-MGZ-J00

$1.49

34

BOLT, FLANGE (6X14) (NSHF) (NOT AVAILABLE)

90017-GHB-620

$1.92

35

COVER, L. CYLINDER HEAD SIDE

12341-K0F-T00

$52.69

36

BAND, TUBE

90683-GS9-670

$2.45
