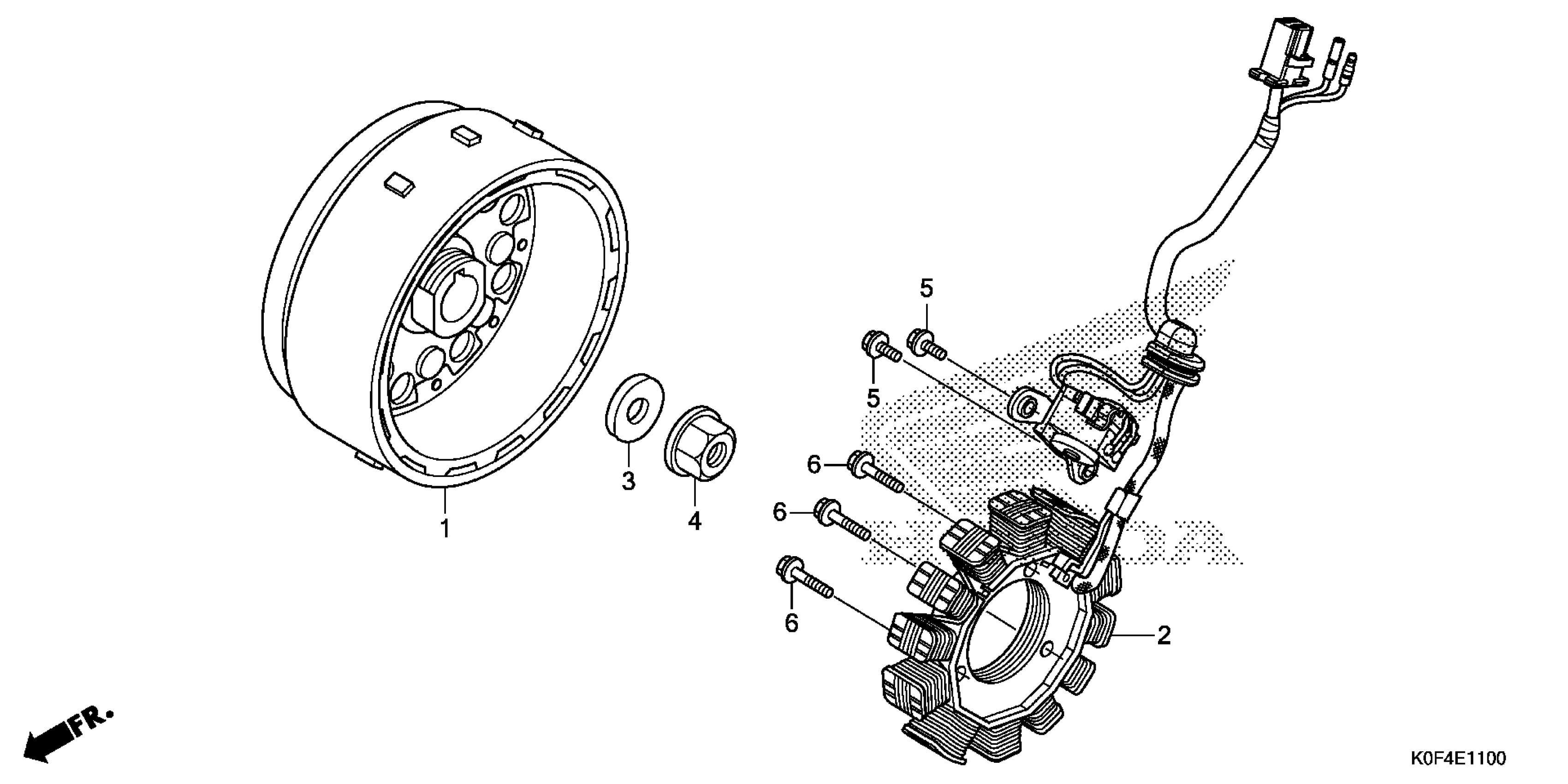

Honda Z125MAC (21) MOTORCYCLE, THA, VIN# MLHJB021-M5200001 ALTERNATOR@FLYWHEEL Diagram

#

Description

Price

1

FLYWHEEL (DENSO)

31110-K26-B01

$57.62

2

STATOR

31120-K0F-T01

$46.76

3

WASHER (12X24X2.3)

90439-KWZ-900

$0.85

4

NUT, FLANGE (12MM)

94050-12000

$0.96

5

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

6

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
