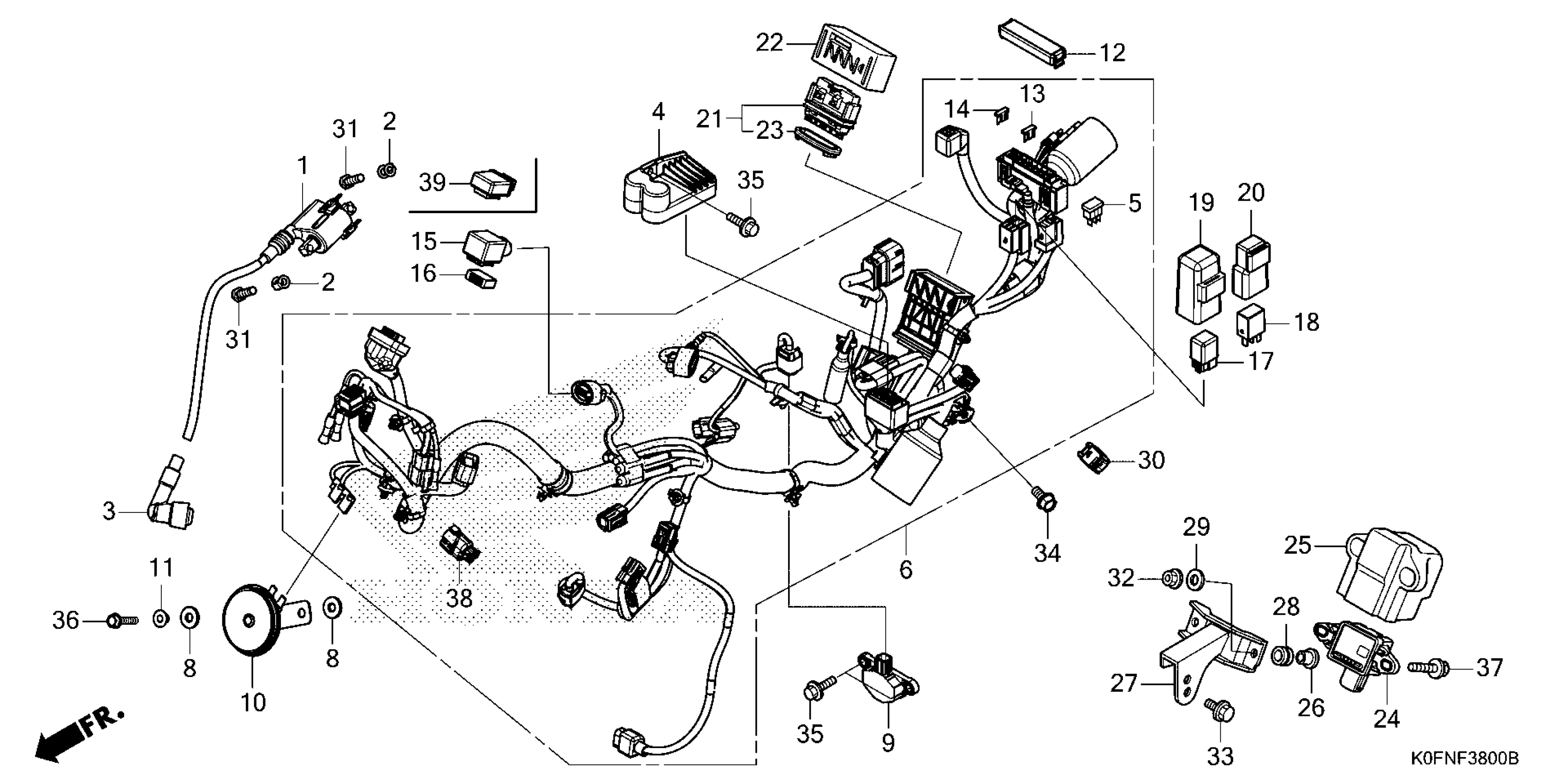

Honda Z125MAAC (25) MOTORCYCLE, THA, VIN# MLHJB055-S5000001 WIRE HARNESS Diagram

COIL, IGNITION

30510-K0F-T61

$24.64

SPACER, IGNITION COIL

30520-GFM-900

$2.61

CAP ASSY., NOISE SUPPRESSOR (NGK)

30700-K03-N51

$12.95

CAP ASSY., NOISE SUPPRESSOR (YASUFUKU)

30700-K03-N52

Unavailable

RECTIFIER, REGULATE

31600-K1M-K31

$70.48

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-K0F-AF0

$436.07

SLIDER

32160-K76-T61

$18.89

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.51

SENSOR ASSY., BANK ANGLE (M6)

35160-KVS-751

$108.46

HORN

38110-K0F-T61

$22.90

COLLAR, HORN SETTING

38117-KYZ-T00

$1.49

COVER ASSY., FUSE BOX

38200-K0F-J11

$57.66

FUSE, BLADE (10A)

38221-SNA-A41

$3.11

FUSE, BLADE (15A)

38221-SNA-A51

$3.72

RELAY, STARTER (HONDALOCK)

38501-KVB-901

$22.10

RELAY ASSY., POWER (MICRO ISO 4P) (MITSUBA)

38501-KVZ-631

$10.74

SUSPENSION, STARTER RELAY (HONDALOCK)

38506-KWW-711

$4.39

SUSPENSION, POWER RELAY (NOT AVAILABLE)

38506-K73-V40

$2.48

UNIT COMP

38770-K0F-AF1

$85.38

SUSPENSION, ENGINE CONTROL UNIT

38771-K76-T60

$3.07

SEAL, RING

38775-K76-T61

$164.95

SENSOR ASSY., GYRO

39960-K26-G51

$434.92

RUBBER, G-SENSOR

39961-K26-C10

$6.59

COLLAR (6.2X5)

50249-K26-C10

$1.49

STAY, INERTIAL MEASUREMENT UNIT

50250-K0F-D10

$42.52

RUBBER, SENSOR MOUNTING

64535-K26-C11

$12.75

WASHER, RR. COVER GROMMET (FOR FR.)

90439-MB0-000

$1.72

CONNECTOR, DUMMY (6P 025M)

91771-MKG-D81

$8.77

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

CAP, DUMMY (2P) (BLUE)

32605-KCW-J91

$5.26

RELAY, TURN SIGNAL

38301-KZZ-J01

$56.87
