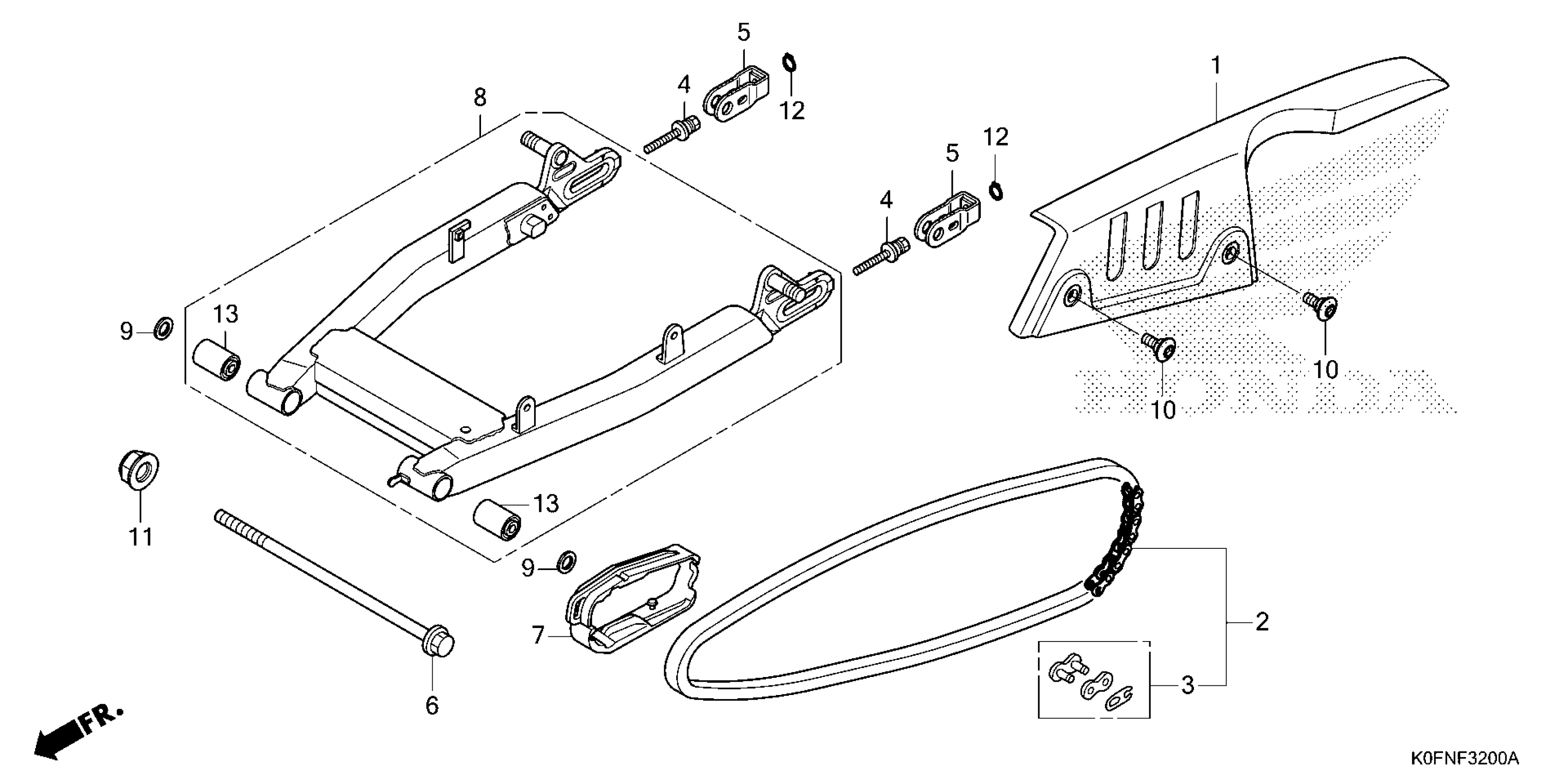

Honda Z125MAAC (25) MOTORCYCLE, THA, VIN# MLHJB055-S5000001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-K0F-T00

$16.98

2

CHAIN, DRIVE

40530-K0F-TE1

$17.84

3

MASTER LINK (DAIDO)

40531-KWV-003

$3.68

4

BOLT, CHAIN ADJUSTING

40542-K0F-T00

$2.44

5

ADJUSTER COMP, CHAIN

40543-K0F-TE0

$5.39

6

BOLT, SWINGARM PIVOT

52101-K0F-T00

$7.86

7

SLIDER, CHAIN

52170-K0F-T00

$9.62

8

SWINGARM SUB *YR344*

52200-K0F-T00ZF

$234.61

8

SWINGARM SUB *R408*

52200-K0F-T00ZG

$213.18

9

WASHER, PIVOT BOLT

90122-KWB-600

$1.49

10

SCREW, PAN (6X14)

90133-KPP-T00

$1.49

11

NUT, U (12MM)

90306-KWN-701

$4.17

12

CIRCLIP (OUTER) (10MM)

94511-10000

$1.49

13

BUSH

52147-KW7-900

$12.80
