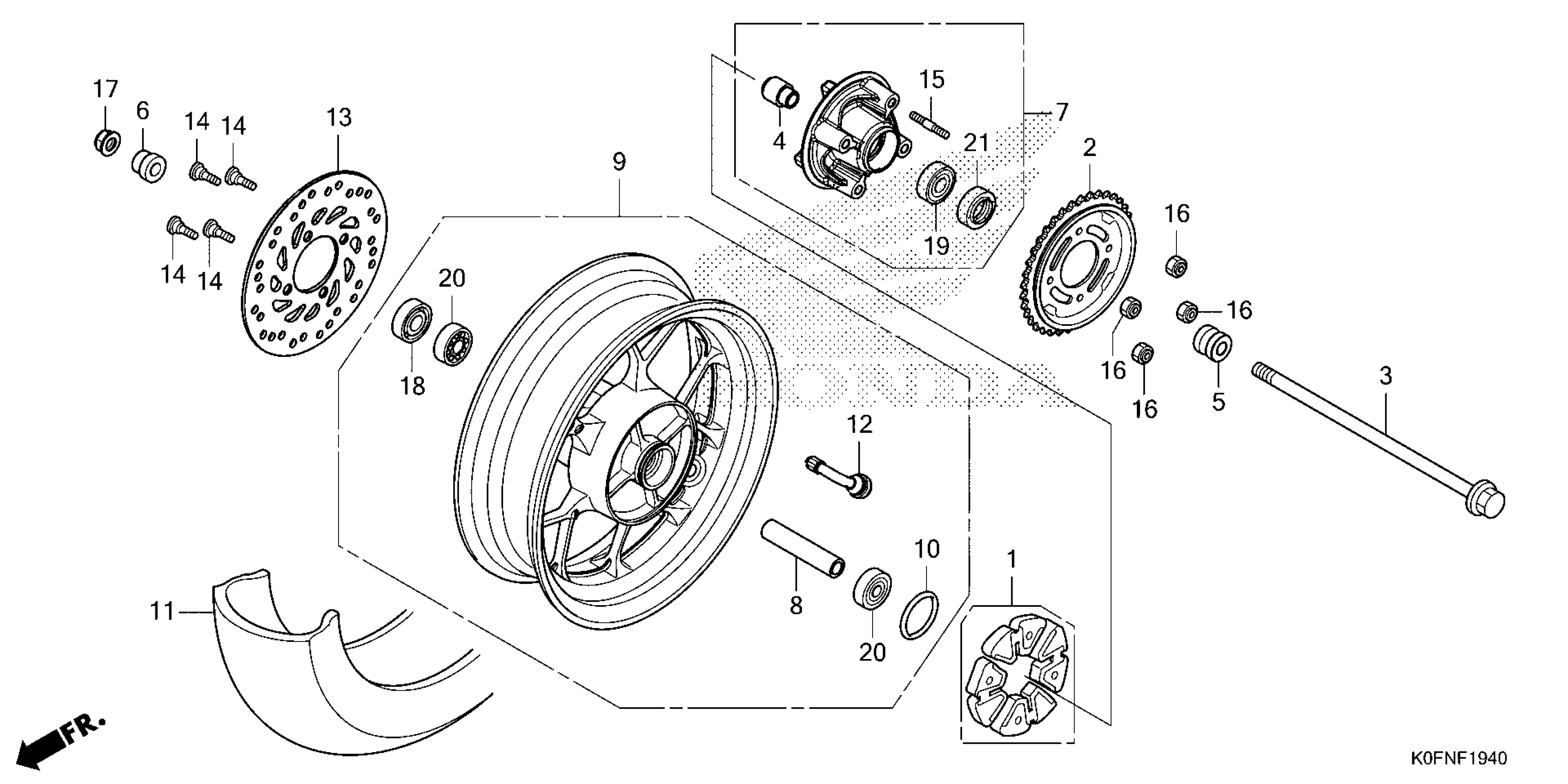

Honda Z125MAAC (25) MOTORCYCLE, THA, VIN# MLHJB055-S5000001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-KWB-600

$8.69

2

SPROCKET (37T)

41200-K0F-T61

$42.15

3

AXLE, RR. WHEEL

42301-K0F-T00

$5.37

4

SLEEVE, RR. WHEEL

42303-KWB-600

$2.76

5

COLLAR, L. RR. WHEEL SIDE

42311-K0F-T00

$14.65

6

COLLAR, R. RR. WHEEL SIDE

42312-K0F-T00

$14.65

7

FLANGE SUB-ASSY., FINAL DRIVEN

42615-K26-G70

$97.81

8

COLLAR, RR. AXLE DISTANCE

42620-K26-900

Unavailable

9

WHEEL SUB *NH303M*

42650-K0F-TE0ZA

$174.01

10

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.21

11

TIRE (130/80-12 69J)

42711-K0F-T03

$52.52

12

VALVE, RIM (DUNLOP) (NOT AVAILABLE)

42753-KJ9-004

$14.92

13

DISK, RR. BRAKE

43251-K26-G01

$42.89

14

BOLT, BRAKE DISK (8X24)

90105-KGH-900

$1.76

15

BOLT, STUD (10X22)

90128-K26-G00

$1.01

16

NUT, U (10MM)

90304-KGH-901

Unavailable

17

NUT, U (12MM)

90306-KWN-701

$3.87

18

OIL SEAL (26X37X6) (ARAI)

90753-051-003

$7.32

19

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V02.

91051-K35-V03

$17.14

19

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-K35-V03

$17.14

20

BEARING, RADIAL BALL (6301U L) (FAG) This part replaces 91053-K03-H01.

91053-K03-H02

Unavailable

20

BEARING, RADIAL BALL (6301U L) (FAG)

91053-K03-H02

Unavailable

21

DUST SEAL (27X40X4.5) (NOK)

91251-KGH-902

$0.91
