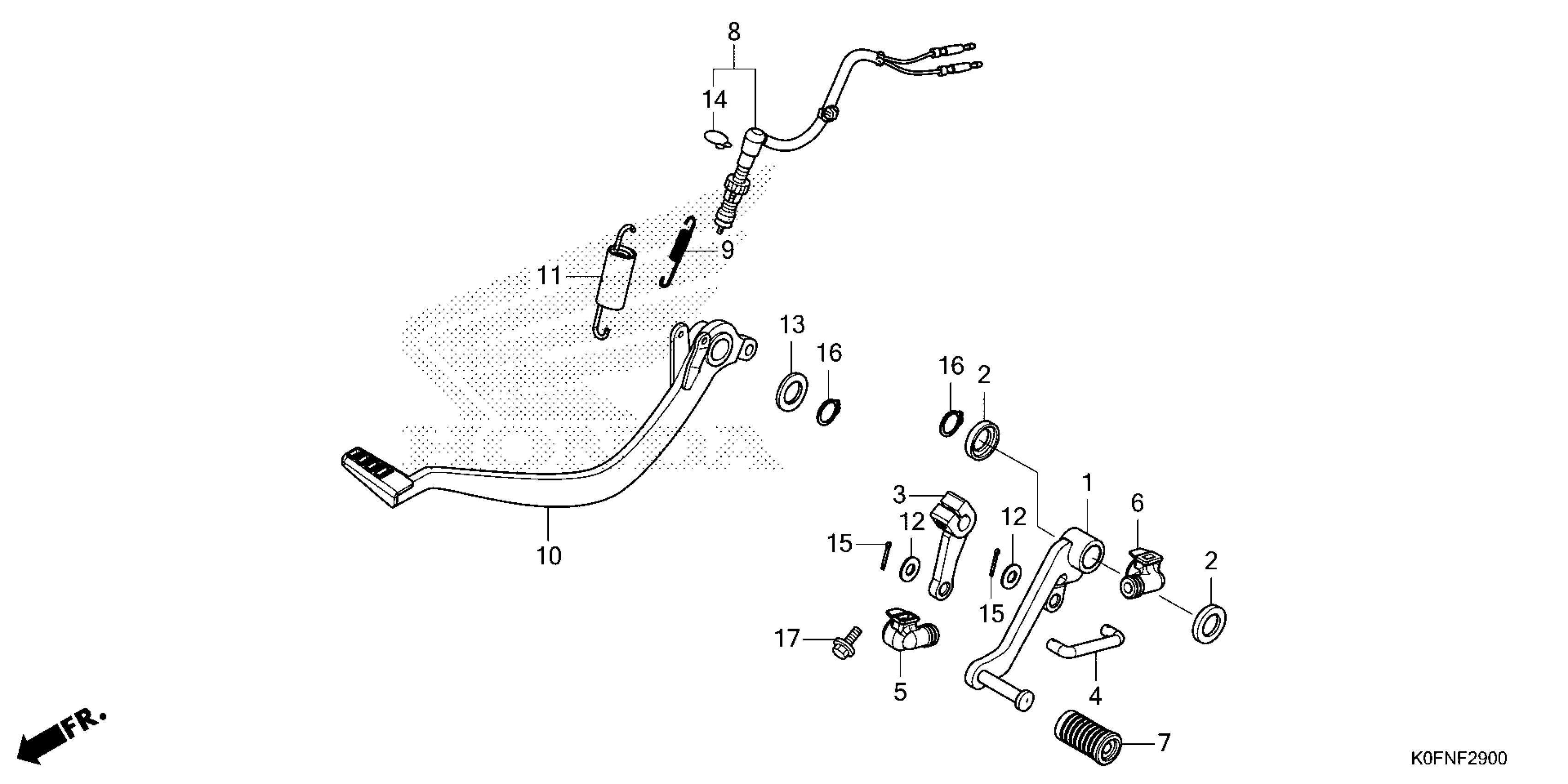

Honda Z125MAAC (25) MOTORCYCLE, THA, VIN# MLHJB055-S5000001 PEDAL Diagram

PEDAL, GEARSHIFT

24701-K0F-T60

$20.55

WASHER, CHANGE PEDAL

24703-KGH-900

$0.83

ARM, GEARSHIFT

24711-K26-900

$5.17

TIE ROD

24720-K26-900

$6.90

COVER, CHANGE PEDAL

24721-K26-900

$3.32

COVER, CHANGE PEDAL

24721-KW6-960

$0.84

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.15

SWITCH ASSY., RR. STOP

35350-K0F-T01

$18.33

SPRING, STOP SWITCH

35357-K26-900

$0.74

PEDAL, BRAKE

46500-K0F-T00

$19.33

SPRING ASSY., BRAKE PEDAL

46513-KPP-900

$1.90

WASHER, PLAIN (7MM) (NOT AVAILABLE)

90502-155-000

$2.33

WASHER (15.2X25)

90557-230-000

$2.17

CLIP, SWITCH COVER

90601-KAF-003

$2.43

PIN, COTTER (2.0X12)

94201-20120

$0.94

CIRCLIP (OUTER) (15MM)

94511-15000

$0.62

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61
