Description

Price

1

GASKET, EX. PIPE

18291-GE2-920

$6.18

2

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$1.90

3

MUFFLLER COMP, EX.

18310-K0F-TE0

$191.18

4

PIPE, EX.

18320-K0F-TE0

$139.56

5

PROTECTOR, EX. PIPE

18325-K0F-T00

$28.44

6

STAY, EX. PIPE

18330-K0F-T60

$18.97

7

RUBBER, MOUNT

18345-K15-920

$2.63

8

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.01

9

PROTECTOR, MUFFLER

18356-K0F-T00

$99.88

10

COVER, TAIL CAP

18358-K0F-T60

$7.07

11

BAND, MUFFLER

18371-K26-900

$34.24

12

GASKET, MUFFLER

18391-HB7-000

$10.68

13

RUBBER, MUFF MT

18421-K0F-T60

$1.85

14

COLLAR, MUFFLER MOUNTING

18422-K26-900

$4.16

15

SCREW, PAN (6X12)

90113-GFP-B00

$3.41

16

SCREW, PAN (6X14)

90113-K15-920

$1.31

17

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.57

18

WASHER, PLAIN (8MM)

94103-08700

$0.87

19

BOLT, FLANGE (8X12)

95701-08012-08

$1.62

20

BOLT, FLANGE (8X18)

95701-08018-08

$1.49

21

BOLT, FLANGE (8X32)

95701-08032-02

$1.21

22

BOLT-WASHER (8X40) This part replaces 95701-08040-07.

90141-GGZ-J00

$2.24

23

BOLT, FLANGE (8X60)

95701-08060-08

$3.19

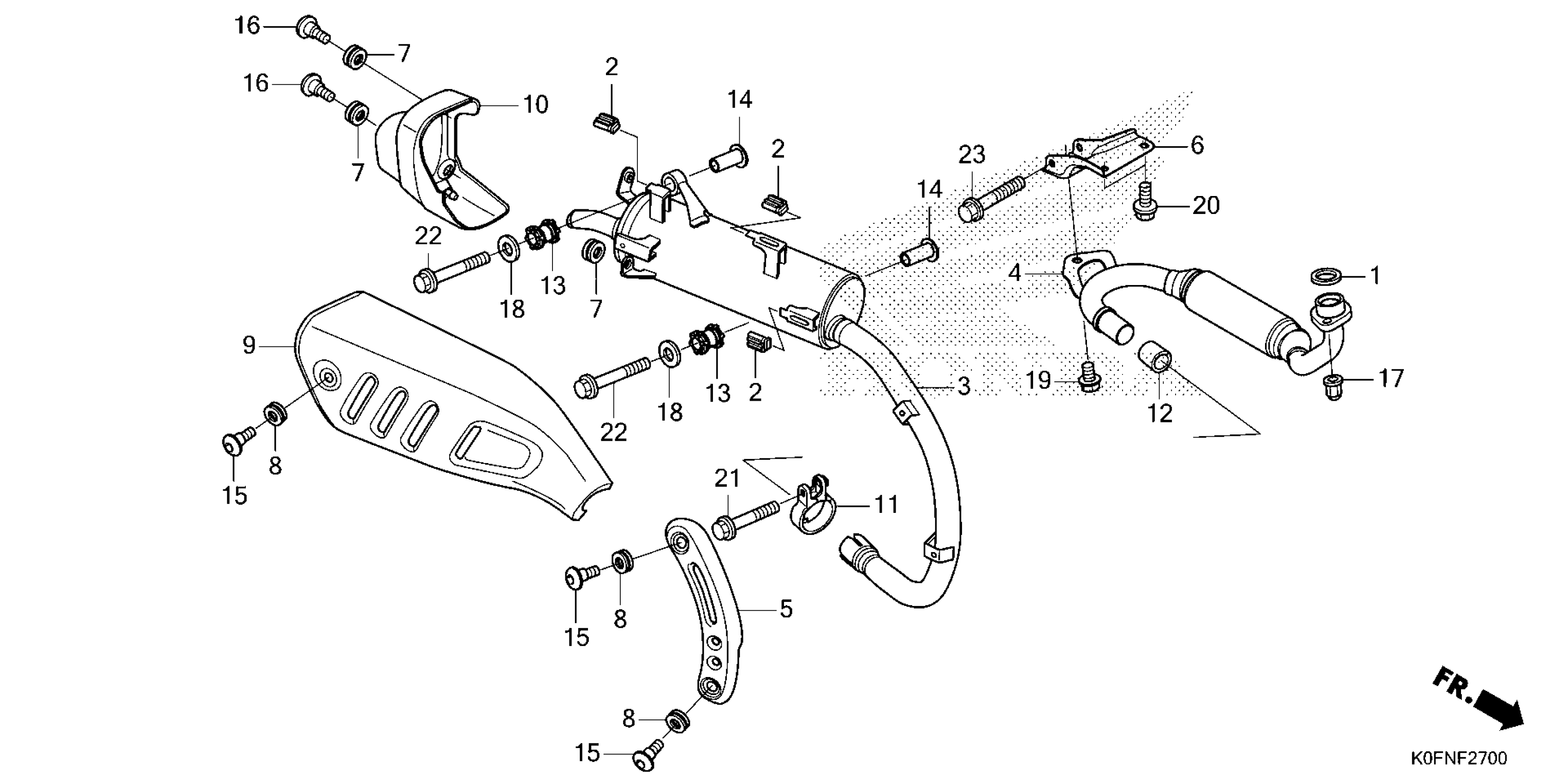

Honda Z125MAAC (25) MOTORCYCLE, THA, VIN# MLHJB055-S5000001 MUFFLER Diagram
