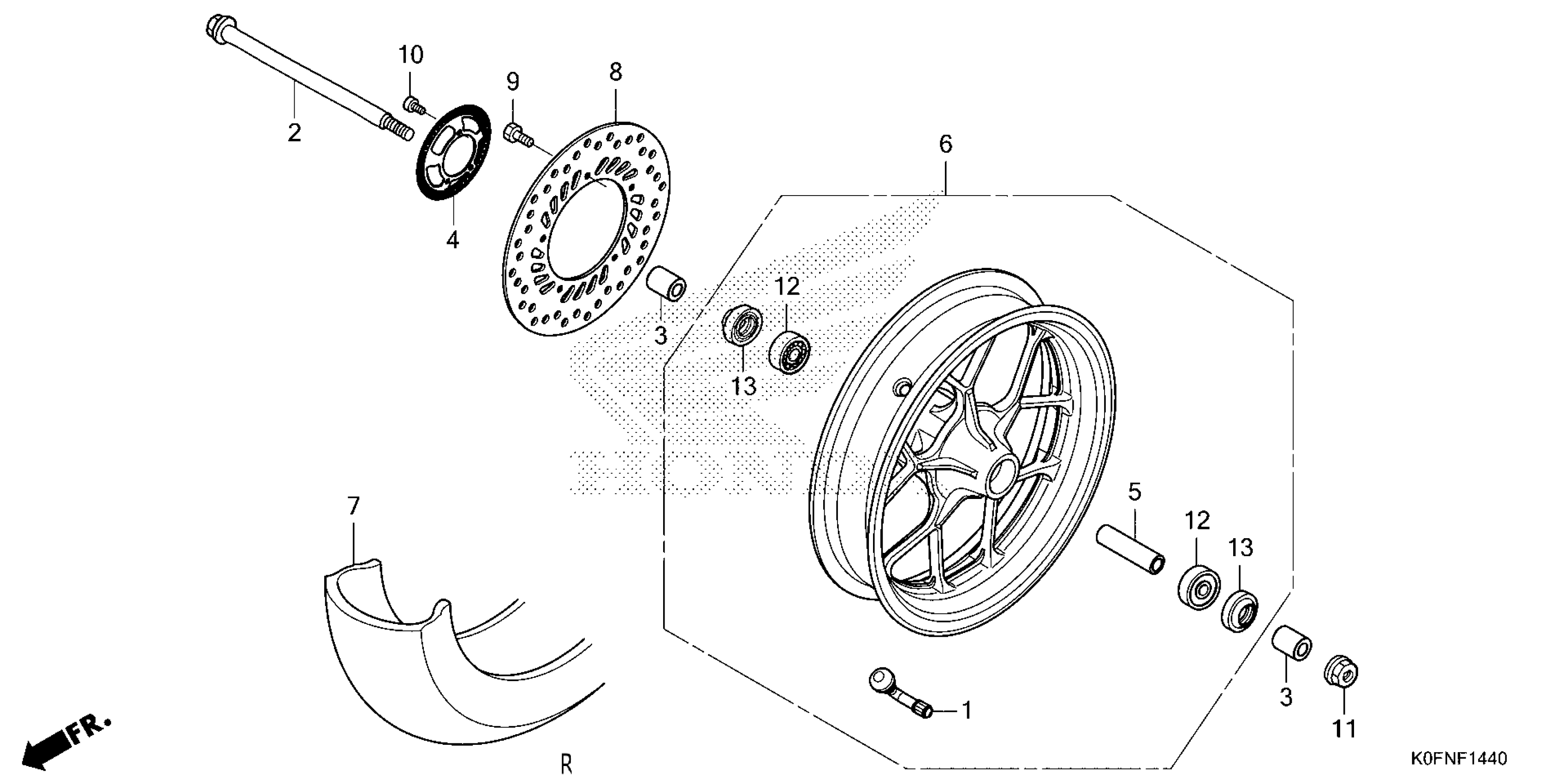

Honda Z125MAAC (25) MOTORCYCLE, THA, VIN# MLHJB055-S5000001 FRONT WHEEL Diagram

VALVE, RIM (IRC)

42753-GM9-743

$7.99

AXLE, FR. WHEEL

44301-K0F-T00

$7.29

COLLAR, R. FR. WHEEL SIDE

44311-K0F-T00

$11.38

RING, FR. PULSER

44515-K26-C10

$24.58

COLLAR, FR. AXLE DISTANCE

44620-K26-900

$4.26

WHEEL SUB *NH303M*

44650-K0F-TF0ZA

$161.97

TIRE (120/80-12 65J)

44711-K0F-T03

$44.90

DISK, FR. BRAKE

45251-K26-C12

$45.95

BOLT, DISK (6X17)

90105-KZZ-900

Unavailable

BOLT, SOCKET (5X10)

90131-K87-L50

$0.53

NUT, U (12MM)

90306-KWN-701

$3.87

BEARING, RADIAL BALL (6301U L) (FAG) This part replaces 91053-K03-H01.

91053-K03-H02

Unavailable

BEARING, RADIAL BALL (6301U L) (FAG)

91053-K03-H02

Unavailable

DUST SEAL (23X37X7) (NOK)

91252-KGH-902

$1.22
