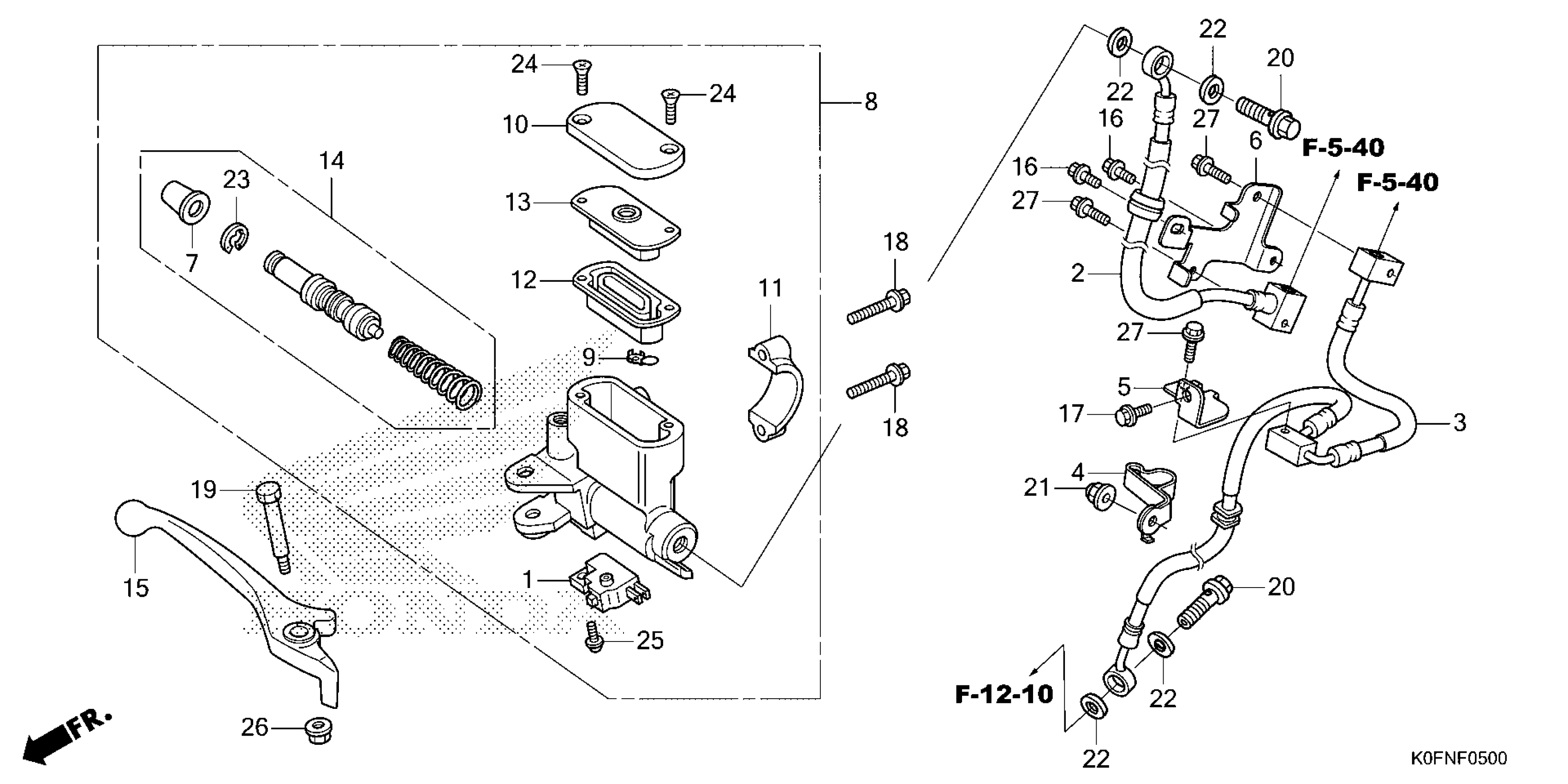

Honda Z125MAAC (25) MOTORCYCLE, THA, VIN# MLHJB055-S5000001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

HOSE A, FR. BRAKE

45125-K0F-A11

$25.97

3

HOSE B, FR. BRAKE

45128-K0F-A11

$54.01

4

CLAMP A, FR. BRAKE HOSE

45156-K0F-D10

$8.84

5

STAY B, FR. BRAKE HOSE

45157-K0F-D10

$15.21

6

STAY C, FR. BRAKE HOSE

45158-K0F-D10

$15.87

7

BOOT

45504-410-003

$11.17

8

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-K0F-A01

$100.84

9

PROTECTOR

45512-MA6-006

$4.09

10

CAP, MASTER CYLINDER

45513-KWN-671

$18.09

11

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

12

DIAPHRAGM

45520-GW0-911

$6.95

13

PLATE, DIAPHRAGM

45521-GW0-911

$5.47

14

MASTER CYLINDER SET

45530-471-831

$36.42

15

LEVER, R. HANDLEBAR (COO)

53175-K26-305

Unavailable

15

LEVER, R. HANDLEBAR (COO) This part replaces 53175-K26-901.

53175-K26-305

Unavailable

16

BOLT, FLANGE (6X10)

90013-GHB-600

$4.13

17

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.15

18

BOLT, FLANGE (6X22)

90013-GHB-660

$2.15

19

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$0.90

20

BOLT, OIL (10X22) (NISSIN)

90145-KPH-B30

$1.66

21

NUT, CAP (6MM)

90304-GFM-970

$2.85

22

WASHER, OIL BOLT

90545-300-000

$5.79

23

CIRCLIP

90651-MA5-671

$2.38

24

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

24

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

25

SCREW-WASHER (4X12)

93893-04012-07

$1.32

25

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

26

NUT, FLANGE (6MM)

94050-06000

$0.60

27

BOLT, FLANGE (6X18)

96001-06018-07

$1.16
