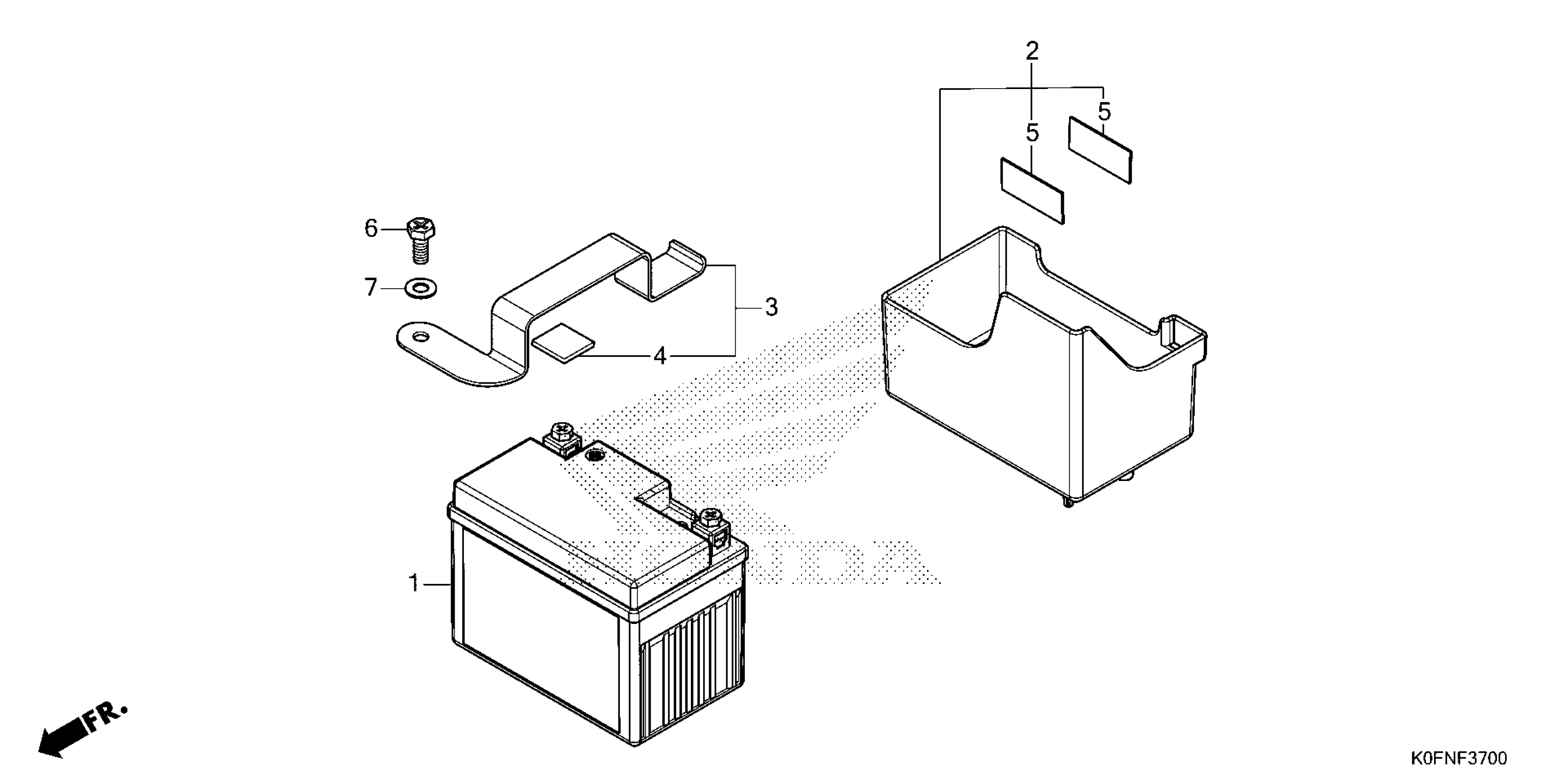

Honda Z125MAAC (25) MOTORCYCLE, THA, VIN# MLHJB055-S5000001 BATTERY Diagram

#

Description

Price

1

BATTERY (YTZ5S) (YUASA) (MSDS) This part replaces 31500-K26-911.

31500-K26-911AH

$103.31

2

BOX, BATTERY

50381-K0F-T60

$18.38

3

BAND, BATTERY

50386-K0F-T00

$11.13

4

CUSHION, BATTERY

50387-K0F-T00

$1.69

5

RUBBER, PROTECTOR

81257-KZR-600

$2.43

6

BOLT, RECESSED (6X14)

92301-06014-0A

$1.37

7

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

7

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

7

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable
