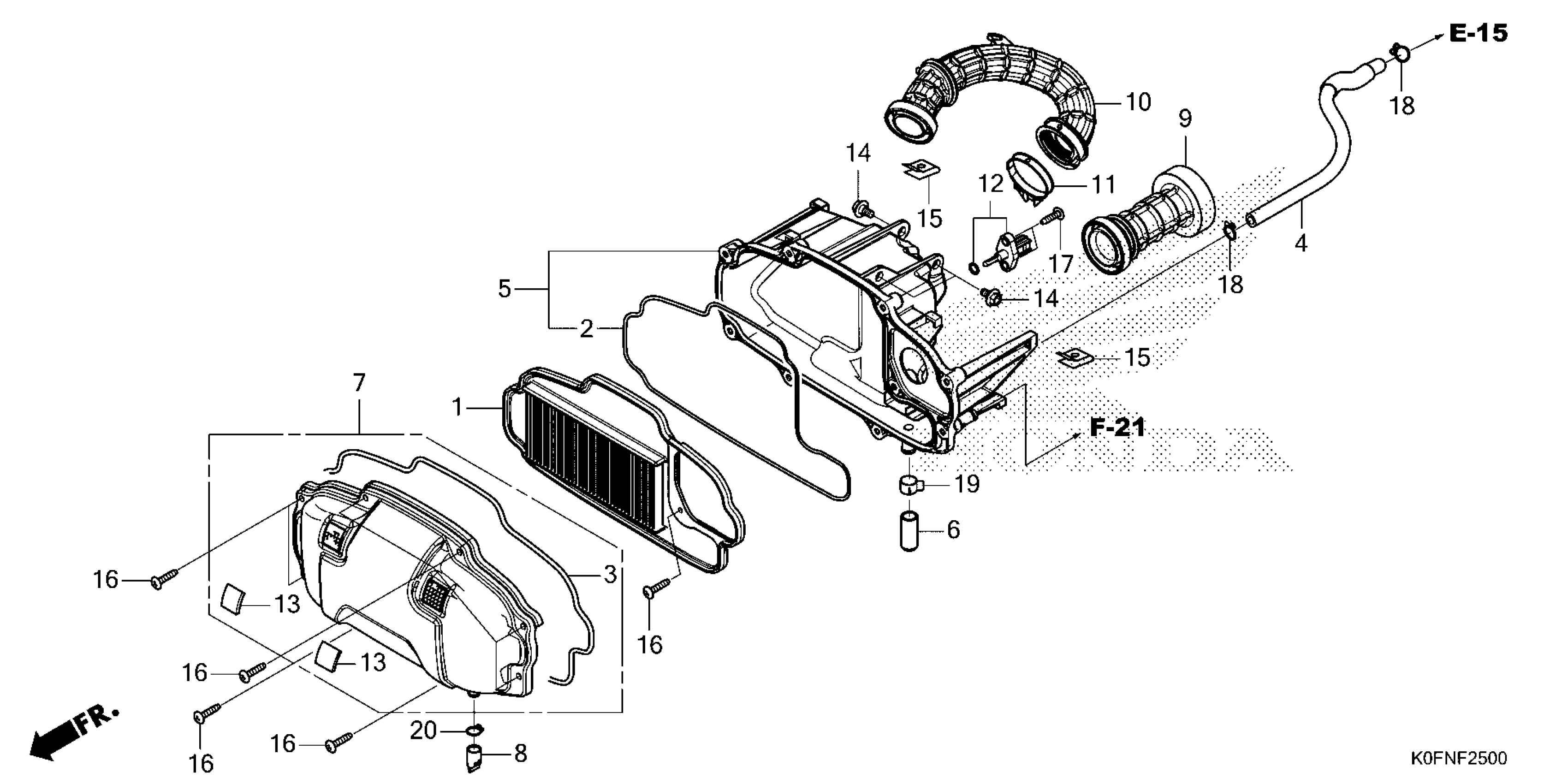

Honda Z125MAAC (25) MOTORCYCLE, THA, VIN# MLHJB055-S5000001 AIR CLEANER Diagram

ELEMENT, AIR CLEANER

17210-K0F-T00

$6.92

SEAL, AIR CLEANER

17212-KWN-900

$1.42

SEAL, AIR CLEANER COVER

17214-K0F-T00

$2.16

TUBE, BREATHER

17218-K0F-T60

$7.93

CASE SUB-ASSY.

17225-K0F-J70

Unavailable

TUBE, VINYL (11X15X35)

17227-KPK-900

$2.65

CVR SUB, A/CLNR

17235-K0F-T60

$11.45

PLUG, AIR CLEANER DRAIN

17236-KVB-900

$1.00

DUCT, AIR CLEANER

17241-K0F-T60

$15.17

TUBE

17253-K0F-T60

$27.20

BAND, CONNECTING TUBE (44)

17254-K26-900

$3.71

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$40.03

CUSHION, BATTERY

50387-K0F-T00

$1.67

BOLT, FLANGE (6MM)

90116-KVB-900

$0.90

NUT, SPRING (4MM)

90302-KWW-A00

Unavailable

SCREW, TAPPING (5X25)

93903-25580

$1.00

SCREW, TAPPING (5X20)

93913-255J0

$1.57

CLIP, TUBE (B12.5)

95002-02130

$1.04

CLAMP, TUBE (D13)

95002-41300-08

$2.80

CLIP, TUBE (C12)

95002-80000

$0.42
