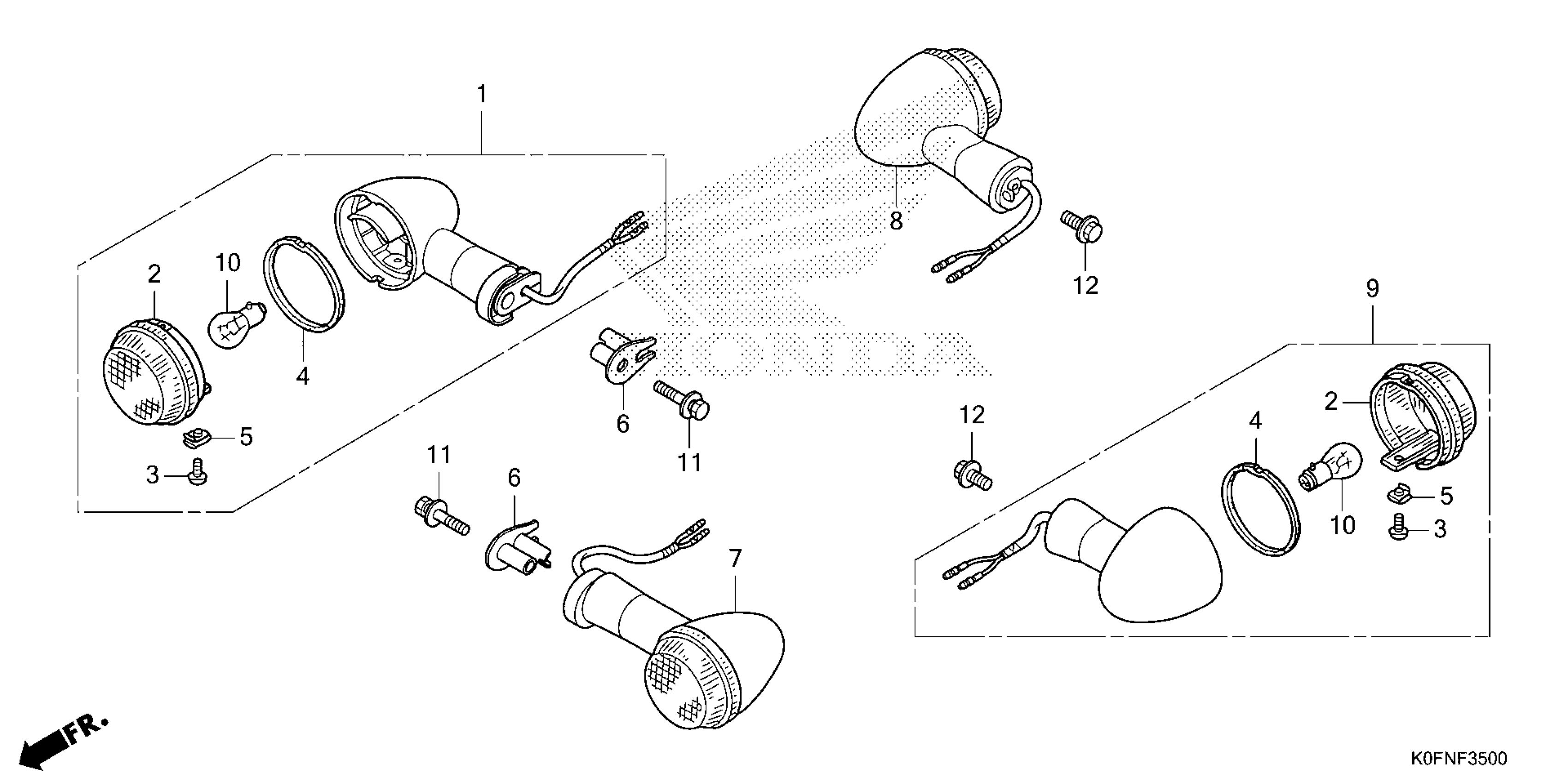

Honda Z125MAAC (22) MOTORCYCLE, THA, VIN# MLHJB035-N5000001 TO MLHJB035-N5099999 TURN SIGNAL (1) Diagram

#

Description

Price

1

TURN SIGNAL ASSY., R. FR. (12V 21W)

33400-K0F-A02

$281.36

2

LENS, TURN SIGNAL

33401-MBA-613

$9.54

3

SCREW, SPECIAL (4X8)

33403-MBA-611

$1.49

4

GASKET, LENS

33407-MBA-611

$3.15

5

NUT, CLIP

33408-MBA-611

$2.11

6

COLLAR, TURN SIGNAL

33411-K0F-T00

$3.46

7

TURN SIGNAL ASSY., L. FR. (12V 21W)

33450-K0F-A02

$281.36

8

TURN SIGNAL ASSY., R. RR. (12V 21W)

33600-K0F-A02

$160.07

9

TURN SIGNAL ASSY., L. RR. (12V 21W)

33650-K0F-A02

$166.20

10

BULB (12V 21W) (ECE) (STANLEY) (RR.)

34908-634-611

$5.88

11

BOLT-WASHER (5X30)

93411-05030-00

$1.49

12

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
