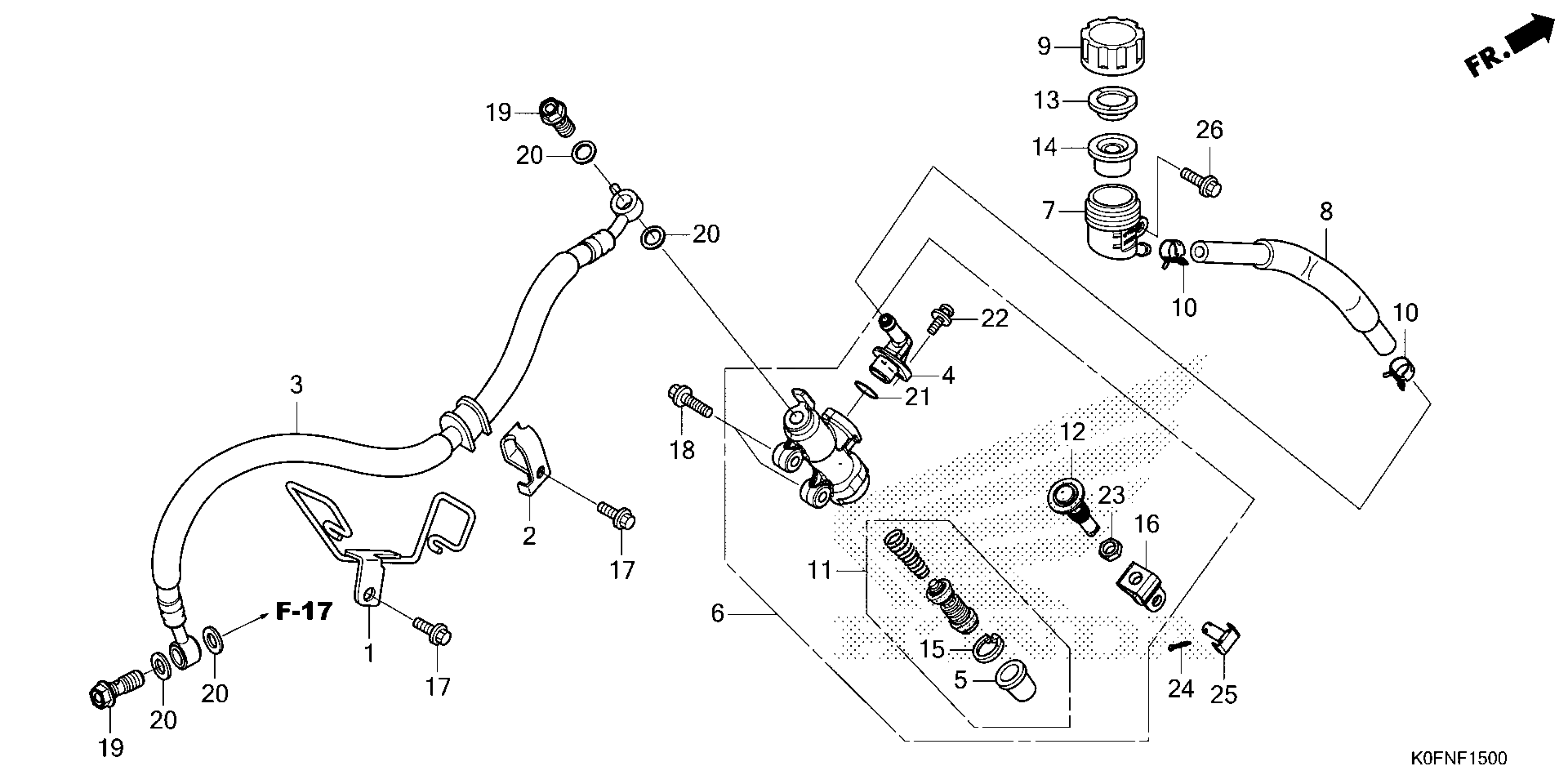

Honda Z125MAAC (22) MOTORCYCLE, THA, VIN# MLHJB035-N5000001 TO MLHJB035-N5099999 REAR BRAKE MASTER CYLINDER Diagram

CLAMP, RR. BRAKE HOSE

43155-K0F-T00

$7.43

CLAMP, RR. BRAKE HOSE

43156-K0F-T00

$3.14

HOSE, RR. BRAKE

43310-K0F-T01

$17.52

CONNECTOR

43503-MR7-006

$12.51

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-K26-B01

$86.94

CUP, MASTER CYLINDER OIL

43511-K1N-V01

$3.78

HOSE, RR. MASTER CYLINDER

43512-K0F-T01

$13.94

CAP, MASTER CYLINDER

43513-KWN-671

$7.51

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$40.74

ROD, PUSH

43530-KV3-831

$20.78

PLATE, DIAPHRAGM

45518-GM9-711

$4.16

DIAPHRAGM

45520-GM9-711

$8.22

CIRCLIP

46182-MEL-D21

$1.77

JOINT, BRAKE ROD

46504-KV6-702

$7.30

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.12

BOLT, FLANGE (6X22) (SH)

90101-K26-B00

$0.64

BOLT, OIL (10X22) (NISSIN)

90145-KPH-B30

$1.64

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, COTTER (2.0X12)

94201-20120

$0.94

PIN D, JOINT

95015-54000

$3.95

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91
