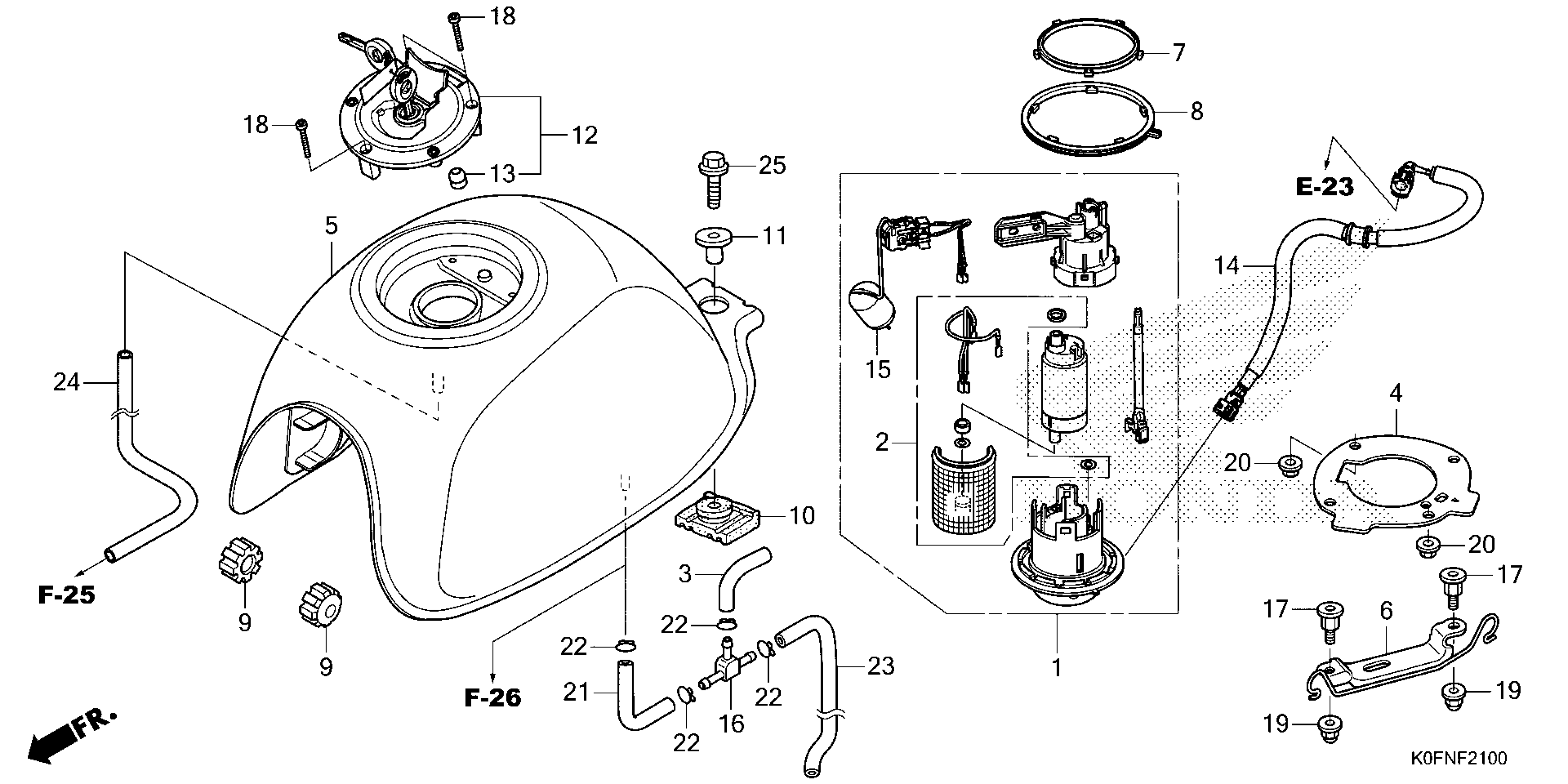

Honda Z125MAAC (22) MOTORCYCLE, THA, VIN# MLHJB035-N5000001 TO MLHJB035-N5099999 FUEL TANK Diagram

PUMP ASSY., FUEL (MSDS)

16700-K0F-T01

$136.87

FILTER SET

16707-K45-N01

$21.11

PLATE, SETTING

17507-K0F-T00

$5.23

TANK, FUEL (TYPE4)

17520-K0F-T60ZJ

$605.46

TANK, FUEL (TYPE1)

17520-K0F-T60ZM

$605.46

BRACKET, FUEL PUMP

17542-K0F-T00

$4.86

GASKET, FUEL PUMP

17572-GHB-613

$15.30

DUST SEAL

17573-KPN-A71

$11.23

CUSHION, FR. FUEL TANK

17611-KE8-000

$3.92

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$3.92

RUBBER, RR. FUEL TANK

17613-GAA-000

$10.75

COLLAR

17614-K0F-T60

$2.43

CAP COMP This part replaces 17620-K0F-T02.

17620-K0F-T03

$202.94

CAP COMP

17620-K0F-T03

$202.94

SEAL, BREATHER

17621-MGP-D62

$4.78

HOSE, FUEL FEED

17650-K0F-T61

$20.42

FUEL UNIT

37800-K0F-T01

$36.72

BOLT, SPECIAL (6MM)

90101-K26-900

$2.65

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$0.87

NUT, CAP (6MM)

90201-415-000

$1.96

NUT, FLANGE (6MM)

94050-06000

$0.59

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$21.47

BOLT, FLANGE (8X28)

95701-08028-07

Unavailable
