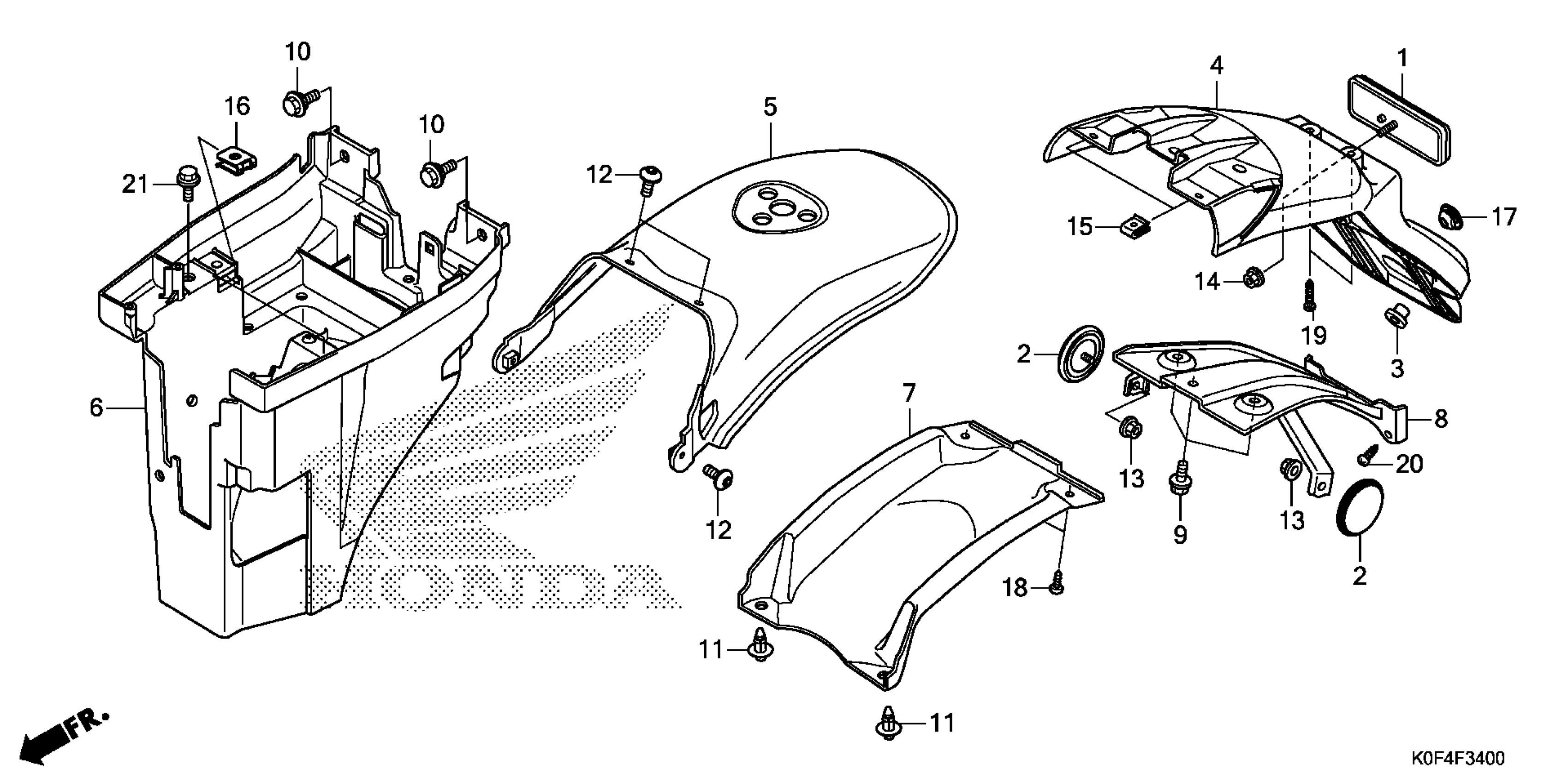

Honda Z125MAAC (21) MOTORCYCLE, THA, VIN# MLHJB025-M5200001 REAR FENDER Diagram

#

Description
Price

1

REFLECTOR, REFLEX

33741-KPL-902

$7.58

2

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

3

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$5.12

4

FENDER A, RR.

80100-K0F-T00

$16.49

5

FENDER B, RR.

80101-K0F-T00

$192.39

6

FENDER ASSY. C, RR.

80102-K0F-T00

$26.33

7

FENDER D, RR.

80104-K0F-T00

$5.23

8

BRACKET, RR. FENDER

80105-K0F-T00

$53.75

9

BOLT, FLANGE (6X10)

90102-KGH-900

$1.49

10

BOLT, FLANGE (6MM)

90111-162-000

$2.89

11

RIVET, PUSH (7MM)

90116-KWT-900

$2.70

12

SCREW, PAN (6X10)

90132-KPP-T00

$1.49

13

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

14

NUT, U (5MM)

90301-KWN-901

$1.49

15

NUT, SPRING (4MM)

90302-KWW-A00

$1.49

16

NUT, CLIP (6MM)

90305-KWW-A00

$2.67

17

PLUG, HOLE

90852-KPP-T00

$1.66

18

SCREW, TAPPING (4X12)

93903-24380

$1.49

19

SCREW, TAPPING (4X16)

93903-34420

$1.49

20

SCREW, TAPPING (4X12)

93903-34380

$2.18
