Description

Price

1

LOCK SET This part replaces 35010-K0F-A01.

35010-K0F-A02

$424.51

1

LOCK SET

35010-K0F-A02

$424.51

2

SWITCH ASSY., COMBINATION & LOCK

35100-K0F-A01

$262.97

3

BASE, CONTACT

35101-K0F-T01

$65.77

5

KEY, BLANK | (Optional).

35121-K0F-T01

$27.39

6

HANDLEBAR

53100-K0F-T00

$57.61

7

WEIGHT A, HANDLE

53102-K0F-T00

$6.40

8

HOLDER, HANDLE (UPPER)

53130-K0F-T00

$50.54

9

HOLDER, HANDLE (LOWER)

53132-K0F-T00

$30.25

10

RUBBER, HANDLE CUSHION

53133-K26-900

$1.66

11

STAY, METER

61350-K0F-T00

$11.44

14

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

15

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

16

SCREW, PAN (6X14)

90118-MGZ-D80

$1.49

17

BOLT, FLANGE SOCKET (8X32)

90160-K26-900

$1.49

18

SCREW, OVAL (6X45)

90191-K29-900

$2.62

19

NUT, U (8MM)

90304-KPG-901

$1.49

20

NUT, STEERING STEM

90305-KGH-900

$4.58

21

WASHER, STEERING STEM

90503-KGA-900

$1.54

22

WASHER, HANDLE HOLDER (LOWER)

90535-K26-900

$2.67

23

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

24

CAP, SOCKET BOLT (8MM)

91455-KEA-000

$3.72

25

BOLT, SOCKET (8X35)

96700-08035-00

$1.54

26

BRIDGE, FORK TOP

53230-K0F-T00

$104.80

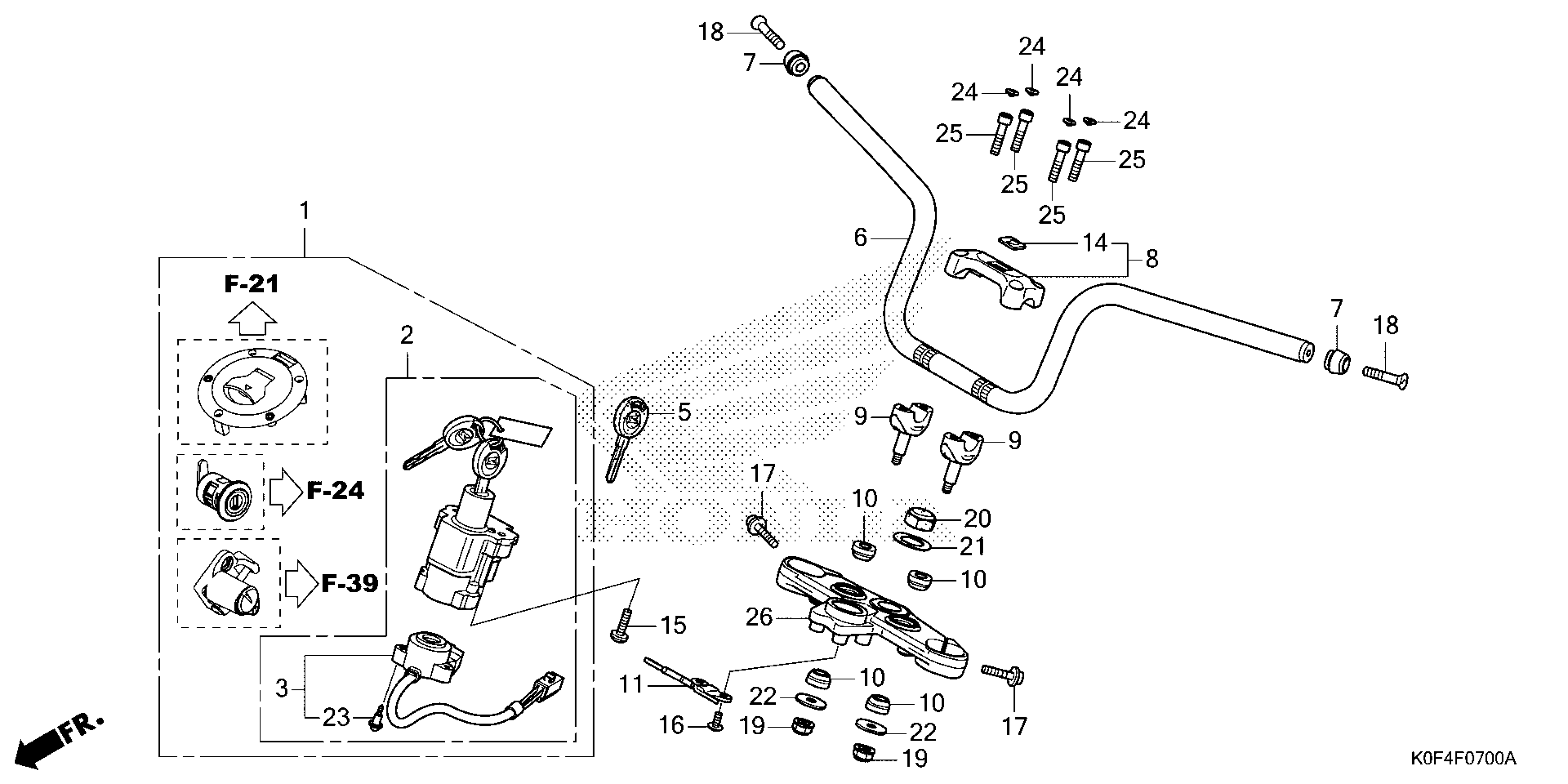

Honda Z125MAAC (21) MOTORCYCLE, THA, VIN# MLHJB025-M5200001 HANDLEBAR Diagram

LOCK SET This part replaces 35010-K0F-A01.

LOCK SET

SWITCH ASSY., COMBINATION & LOCK

BASE, CONTACT

KEY, BLANK | (Optional).

HANDLEBAR

WEIGHT A, HANDLE

HOLDER, HANDLE (UPPER)

HOLDER, HANDLE (LOWER)

RUBBER, HANDLE CUSHION

STAY, METER

EMBLEM, PRODUCT (MARUI)

BOLT, ONE-WAY (8MM)

SCREW, PAN (6X14)

BOLT, FLANGE SOCKET (8X32)

SCREW, OVAL (6X45)

NUT, U (8MM)

NUT, STEERING STEM

WASHER, STEERING STEM

WASHER, HANDLE HOLDER (LOWER)

SCREW, TAPPING (3X16)

CAP, SOCKET BOLT (8MM)

BOLT, SOCKET (8X35)

BRIDGE, FORK TOP
