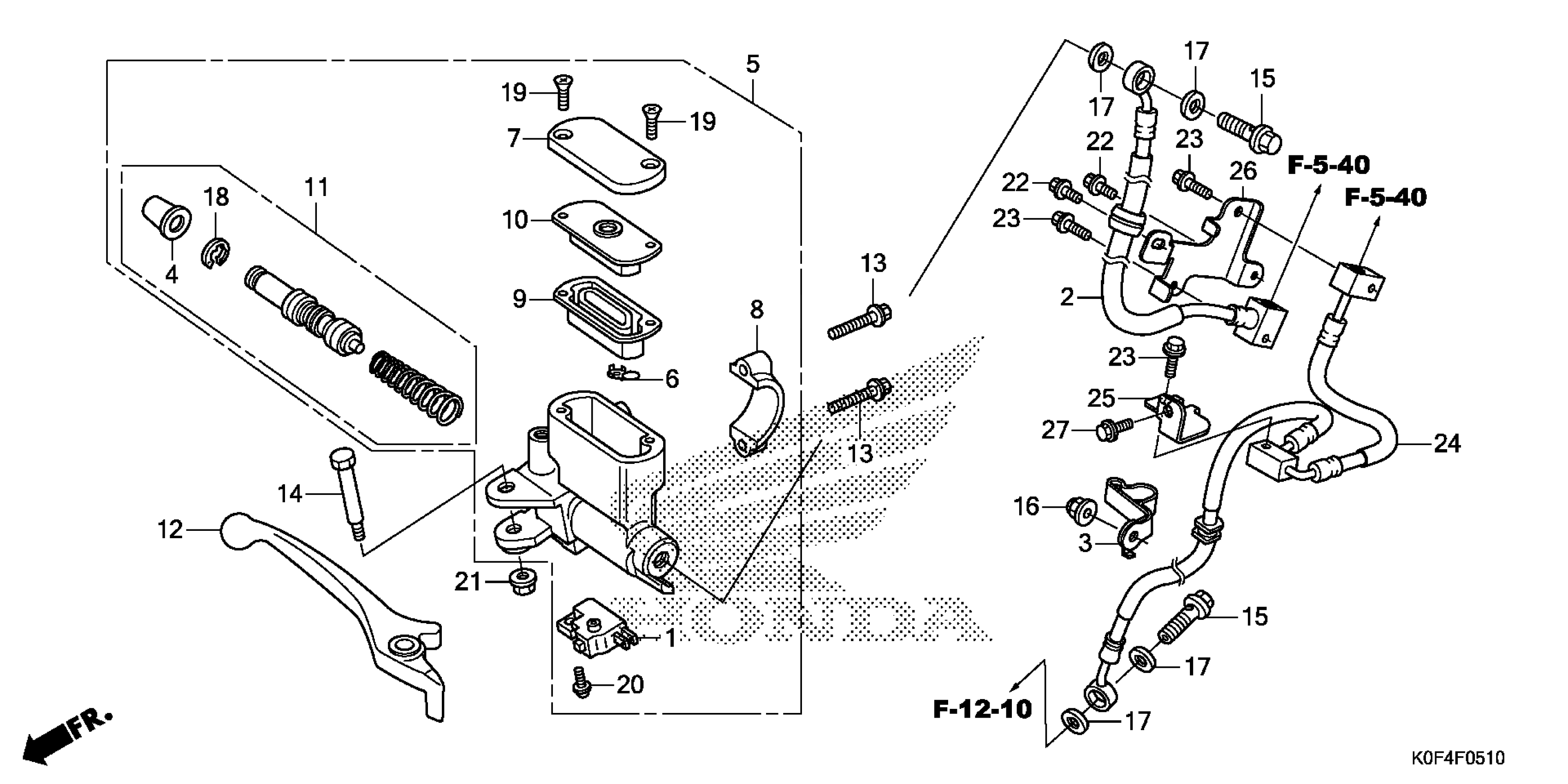

Honda Z125MAAC (21) MOTORCYCLE, THA, VIN# MLHJB025-M5200001 FRONT BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.62

2

HOSE A, FR. BRAKE

45125-K0F-A11

$25.59

3

CLAMP A, FR. BRAKE HOSE

45156-K0F-D10

$8.71

4

BOOT

45504-410-003

$10.93

5

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-K0F-A01

$99.38

6

PROTECTOR

45512-MA6-006

$3.99

7

CAP, MASTER CYLINDER

45513-KWN-671

$17.83

8

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

9

DIAPHRAGM

45520-GW0-911

$6.78

10

PLATE, DIAPHRAGM

45521-GW0-911

$5.34

11

MASTER CYLINDER SET

45530-471-831

Unavailable

12

LEVER, R. HANDLEBAR (COO)

53175-K26-305

Unavailable

12

LEVER, R. HANDLEBAR (COO) This part replaces 53175-K26-901.

53175-K26-305

Unavailable

13

BOLT, FLANGE (6X22)

90013-GHB-660

$2.12

14

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$0.88

15

BOLT, OIL (10X22) (NISSIN)

90145-KPH-B30

$1.64

16

NUT, CAP (6MM)

90304-GFM-970

$2.80

17

WASHER, OIL BOLT

90545-300-000

$3.72

18

CIRCLIP

90651-MA5-671

$2.38

19

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

19

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

20

SCREW-WASHER (4X12)

93893-04012-07

$1.22

20

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

21

NUT, FLANGE (6MM)

94050-06000

$0.59

22

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

23

BOLT, FLANGE (6X18)

96001-06018-07

$1.14

24

HOSE B, FR. BRAKE

45128-K0F-A11

$53.23

25

STAY B, FR. BRAKE HOSE

45157-K0F-D10

$14.99

26

STAY C, FR. BRAKE HOSE

45158-K0F-D10

$15.64

27

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable
