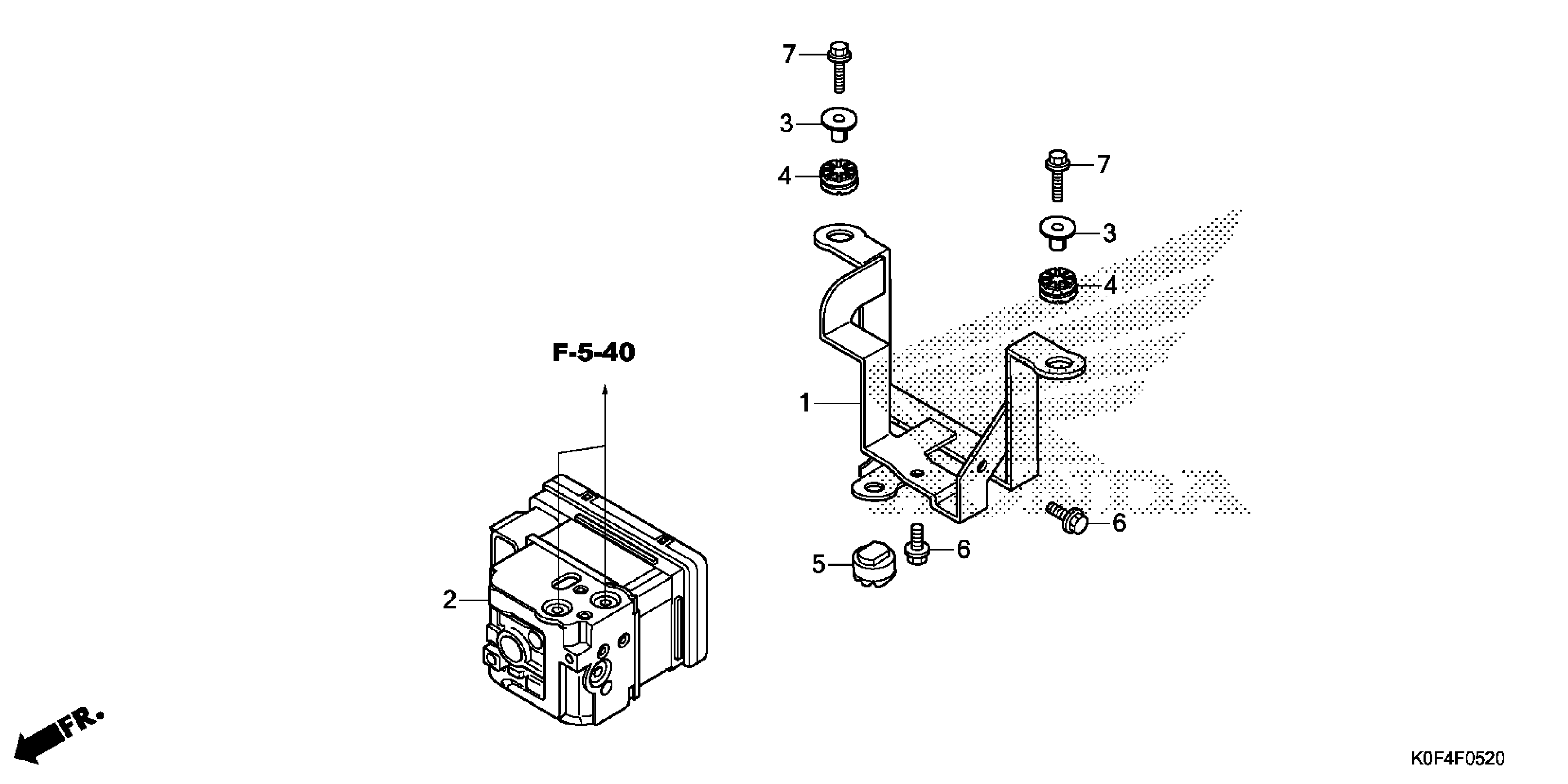

Honda Z125MAAC (21) MOTORCYCLE, THA, VIN# MLHJB025-M5200001 ABS MODULATOR Diagram

#

Description

Price

1

BRACKET, ABS MODULATOR

50245-K0F-T00

$29.41

2

MODULATOR ASSY.

57110-K0F-D11

$1,065.38

3

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$3.73

4

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.05

5

RUBBER B, SEAT SETTING

77214-KPH-900

$1.16

6

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

7

BOLT, FLANGE (6X22)

95701-06022-08

$1.64
