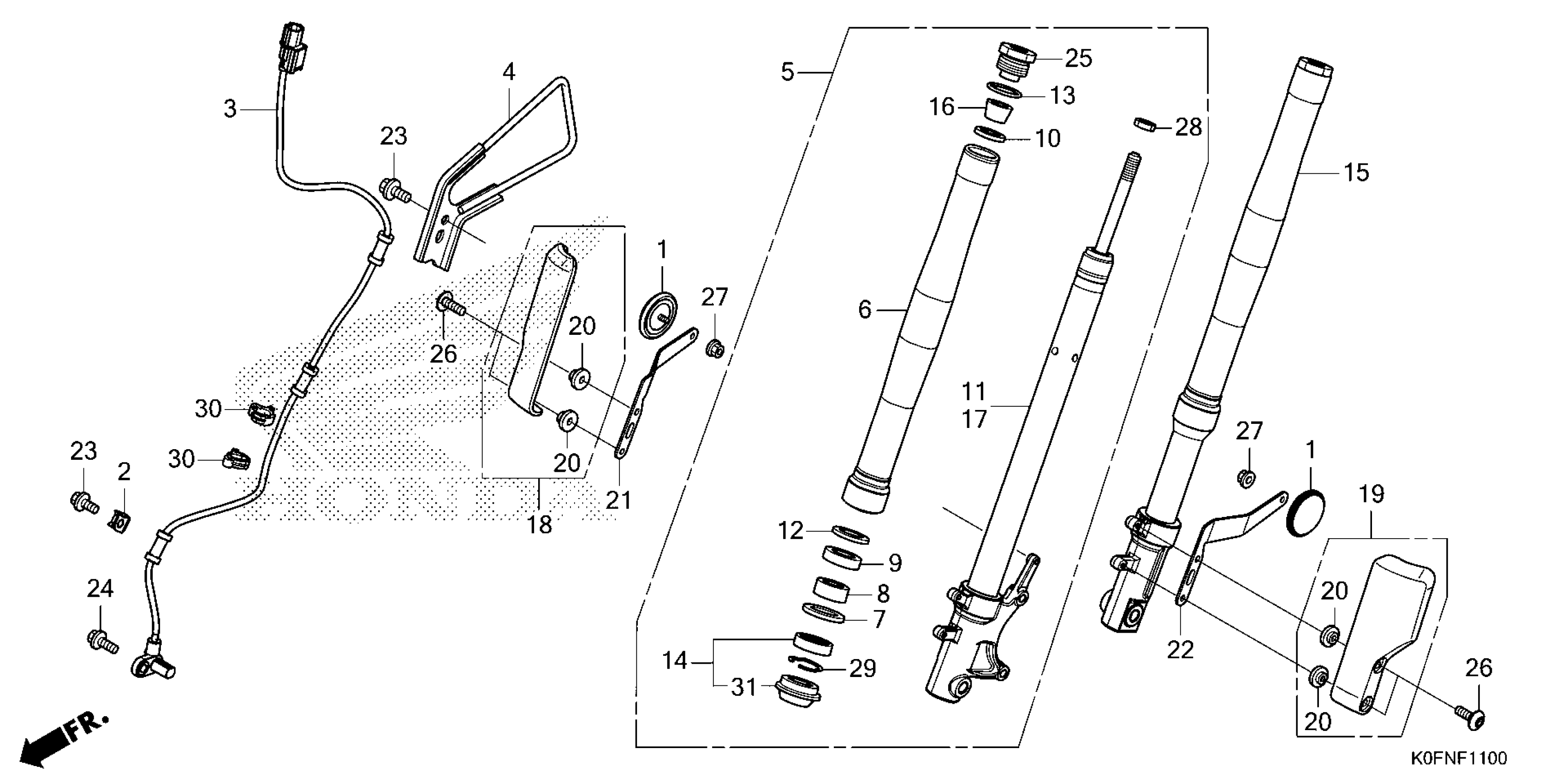

Honda Z125MA2AC (24) MOTORCYCLE, THA, VIN# MLHJB035-R5200001 FRONT FORK Diagram

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$6.36

GUIDE, SENSOR WIRE

38515-K26-C10

$3.15

SENSOR, FR.

38520-K0F-D71

$25.90

GUIDE, FR. BRAKE HOSE

45155-K0F-T00

$15.28

FORK, R. FR. (TYPE1)

51400-K0F-A71ZA

$430.57

FORK, R. FR. (TYPE1)

51400-K0F-D71ZA

$449.92

FORK, R. FR. (TYPE1)

51400-K0F-J71ZA

$430.57

TUBE (OUTER) (GOLD)

51410-K0F-A01

$171.31

TUBE (OUTER) (RED)

51410-K0F-J01

$171.31

TUBE (OUTER)

51410-K0F-T01

$146.72

RING, BACK-UP (SHOWA)

51412-KK4-003

$6.60

BUSH, GUIDE

51414-K0F-T01

$10.00

BUSH, SLIDER

51415-K20-901

$21.38

SEAT

51419-K20-T21

$1.97

DAMPER, R. FR.

51425-K0F-D71

$216.26

RING B, PISTON

51438-K20-901

$15.68

O-RING

51458-K20-901

$13.86

SEAL SET, FR. FORK (SHOWA)

51490-KRM-852

$21.04

FORK, L. FR. (TYPE1)

51500-K0F-A61ZA

$410.69

FORK, L. FR. (TYPE1)

51500-K0F-T61ZA

$438.51

FORK, L. FR. (TYPE1)

51500-K0F-V61ZA

$429.15

RUBBER, STOPPER

51517-K20-T21

$2.21

DAMPER, L. FR.

51525-K0F-T61

$211.69

COVER, R. FR. FORK (TYPE1) (WL)

51650-K0F-D10ZA

$16.79

COVER, L. FR. FORK

51620-K0F-T00

$20.59

COLLAR, FR. FENDER

61101-KZZ-900

$1.49

STAY, R. FR. REFLECTOR

61102-K0F-A00

$21.08

STAY, L. FR. REFLECTOR

61103-K0F-A00

$21.08

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

BOLT, FLANGE (6X14) (NOT AVAILABLE)

90117-KZZ-J80

$1.49

BOLT, FR. FORK

90123-K20-T21

$22.95

SCREW, PAN (6X18)

90130-K26-900

$1.49

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

NUT, LOCK (12MM) (SOURCE: VINTAGE PARTS INC.)

90301-MB9-950

$3.11

RING, OIL SEAL STOP (SHOWA)

90601-354-000

$5.13

CLIP, CABLE (14MM)

90690-MCA-003

$1.77

DUST SEAL (SHOWA)

91254-GAA-003

$17.00
