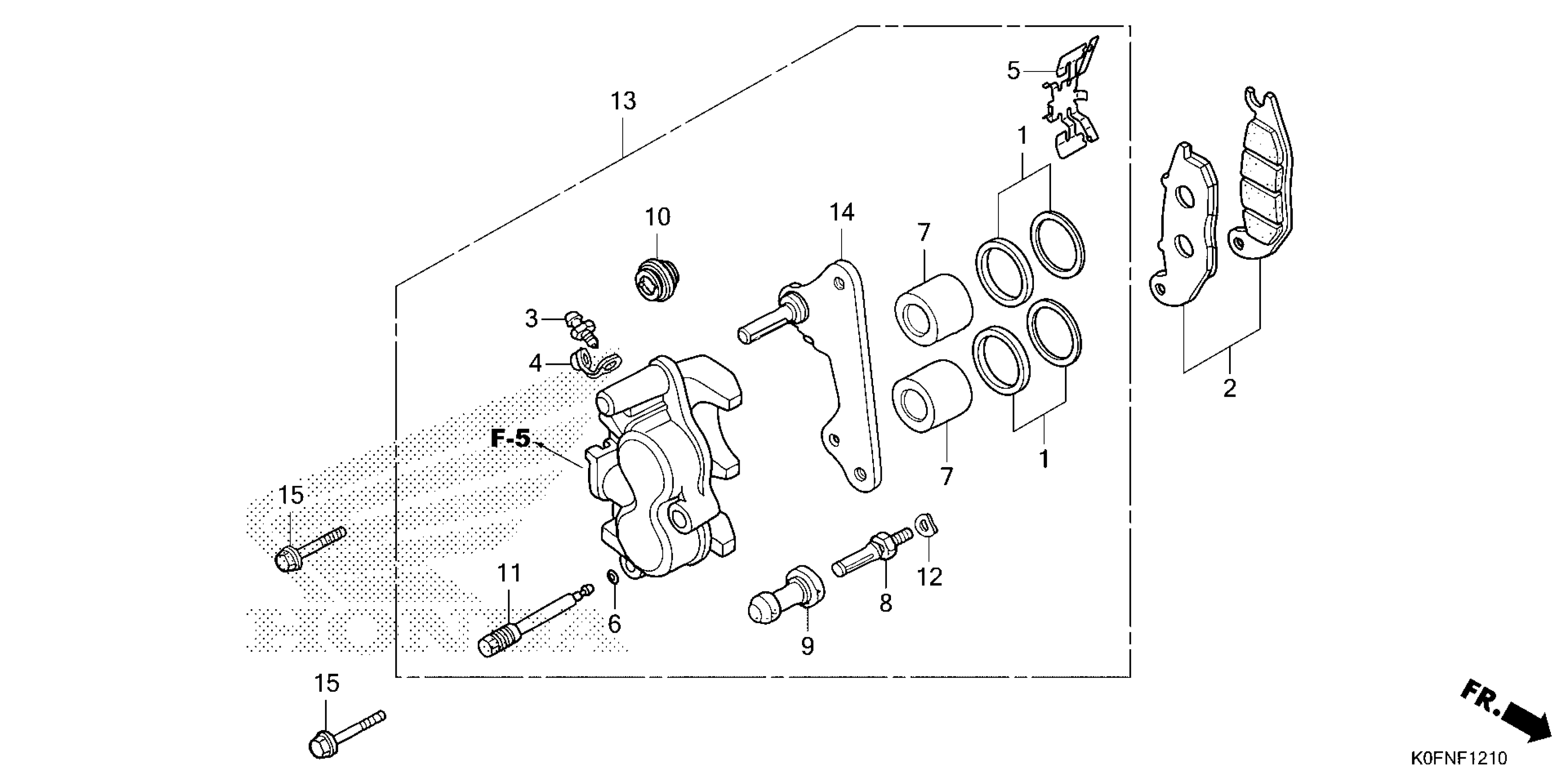

Honda Z125MA2AC (24) MOTORCYCLE, THA, VIN# MLHJB035-R5200001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$11.41

PAD SET, FR.

06455-KPP-902

$16.45

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SPRING, PAD

45108-KPH-951

$1.97

RING, STOPPER

45111-MAJ-G41

$3.80

PISTON A (25X27)

45117-MAJ-G41

$28.27

BOLT, PIN

45131-GZ0-006

$8.08

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PIN, HANGER

45215-KPH-951

$2.92

WASHER, WAVE (NISSIN)

45216-166-006

$2.34

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-K0F-T01

$113.07

BRACKET SUB-ASSY., FR. CALIPER

45290-K26-C11

$38.31

BOLT, FLANGE (8X25)

90131-KGH-900

$1.49
