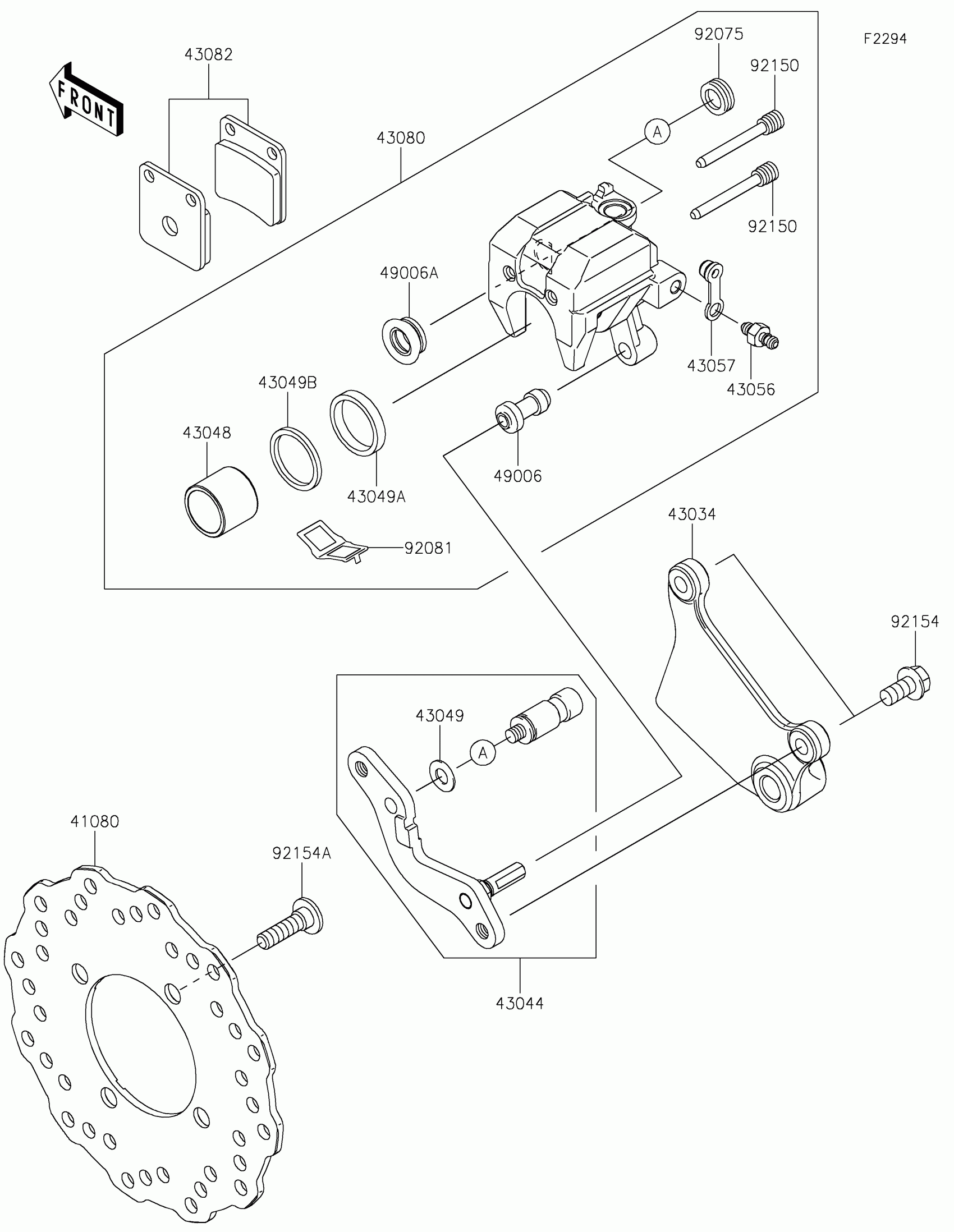

Kawasaki Z125 PRO Rear Brake Diagram

Description

Price

41080

DISC,RR

41080-0652

$275.90

43034

HOLDER-BRAKE

43034-0126

$53.28

43044

HOLDER-COMP-CALIPER,RR

43044-1076

$49.73

43048

PISTON-CALIPER

43048-1090

$66.83

43049

PACKING

43049-1025

$5.46

43049A

PACKING,PISTON SEAL

43049-1060

$19.45

43049B

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,R.GOLD

43080-0132-483

$121.04

43082

PAD-ASSY-BRAKE

43082-0043

$60.03

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1089

$7.38

92075

DAMPER

92075-1414

$7.34

92081

SPRING,PAD

92081-1502

$8.51

92150

BOLT

92150-1144

$9.91

92154

BOLT,FLANGED,8X17

92154-1261

$2.26

92154A

BOLT,SOCKET,8X30

92154-1865

$4.69
