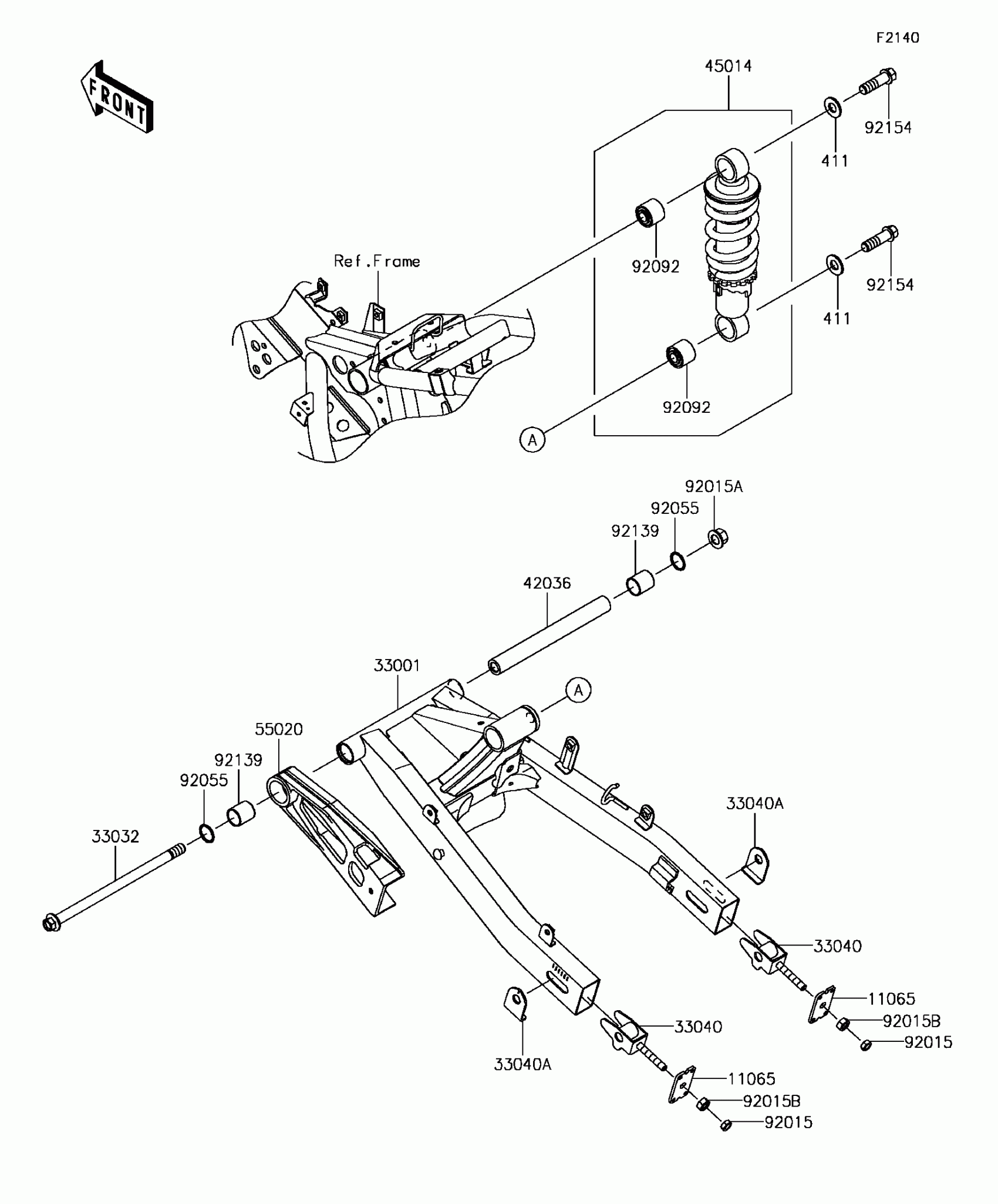

Kawasaki Z125 PRO KRT EDITION Swingarm/Shock Absorber Diagram

Description

Price

11065

CAP

11065-0916

$2.24

33001

ARM-COMP-SWING,F.S.BLACK

33001-0647-18R

$375.73

33032

SHAFT-SWING ARM

33032-0047

$29.85

33040

ADJUSTER-CHAIN

33040-0082

$14.07

33040A

ADJUSTER-CHAIN

33040-0083

$11.69

411

WASHER-PLAIN,12MM

411AA1200

$0.96

42036

SLEEVE,12.1X20X189.5

42036-0774

$65.82

45014

SHOCKABSORBER,P.SILVER

45014-0512-458

$545.23

55020

GUARD

55020-1902

$34.44

92015

NUT,8MM

92015-1364

$3.92

92015A

NUT,12MM

92015-1426

$7.33

92015B

NUT,8MM

92015-1658

$4.87

92055

RING-O,19.8X2.2

92055-1215

$4.31

92092

BUSHING-RUBBER

92092-0033

$27.48

92139

BUSHING,20X23X25

92139-0778

$17.98

92154

BOLT,FLANGED,12X40

92154-1789

$6.52
