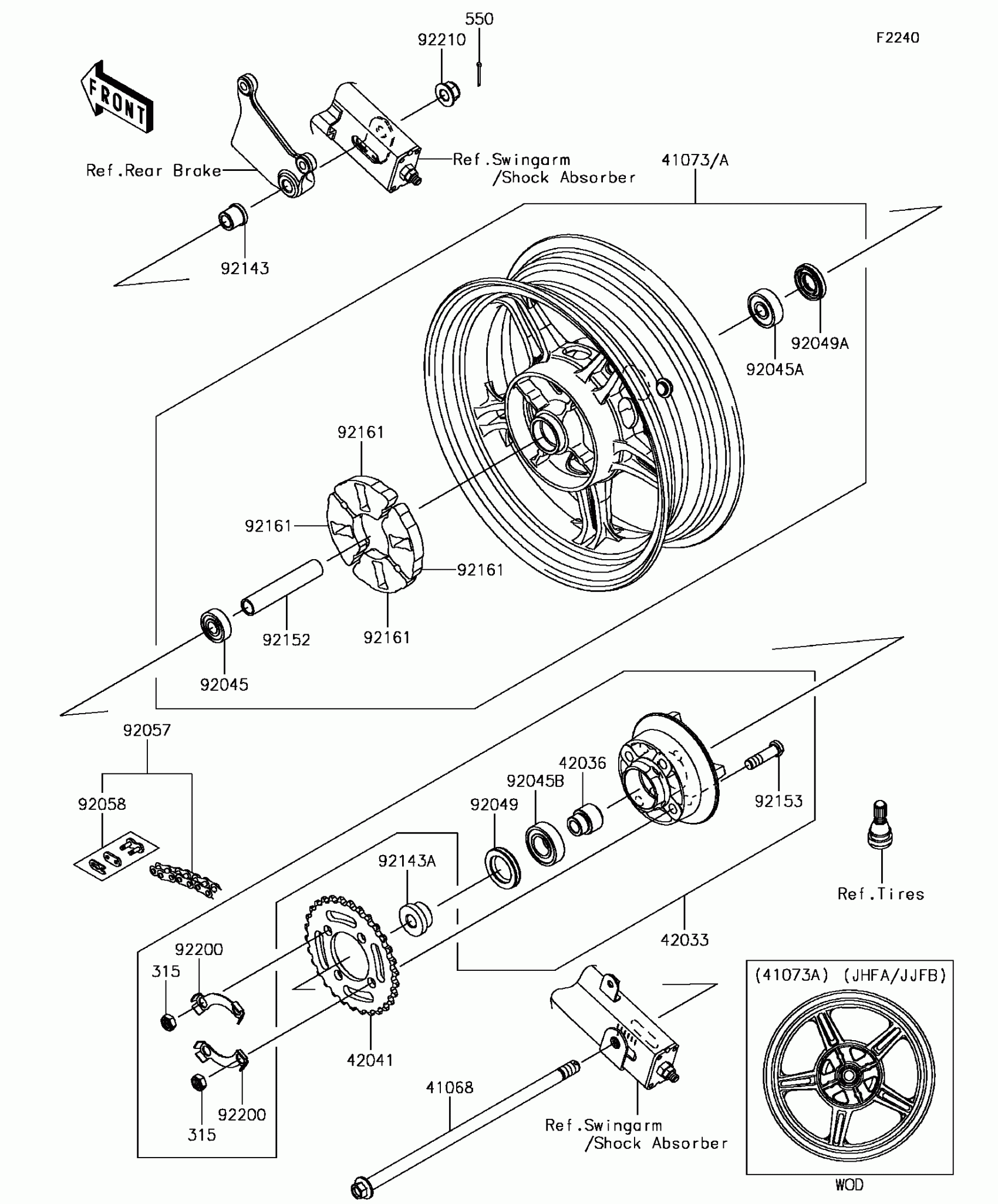

Kawasaki Z125 PRO KRT EDITION Rear Wheel/Chain Diagram

Description

Price

315

NUT-HEX-FINE,10MM

315BA1000

$1.24

41068

AXLE,12X290

41068-0610

$40.31

41073A

WHEEL-ASSY,RR,G.BLACK

41073-0673-QT

$515.15

42033

COUPLING-ASSY,RR HUB

42033-0575

$115.36

42036

SLEEVE,RR HUB COUPLING,L=29

42036-1292

$6.85

42041

SPROCKET-HUB,30T

42041-0154

$78.60

550

PIN-COTTER,2.5X20

550AA2520

$1.05

92045

BEARING-BALL,6201-LLHC3P6

92045-0161

$8.62

92045A

BEARING-BALL,6301-LLHC3P6

92045-0162

$13.08

92045B

BEARING-BALL,6004-LUC3P6

92045-0163

$16.01

92049

SEAL-OIL,SC26X42X8

92049-1490

$2.28

92049A

SEAL-OIL,KCY19X37X7

92049-1491

$14.14

92057

CHAIN,DRIVE,DID420AD

92057-0204

$91.68

92058

JOINT-CHAIN,DRIVE

92058-0026

$13.41

92143

COLLAR,RR AXLE,L=19

92143-1420

$13.97

92143A

COLLAR,RR AXLE,LH,L=17

92143-1533

$4.85

92152

COLLAR,12.7X17.3X94.5

92152-2140

Unavailable

92153

BOLT,10X36

92153-1120

$7.98

92161

DAMPER,RR HUB SHOCK

92161-0084

$7.15

92200

WASHER,LOCK

92200-0903

$7.56

92210

NUT,LOCK,FLANGED,12MM

92210-1513

$6.15
