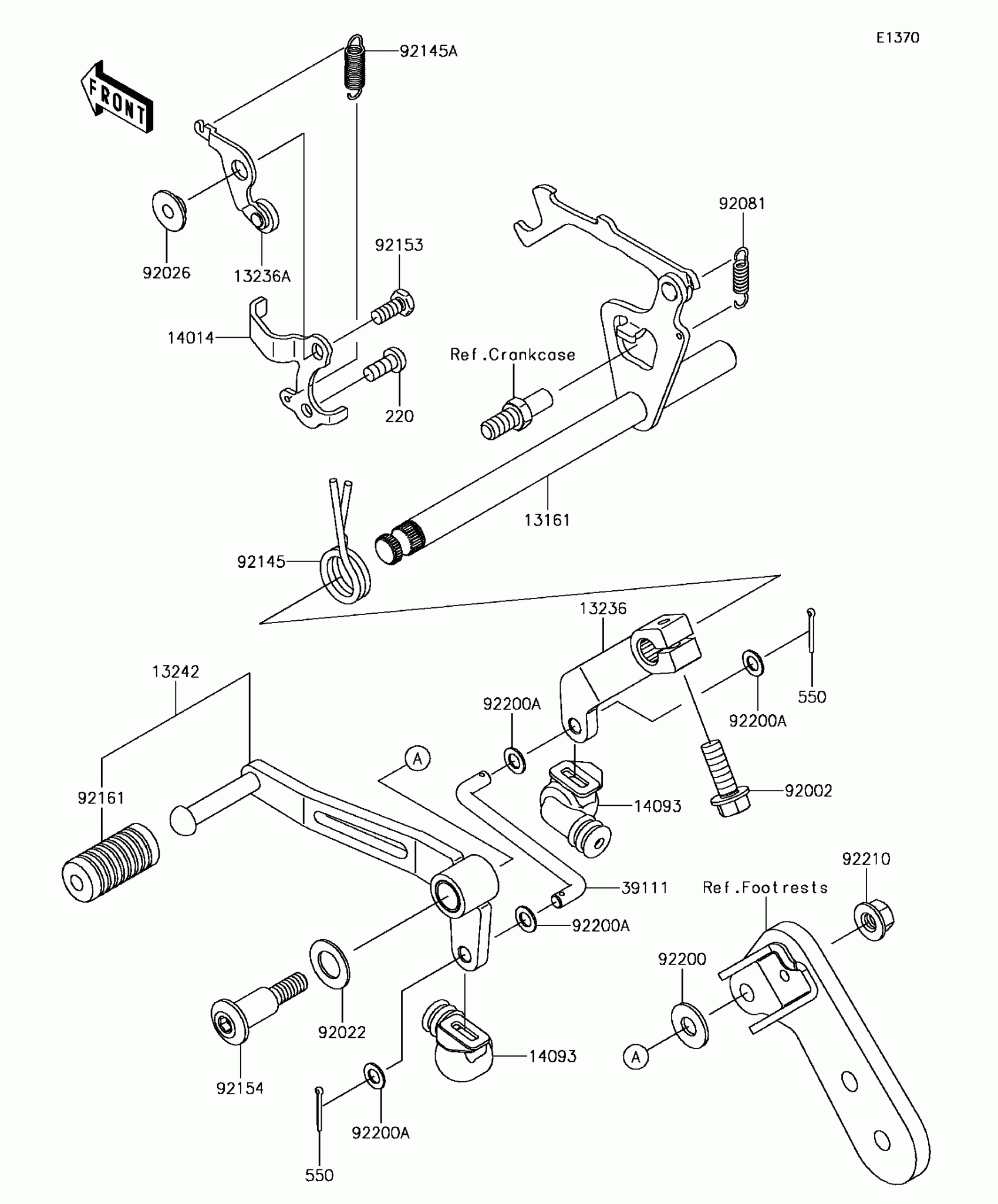

Kawasaki Z125 PRO KRT EDITION Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0575

$70.81

13236

LEVER-COMP

13236-0766

$4.25

13236A

LEVER-COMP,POSITION

13236-1256

$7.02

13242

LEVER-ASSY-CHANGE,PEDAL

13242-0126

$48.81

14014

PLATE-POSITION

14014-0558

$12.71

14093

COVER

14093-0321

$3.10

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.14

39111

ROD-TIE

39111-0340

$5.41

550

PIN-COTTER,2.0X15

550AA2015

$0.90

92002

BOLT,6X20

92002-1237

$3.29

92022

WASHER,12.5X22X1.2

92022-072

$2.99

92026

SPACER

92026-1217

$4.18

92081

SPRING,CHANGE LEVER

92081-076

$4.14

92145

SPRING,CHANGE SHAFT RETURN

92145-0984

$5.97

92145A

SPRING,CHANGE LEVER

92145-0986

$1.31

92153

BOLT,6X14

92153-0571

$1.02

92154

BOLT

92154-1305

$7.56

92161

DAMPER,CHANGE PEDAL

92161-1357

Unavailable

92200

WASHER,8.5X20X1.6

92200-0490

$2.28

92200A

WASHER,6.3X15X1.6

92200-1821

Unavailable

92210

NUT,FLANGED,8MM

92210-1376

$0.56
