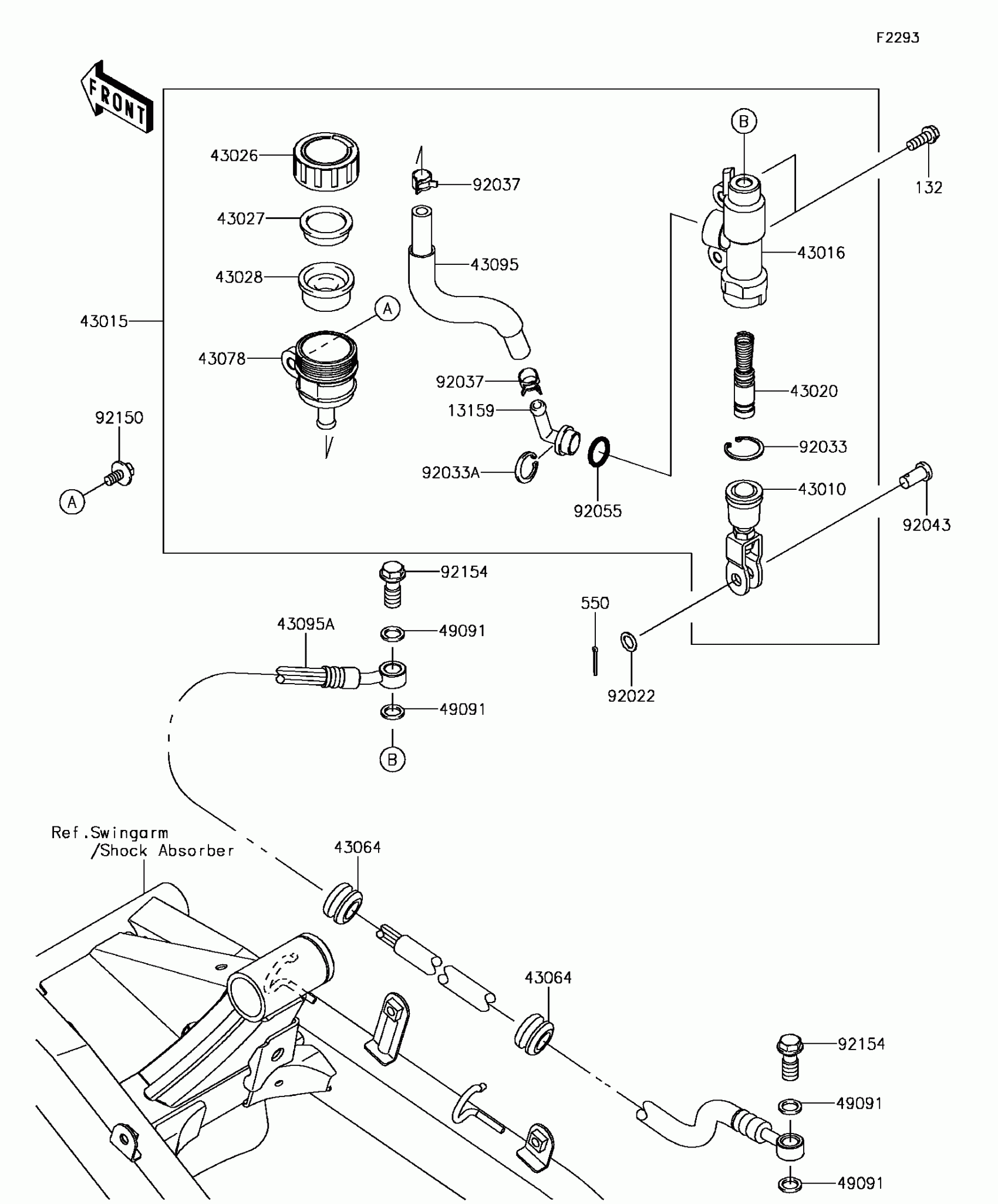

Kawasaki Z125 PRO KRT EDITION Rear Master Cylinder Diagram

Description

Price

13159

CONNECTOR

13159-1056

$14.10

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

43010

ROD-ASSY-BRAKE

43010-1068

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-0635

$294.30

43016

CYLINDER-MASTER

43016-1149

$191.24

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-1062

$30.11

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43064

GROMMET,HOSE CLAMP

43064-006

$4.31

43078

RESERVOIR

43078-1080

$28.25

43095

HOSE-BRAKE,RESERVOIR

43095-0904

$7.76

43095A

HOSE-BRAKE,RR,559MM

43095-0905

$84.56

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

550

PIN-COTTER,2.0X15

550AA2015

$1.12

92022

WASHER,8.5X13X1

92022-1028

$3.92

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP

92037-1710

$9.91

92043

92043-0004

$11.16

92055

RING-O,14.8X2.4

92055-0741

$3.71

92150

BOLT,6X14

92150-1340

$5.07

92154

BOLT,OIL,10X23

92154-0830

$5.05
