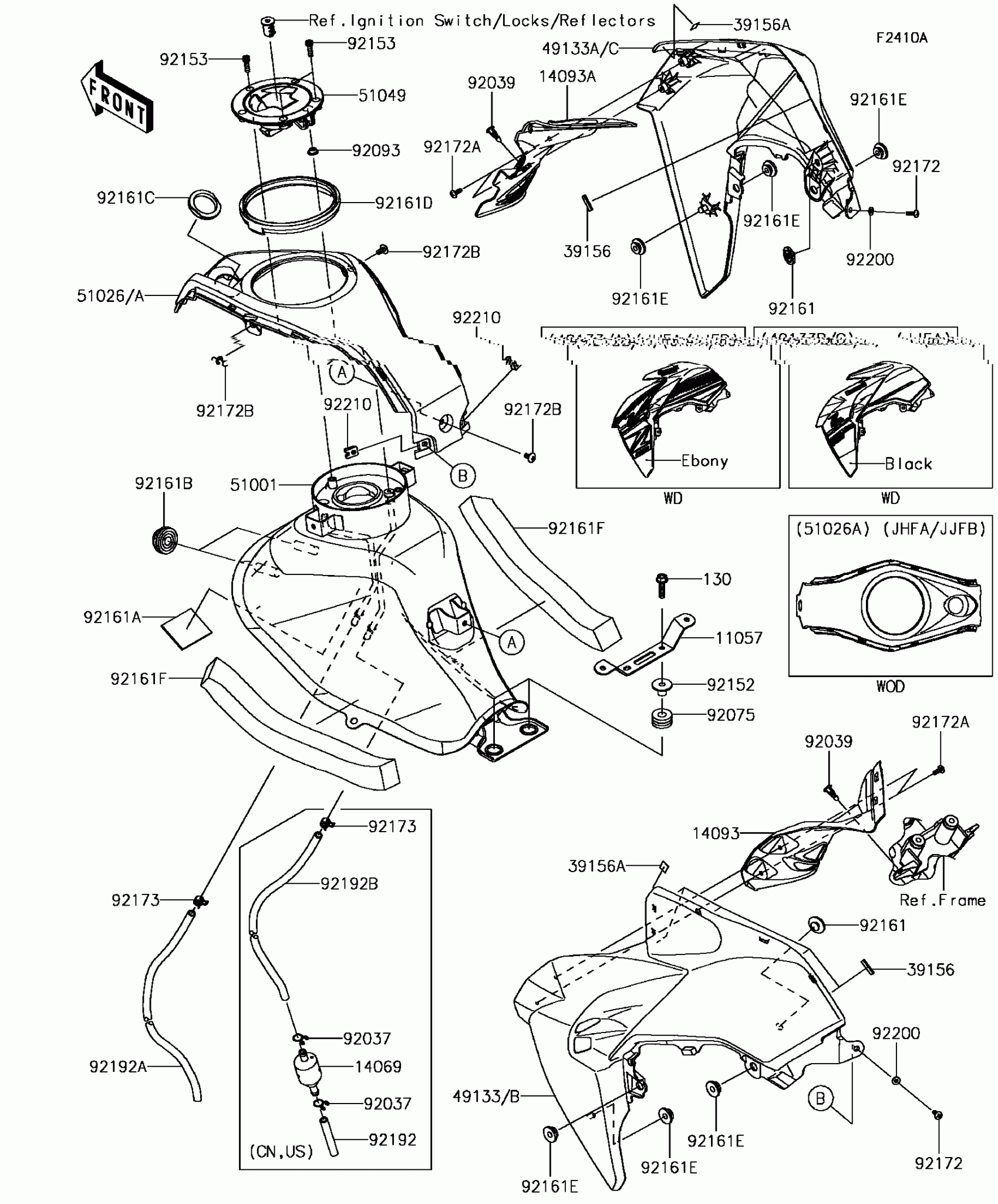

Kawasaki Z125 PRO KRT EDITION Fuel Tank(JHFA/JJFA/JJFB) Diagram

Description

Price

11057

BRACKET,SIDE COVER

11057-0244

$9.17

14093

COVER,INNER,LH

14093-0332

$13.37

14093A

COVER,INNER,RH

14093-0333

$13.37

39156

PAD,5X20X2

39156-2117

$0.45

39156A

PAD,10X10X0.2

39156-2118

$0.67

49133

SHROUD,LH,EBONY

49133-5257-H8

$356.87

49133A

SHROUD,RH,EBONY

49133-5258-H8

$356.87

51001

TANK-COMP-FUEL

51001-0848

$537.70

51026A

COVER TANK,L.GREEN

51026-0012-777

$78.51

51049

CAP-TANK,FUEL

51049-0728

$163.02

92039

RIVET

92039-0709

$2.67

92075

DAMPER,10X24X12

92075-1690

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR

92152-0697

$1.63

92153

BOLT,SOCKET,5X16

92153-1616

$1.34

92161

DAMPER,8X22X10

92161-1685

$0.88

92161A

DAMPER,40X50X2

92161-1757

$1.48

92161B

DAMPER,10X32X8

92161-1791

$2.26

92161C

DAMPER

92161-1797

$2.26

92161D

DAMPER

92161-1798

$10.72

92161E

DAMPER

92161-1810

$1.19

92161F

DAMPER

92161-1820

$3.94

92172

SCREW,4X12

92172-0715

$0.63

92172A

SCREW,4X12

92172-0959

$0.42

92172B

SCREW,5X10

92172-1090

$0.42

92173

CLAMP

92173-1143

$3.72

130

BOLT-FLANGED,6X25

130BA0625

$1.20

92192A

TUBE,6X9X630

92192-1647

$7.25

92200

WASHER,4X9.5X1

92200-0546

$0.55

92210

NUT,4MM

92210-0620

$1.48

14069

BREATHER,FUEL TANK

14069-1004

$10.19

92037

CLAMP

92037-1712

$5.00

92173

CLAMP

92173-1143

$3.72

92192

TUBE,6X9X60

92192-1489

$2.73

92192B

TUBE,6X9X505

92192-1678

$5.92
