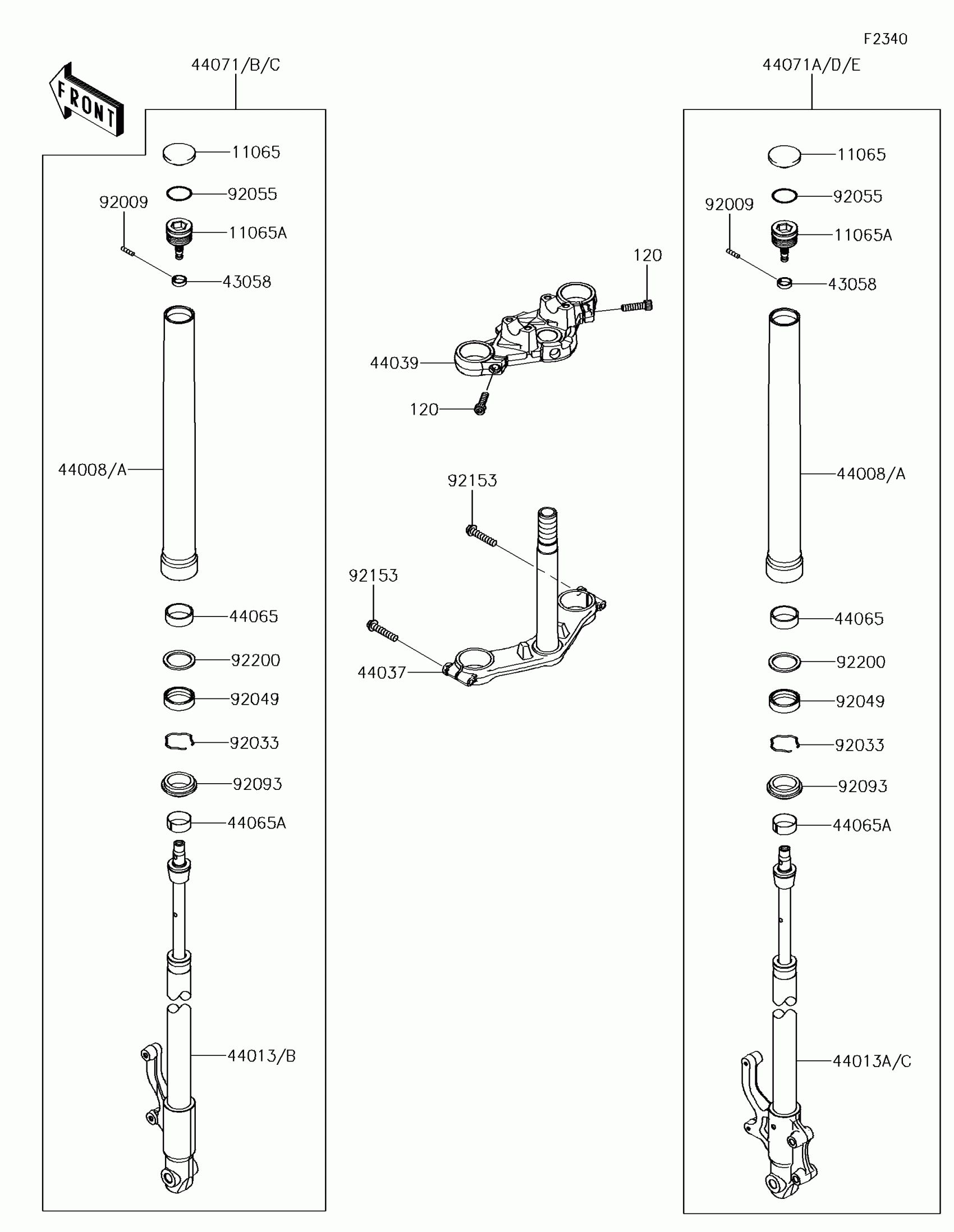

Kawasaki Z125 PRO KRT EDITION Front Fork Diagram

Description

Price

11065

CAP

11065-0005

$7.25

11065A

CAP

11065-0926

$7.25

120

BOLT-SOCKET,8X30

120CB0830

$4.69

43058

RING

43058-1072

$13.96

44008A

PIPE-FORK OUTER,C.GOLD

44008-0081-58C

$449.05

44013B

PIPE-FORK INNER,LH,F.S.BLACK

44013-0306-18R

$281.53

44013C

PIPE-FORK INNER,RH,F.S.BLACK

44013-0307-18R

$281.53

44037

HOLDER-FORK UNDER

44037-0163

$293.89

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0165-18R

$202.16

44065

BUSHING-FRONT FORK

44065-1099

$13.71

44065A

BUSHING-FRONT FORK

44065-1101

$18.56

44071C

DAMPER-ASSY,FORK,LH,C.GOLD

44071-1259-58C

$835.19

44071E

DAMPER-ASSY,FORK,RH,C.GOLD

44071-1260-58C

$835.19

92009

SCREW

92009-1625

$3.63

92033

RING-SNAP

92033-1038

$4.65

92049

SEAL-OIL,FORK OUTER TUBE

92049-0003

$18.06

92055

RING-O,FORK TOP CAP

92055-1051

$5.52

92093

SEAL,FORK OUTER TUBE

92093-0001

$18.24

92153

BOLT,8X40

92153-0020

$5.59

92200

WASHER

92200-1061

$6.81
