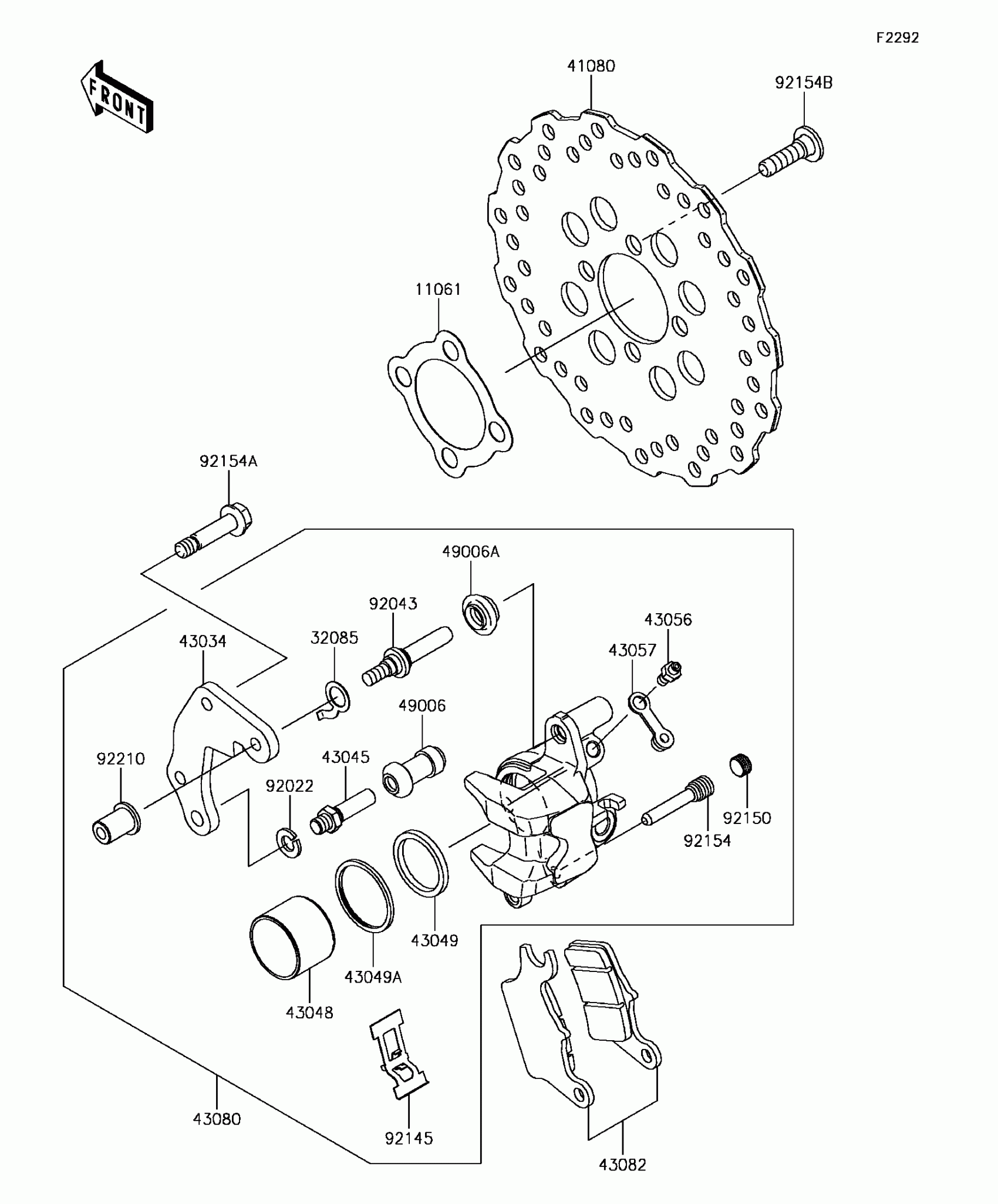

Kawasaki Z125 PRO KRT EDITION Front Brake Diagram

Description

Price

11061

GASKET,BRAKE DISC

11061-0006

$5.64

32085

STOPPER

32085-0737

$5.44

41080

DISC,FR

41080-0645

$259.47

43034

HOLDER-BRAKE

43034-0119

$118.22

43045

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-0022

$51.24

43049

PACKING,PISTON SEAL

43049-1023

$14.30

43049A

PACKING,PISTON SEAL

43049-1024

$8.51

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,BLACK

43080-0159-DJ

$177.89

43082

PAD-ASSY-BRAKE

43082-0134

$67.33

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,8X17

92043-0757

$21.44

92145

SPRING

92145-0939

$13.73

92150

BOLT,PLUG

92150-1692

$7.84

92154

BOLT

92154-1120

$9.91

92154A

BOLT,FLANGED,8X36

92154-1260

$4.87

92154B

BOLT,SOCKET,8X30

92154-1865

$4.69

92210

NUT

92210-0615

$6.26
