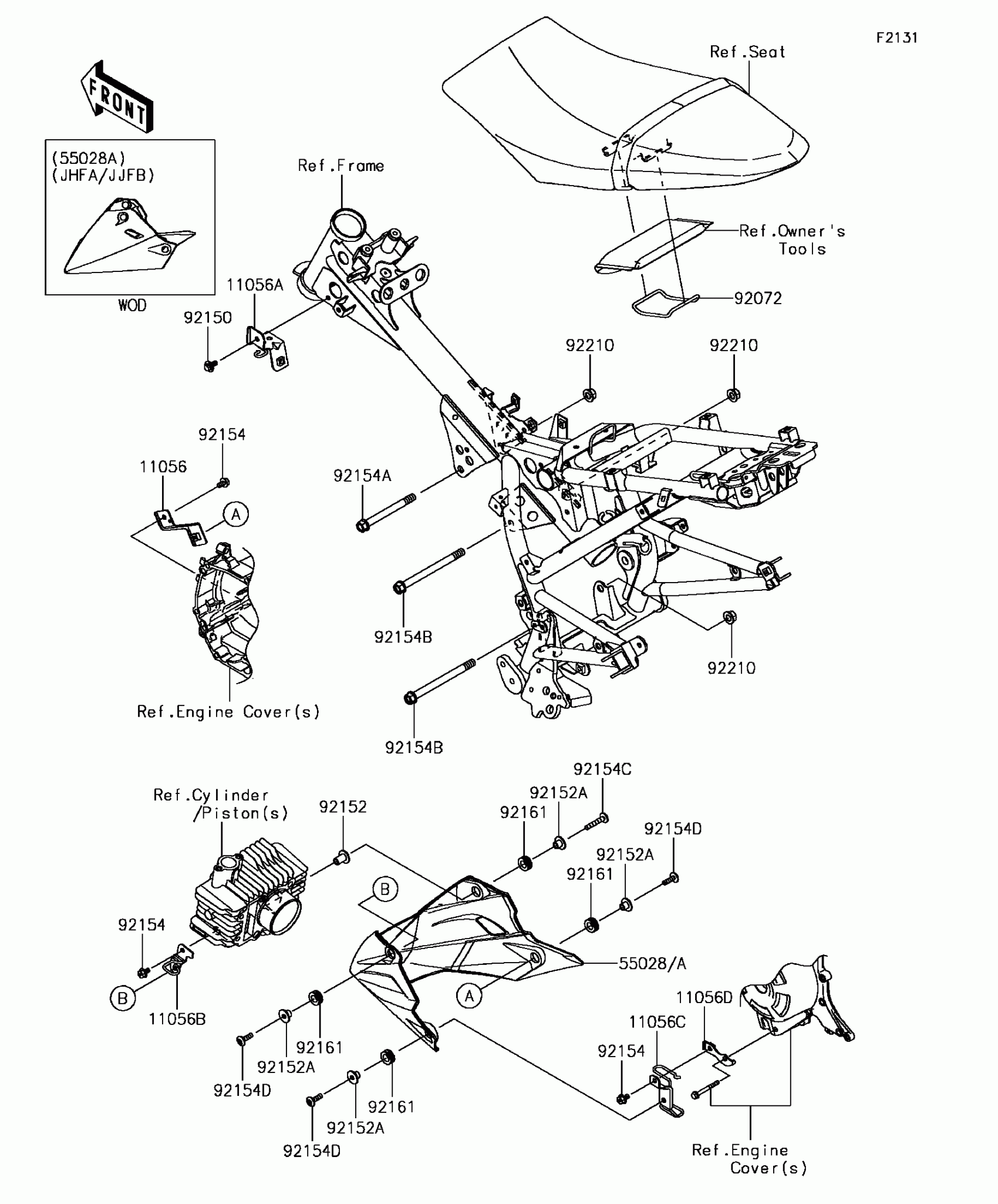

Kawasaki Z125 PRO KRT EDITION Frame Fittings Diagram

Description

Price

11056

BRACKET,RR,RH

11056-7592

$5.44

11056A

BRACKET

11056-7593

$7.33

11056B

BRACKET,FR,LH

11056-7607

$6.52

11056C

BRACKET,RR,LH

11056-7608

$9.93

11056D

BRACKET,GENERATOR COVER

11056-7718

$3.02

55028A

COWLING,LWR,L.GREEN+EBY

55028-0562-774

$96.87

92072

BAND,TOOL

92072-0781

$3.29

92150

BOLT,6X14

92150-1340

$5.07

92152

COLLAR,6.5X10X18

92152-1560

$5.05

92152A

COLLAR,6.5X10X10.4

92152-1688

$1.97

92154

BOLT,FLANGED,6X10

92154-1256

$0.63

92154A

BOLT,FLANGED,10X100

92154-1257

$10.24

92154B

BOLT,FLANGED,10X125

92154-1258

$12.83

92154C

BOLT,SOCKET,6X35

92154-2121

$1.97

92154D

BOLT,SOCKET,6X20

92154-2122

$1.71

92161

DAMPER,10X20X8

92161-1828

$1.19

92210

NUT,FLANGED,10MM

92210-0869

$4.31
