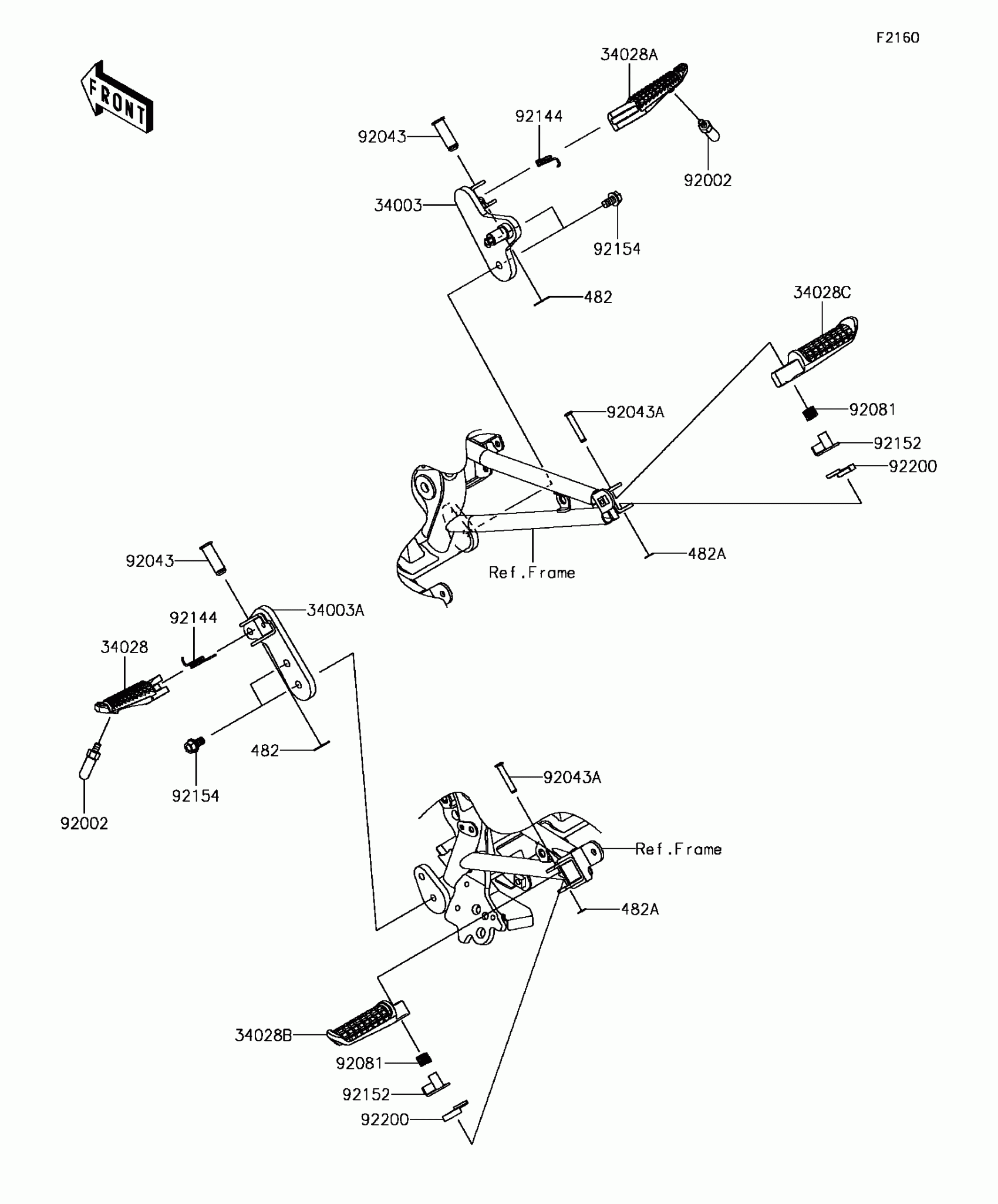

Kawasaki Z125 PRO KRT EDITION Footrests Diagram

Description

Price

34003

HOLDER-STEP,FR,RH,F.S.BLACK

34003-0158-18R

$38.02

34003A

HOLDER-STEP,FR,LH,F.S.BLACK

34003-0163-18R

$38.02

34028

STEP,FR,LH

34028-0318

$51.41

34028A

STEP,FR,RH

34028-0319

$51.41

34028B

STEP,RR,LH

34028-0334

$34.36

34028C

STEP,RR,RH

34028-0335

$34.36

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA5000

$1.34

92002

BOLT,BANK SENSOR

92002-1995

$14.23

92043

PIN,12X37

92043-0025

$5.57

92043A

PIN,6X33.3

92043-0860

$5.52

92081

SPRING,STEP,RR

92081-1612

$4.26

92144

SPRING,STEP RETURN

92144-1567

$6.51

92152

COLLAR,STEP

92152-0658

$10.30

92154

BOLT,FLANGED,8X20

92154-0471

$2.26

92200

WASHER

92200-0783

$1.97
