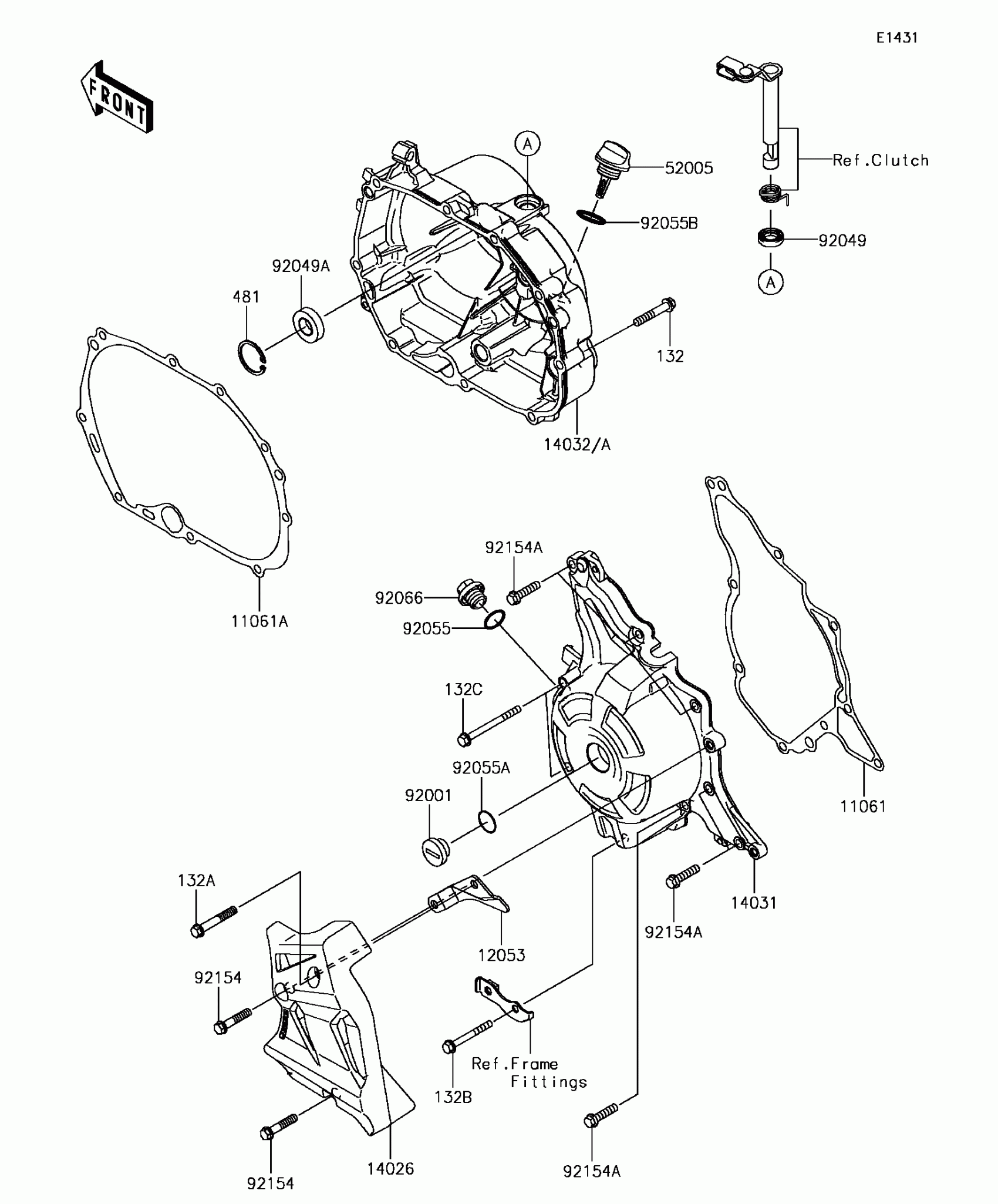

Kawasaki Z125 PRO KRT EDITION Engine Cover(s) Diagram

Description

Price

11061

GASKET,GENERATOR

11061-0125

$6.33

11061A

GASKET,CLUTCH COVER

11061-0289

$7.31

12053

GUIDE-CHAIN

12053-0233

$15.02

132

BOLT-FLANGED-SMALL,6X35

132BA0635

$2.06

132A

BOLT-FLANGED-SMALL,6X40

132BA0640

$4.45

132B

BOLT-FLANGED-SMALL,6X45

132BA0645

$4.45

132C

BOLT-FLANGED-SMALL,6X60

132BA0660

$4.12

14026

COVER-CHAIN

14026-0127

$38.82

14031

COVER-GENERATOR,F.M.GRAY

14031-0575-26M

$91.90

14032A

COVER-CLUTCH,F.M.GRAY

14032-0634-26M

$143.90

481

CIRCLIP-TYPE-C,28MM

481J2800

$1.50

52005

GAUGE,OIL LEVEL

52005-0756

$5.39

92001

BOLT,GENERATOR COVER CAP

92001-1827

$7.27

92049

SEAL-OIL,12X20X5.5

92049-0142

$5.59

92049A

SEAL-OIL,AC0387E0

92049-1595

$2.41

92055

RING-O,14.8X2.4

92055-0153

$5.65

92055A

RING-O,25.7X2.4

92055-0154

$5.65

92055B

RING-O,20X2

92055-0155

$3.90

92066

PLUG,14X10

92066-1571

$0.67

92154

BOLT,FLANGED,6X30

92154-1080

$1.19

92154A

BOLT,FLANGED,6X25

92154-2154

$3.02
