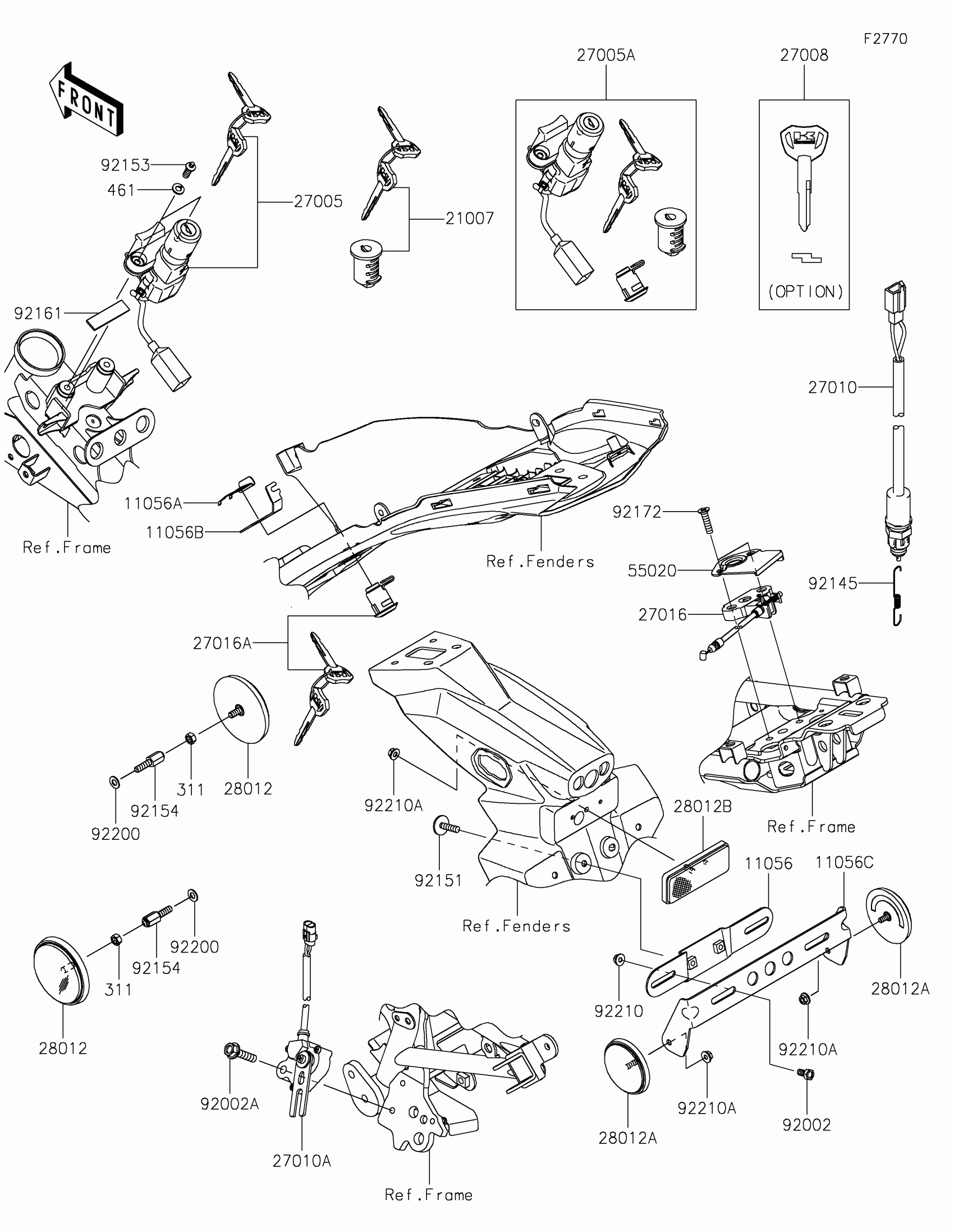

Kawasaki Z125 PRO Ignition Switch/Locks/Reflectors Diagram

Description

Price

11056

BRACKET,LICENSE PLATE

11056-0139

$19.92

11056A

BRACKET,CLASP

11056-0238

$6.00

11056B

BRACKET,SEAT LOCK

11056-2119

$4.41

11056C

BRACKET

11056-7906

$33.36

21007

ROTOR,LOCK,TANK CAP

21007-5088

$81.31

27005

SWITCH-ASSY-IGNITION

27005-0685

$152.72

27005A

SWITCH-ASSY-IGNITION

27005-5182

$263.53

27008

KEY-LOCK,BLANK

27008-0650

$21.59

27010

SWITCH,RR BRAKE

27010-0828

$36.14

27010A

SWITCH,SIDE STAND

27010-0829

$117.39

27016

LOCK-ASSY,SEAT STRIKER

27016-0081

$44.60

27016A

LOCK-ASSY,SEAT

27016-5415

$68.08

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$24.14

28012A

REFLECTOR-REFLEX

28012-0002

$24.14

28012B

REFLECTOR-REFLEX

28012-1077

$23.25

55020

GUARD,SEAT LOCK

55020-0554

$16.48

92002

BOLT,6X12

92002-1132

$1.49

92002A

BOLT,FLANGED,6X25

92002-1582

$4.69

92145

SPRING

92145-1723

$1.18

92151

BOLT,6X25

92151-1241

$5.00

92153

BOLT,TORX,6X16

92153-0967

$2.61

92154

BOLT,6X20

92154-2193

$10.60

92161

DAMPER

92161-1359

$1.19

92172

SCREW,6X25

92172-0965

$0.42

92200

WASHER,6.5X16X1.0

92200-0796

$0.85

92210

NUT,FLANGED,6MM

92210-1514

$3.98

92210A

NUT,FLANGED,5MM

92210-1607

$3.74

311

NUT-HEX,5MM

311AB0500

$0.43

461

WASHER-SPRING,6MM

461DA0600

$0.71
