2019 Kawasaki Z125 Pro Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

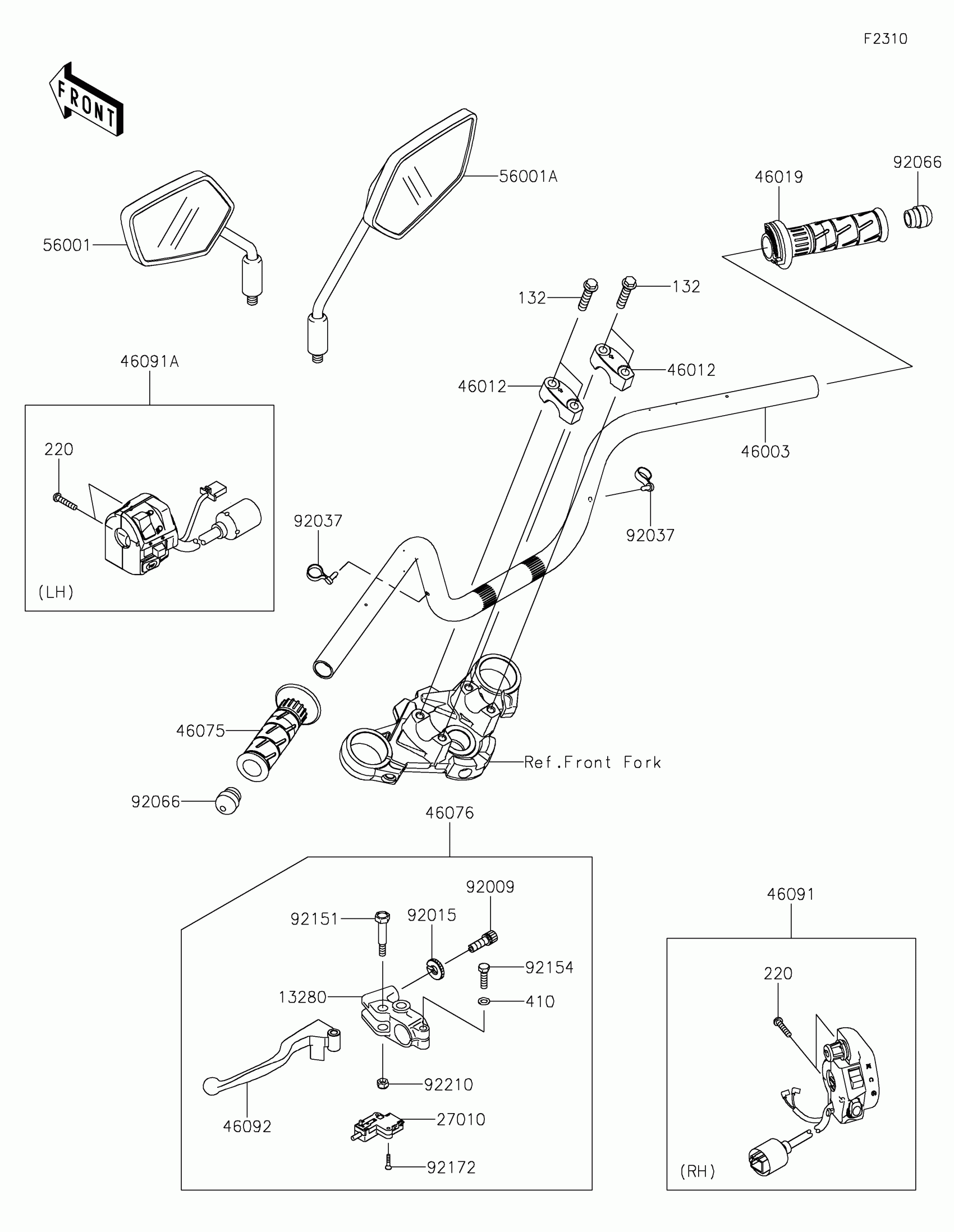

2019 Kawasaki Z125 Pro Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$4.37

In stock

13280

HOLDER,CLUTCH LEVER

13280-0105

1

$33.97

In stock

220

1

$2.92

In stock

27010

SWITCH,CLUTCH

27010-0729

1

$30.28

In stock

410

1

$0.80

In stock

46003

HANDLE,F.S.BLACK

46003-0655-18R

1

$72.62

In stock

46012

1

$23.37

In stock

46019

GRIP-ASSY,THROTTLE

46019-0047

1

$43.28

In stock

46075

GRIP

46075-0606

1

$12.72

In stock

46076

1

$68.44

In stock

46091

1

$75.26

In stock

46091A

1

$112.76

In stock

46092

LEVER-GRIP,CLUTCH

46092-0567

1

$9.20

In stock

56001

MIRROR-ASSY,LH

56001-0312

1

$49.26

In stock

56001A

MIRROR-ASSY,RH

56001-0313

1

$49.26

In stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92015

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92066

PLUG

92066-0825

1

$2.42

In stock

92151

BOLT,LEVER SET

92151-1986

1

$4.93

In stock

92154

BOLT,UPSET,6X22

92154-1422

1

$4.17

In stock

92172

SCREW-CSK-CROS,3X16

92172-1187

1

$3.20

In stock

92210

NUT,LOCK,6MM

92210-1551

1
Out of stock
