2019 Kawasaki Z125 Pro Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

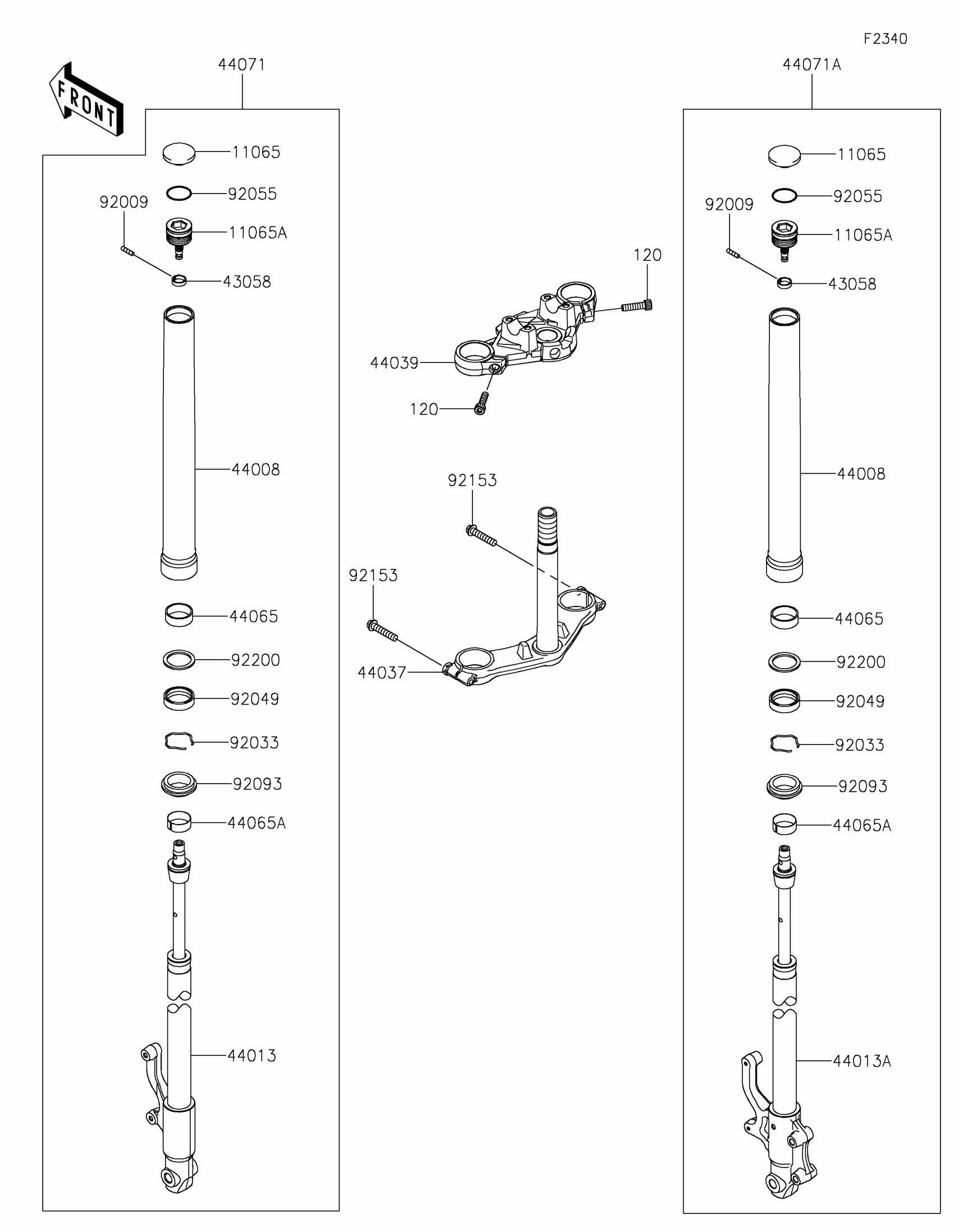

2019 Kawasaki Z125 Pro Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0005

1

$7.15

In stock

11065A

CAP

11065-0926

1

$7.15

In stock

120

BOLT-SOCKET,8X30

120CB0830

1

$3.72

In stock

43058

RING

43058-1072

1

$13.25

In stock

44008

PIPE-FORK OUTER,R.GOLD

44008-0081-484

1

$458.56

In stock

44013

1

$287.51

In stock

44013A

1

$287.51

In stock

44037

HOLDER-FORK UNDER

44037-0163

1

$299.98

In stock

44039

1

$206.42

In stock

44065

BUSHING-FRONT FORK

44065-1099

1

$10.85

In stock

44065A

BUSHING-FRONT FORK

44065-1101

1

$17.36

In stock

44071

1

$862.19

In stock

44071C

1

$862.19

In stock

92009

SCREW

92009-1625

1
Out of stock

92033

RING-SNAP

92033-1038

1

$3.35

In stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-0003

1
Out of stock

92055

RING-O,FORK TOP CAP

92055-1051

1

$4.85

In stock

92093

1

$17.08

In stock

92153

BOLT,8X40

92153-0020

1
Out of stock

92200

WASHER

92200-1061

1
Out of stock
