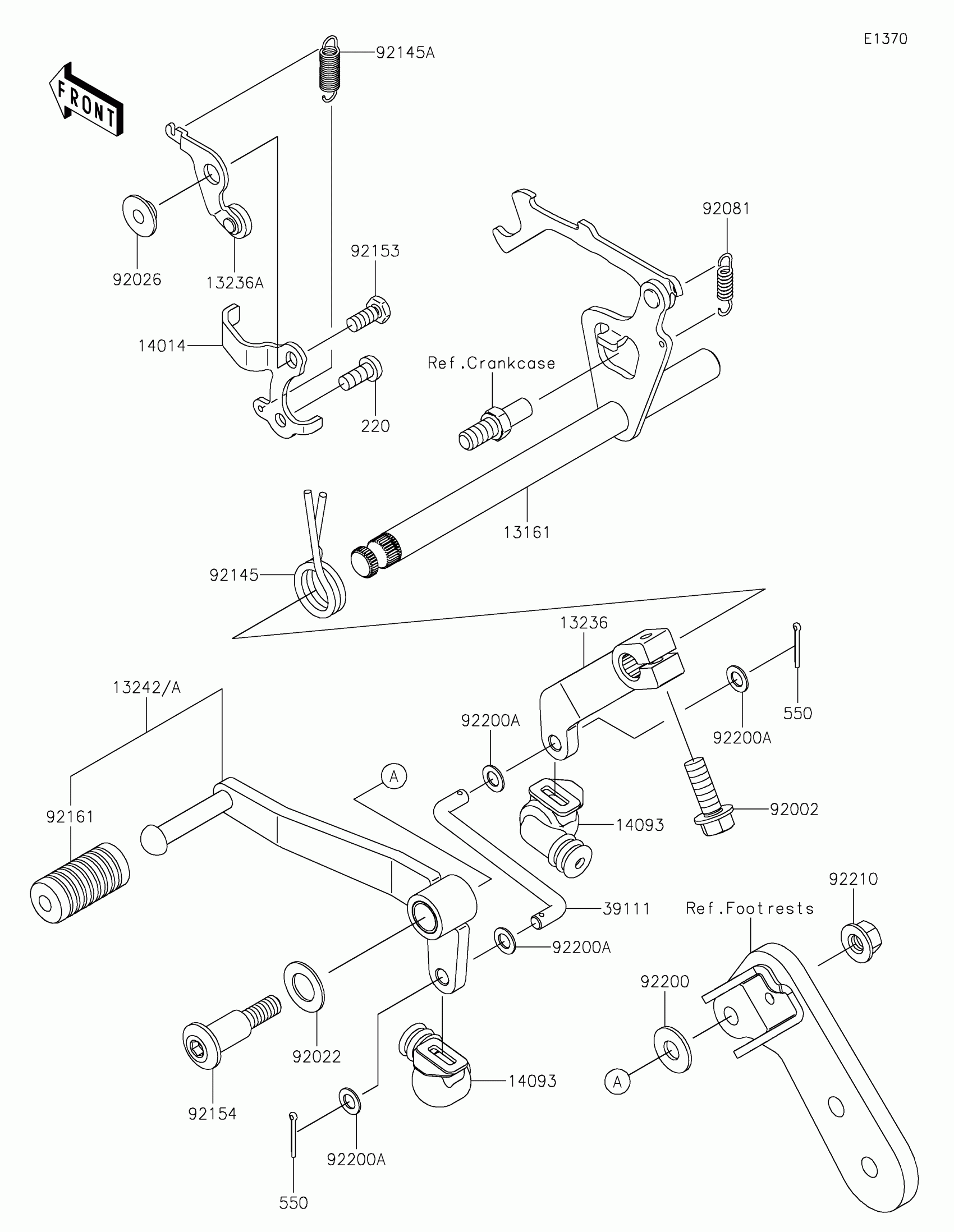

Kawasaki Z125 PRO Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0575

$69.49

13236

LEVER-COMP

13236-0766

$4.78

13236A

LEVER-COMP,POSITION

13236-1256

$9.21

13242

LEVER-ASSY-CHANGE,PEDAL

13242-0136

$47.45

14014

PLATE-POSITION

14014-0558

$13.34

14093

COVER

14093-0321

$3.51

39111

ROD-TIE

39111-0380

$5.98

92002

BOLT,6X20

92002-1237

$4.31

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92026

SPACER

92026-1217

$5.52

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92145

SPRING,CHANGE SHAFT RETURN

92145-0984

$6.89

92145A

SPRING,CHANGE LEVER

92145-0986

$1.47

92153

BOLT,6X14

92153-0571

$1.08

92154

BOLT

92154-1305

$9.93

92161

DAMPER,CHANGE PEDAL

92161-1357

$7.59

92200

WASHER,8.5X20X1.6

92200-0490

$3.29

92200A

WASHER,7.1X15X1.6

92200-2366

$0.64

92210

NUT,FLANGED,8MM

92210-1376

$0.51

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.48

550

PIN-COTTER,2.0X15

550AA2015

$1.12
