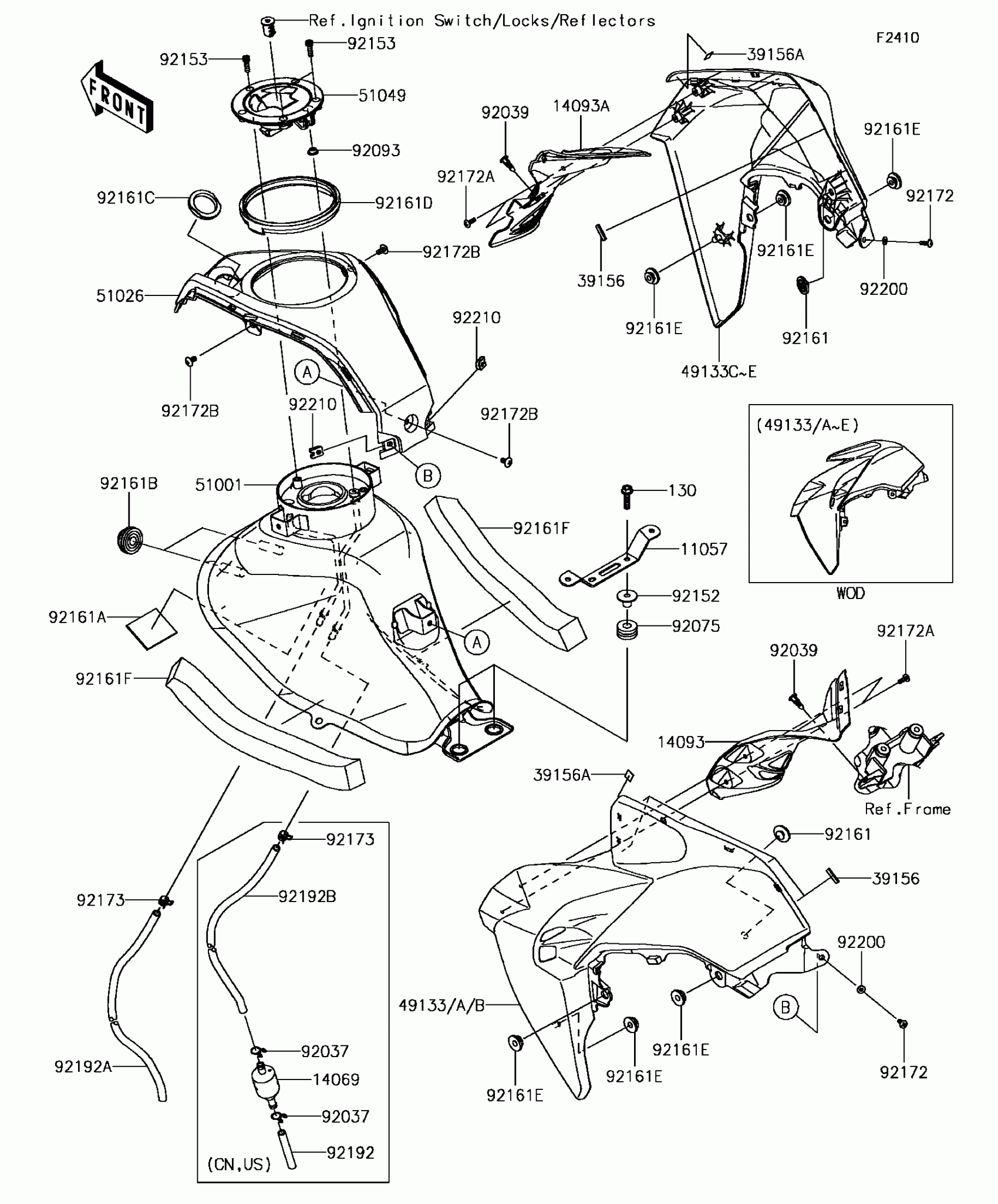

Kawasaki Z125 Pro Fuel Tank(JHF/JJF) Diagram
#
11057
BRACKET,SIDE COVER
11057-0244
$9.17
14069
BREATHER,FUEL TANK
14069-1004
$10.19
14093
COVER,INNER,LH
14093-0332
$13.37
14093A
COVER,INNER,RH
14093-0333
$13.37
39156
PAD,5X20X2
39156-2117
$0.45
39156A
PAD,10X10X0.2
39156-2118
$0.67
49133A
SHROUD,LH,M.G.GRAY
49133-0011-45W
$70.89
49133B
SHROUD,LH,C.L.GREEN
49133-0011-51P
$67.17
49133D
SHROUD,RH,M.G.GRAY
49133-0012-45W
$70.89
49133E
SHROUD,RH,C.L.GREEN
49133-0012-51P
$67.17
51001
TANK-COMP-FUEL
51001-0848
$537.70
51026
COVER TANK,F.BLACK
51026-0012-6Z
$75.75
51049
CAP-TANK,FUEL
51049-0728
$163.02
92037
CLAMP
92037-1712
$5.00
92039
RIVET
92039-0709
$2.67
92075
DAMPER,10X24X12
92075-1690
$5.00
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
92152
COLLAR
92152-0697
$1.63
92153
BOLT,SOCKET,5X16
92153-1616
$1.34
92161
DAMPER,8X22X10
92161-1685
$0.88
92161A
DAMPER,40X50X2
92161-1757
$1.48
92161B
DAMPER,10X32X8
92161-1791
$2.26
92161C
DAMPER
92161-1797
$2.26
92161D
DAMPER
92161-1798
$10.72
92161E
DAMPER
92161-1810
$1.19
92161F
DAMPER
92161-1820
$3.94
92172
SCREW,4X12
92172-0715
$0.63
92172A
SCREW,4X12
92172-0959
$0.42
92172B
SCREW,5X10
92172-1090
$0.42
130
BOLT-FLANGED,6X25
130BA0625
$1.20
92173
CLAMP
92173-1143
$3.72
92192
TUBE,6X9X60
92192-1489
$2.73
92192A
TUBE,6X9X630
92192-1647
$7.25
92192B
TUBE,6X9X505
92192-1678
$5.92
92200
WASHER,4X9.5X1
92200-0546
$0.55
92210
NUT,4MM
92210-0620
$1.48
92173
CLAMP
92173-1143
$3.72
