2019 Kawasaki Z125 Pro Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

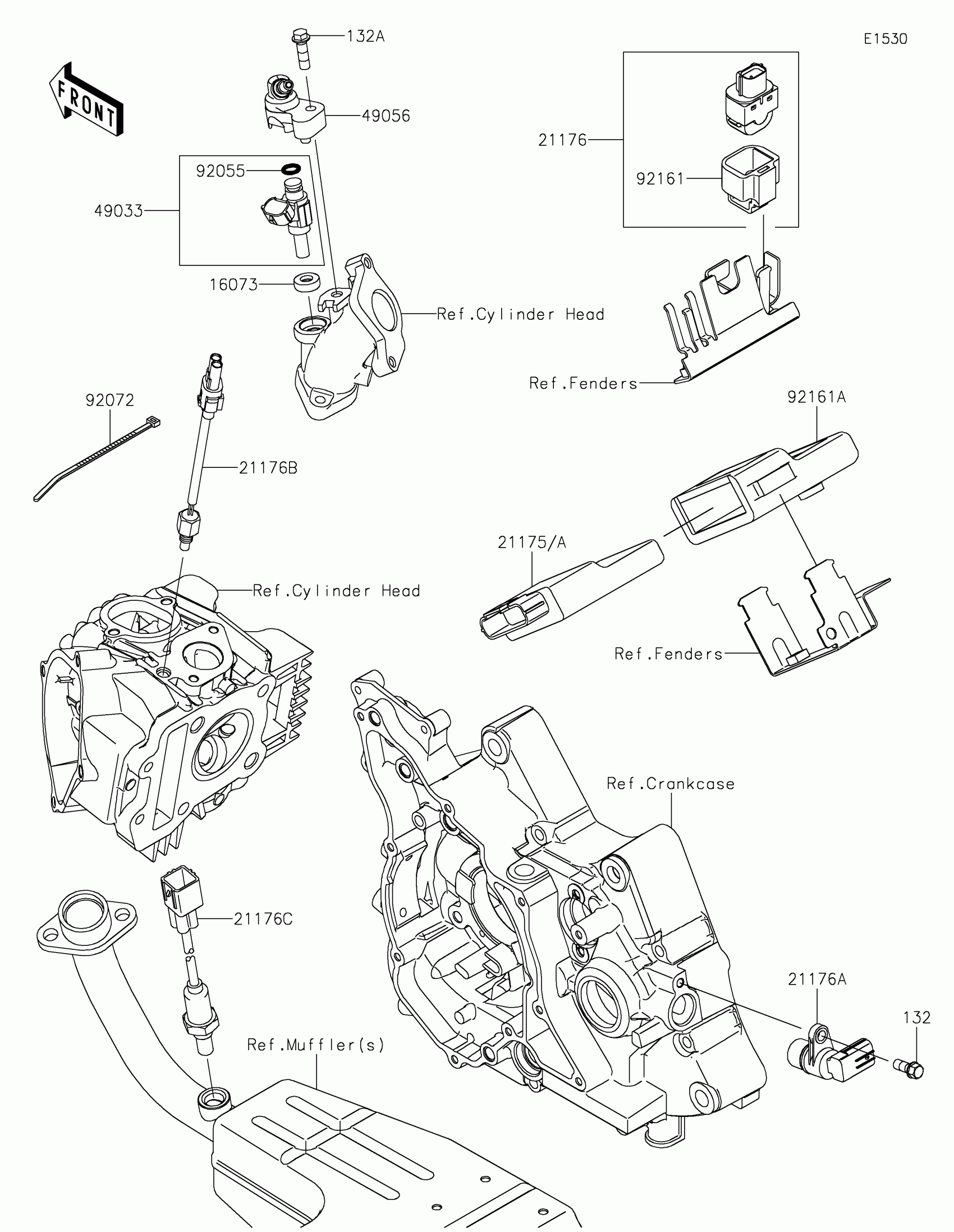

2019 Kawasaki Z125 Pro Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.21

In stock

132A

1

$2.05

In stock

16073

INSULATOR

16073-0129

1

$4.75

In stock

21175C

1

$518.17

In stock

21176

SENSOR,VEHICLE-DOWN

21176-0704

1

$84.36

In stock

21176A

SENSOR,SPEED

21176-0806

1

$61.39

In stock

21176B

SENSOR,ENGINE TEMP

21176-0817

1

$75.82

In stock

21176C

SENSOR,OXYGEN

21176-0826

1

$290.02

In stock

49033

NOZZLE-INJECTION

49033-0038

1

$130.92

In stock

49056

PIPE-INJECTION

49056-0043

1

$180.69

In stock

92055

1

$2.42

In stock

92072

BAND

92072-0054

1

$0.63

In stock

92161

DAMPER

92161-0951

1

$14.14

In stock

92161A

DAMPER,ECU

92161-1788

1

$9.37

In stock

21175B

1

$518.17

In stock
