2019 Kawasaki Z125 Pro Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

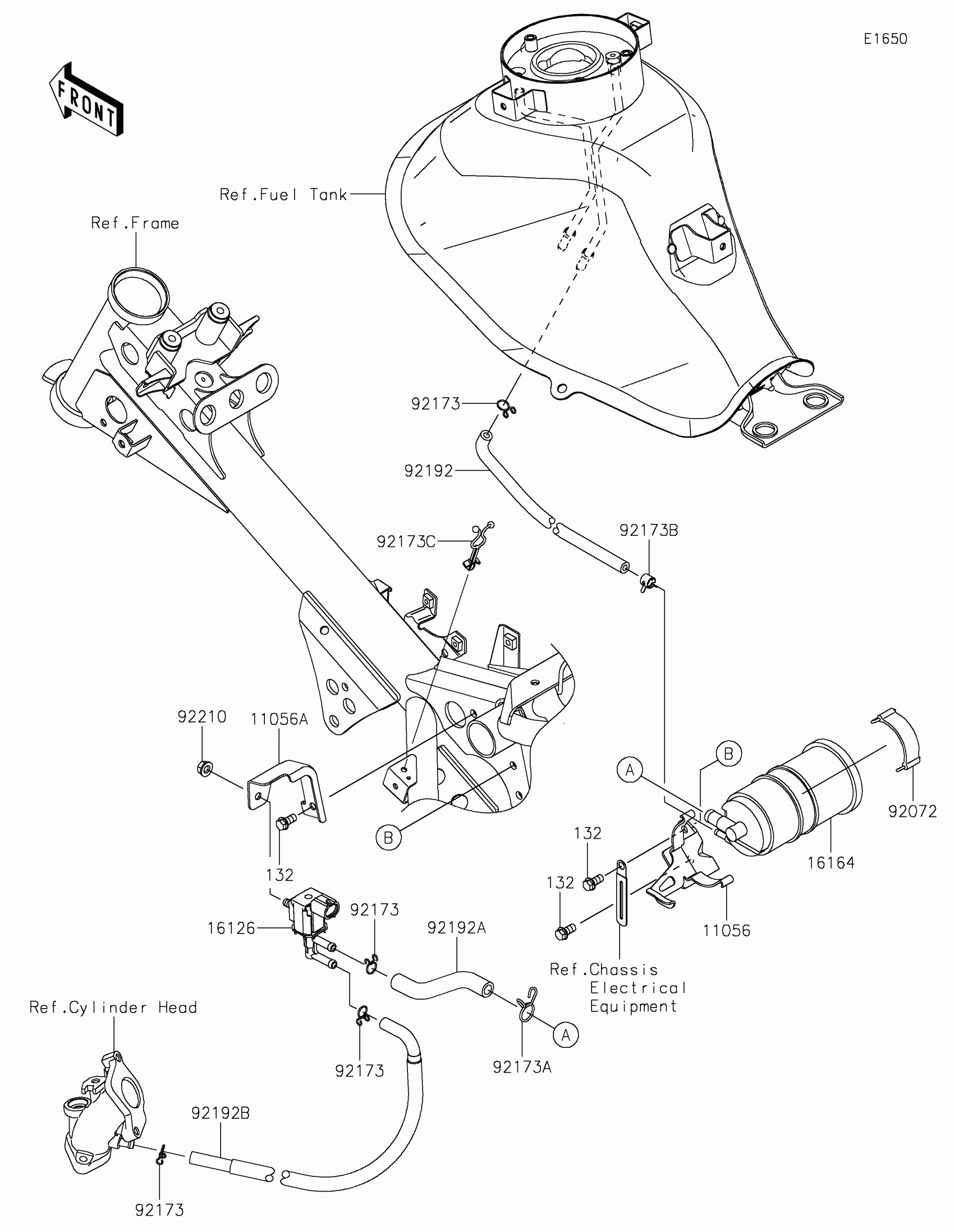

2019 Kawasaki Z125 Pro Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,CANISTER

11056-7523

1

$15.59

In stock

11056A

BRACKET,VALVE

11056-7743

1

$3.56

In stock

132

1

$1.12

In stock

16126

VALVE,SOLENOID

16126-0705

1

$109.25

In stock

16164

CANISTER

16164-0704

1

$138.03

In stock

92072

BAND,L=50

92072-1419

1

$12.72

In stock

92173

CLAMP

92173-0050

1

$5.75

In stock

92173A

CLAMP,14MM

92173-1015

1

$3.29

In stock

92173B

CLAMP

92173-1143

1

$3.27

In stock

92173C

CLAMP

92173-1616

1

$1.68

In stock

92192

TUBE,TANK-CANISTER

92192-1484

1
Out of stock

92192A

TUBE,CANISTER-VALVE

92192-1531

1
Out of stock

92192B

TUBE,VALVE-PIPE INTAKE

92192-1747

1
Out of stock

92210

NUT,FLANGED,6MM

92210-1514

1
Out of stock
