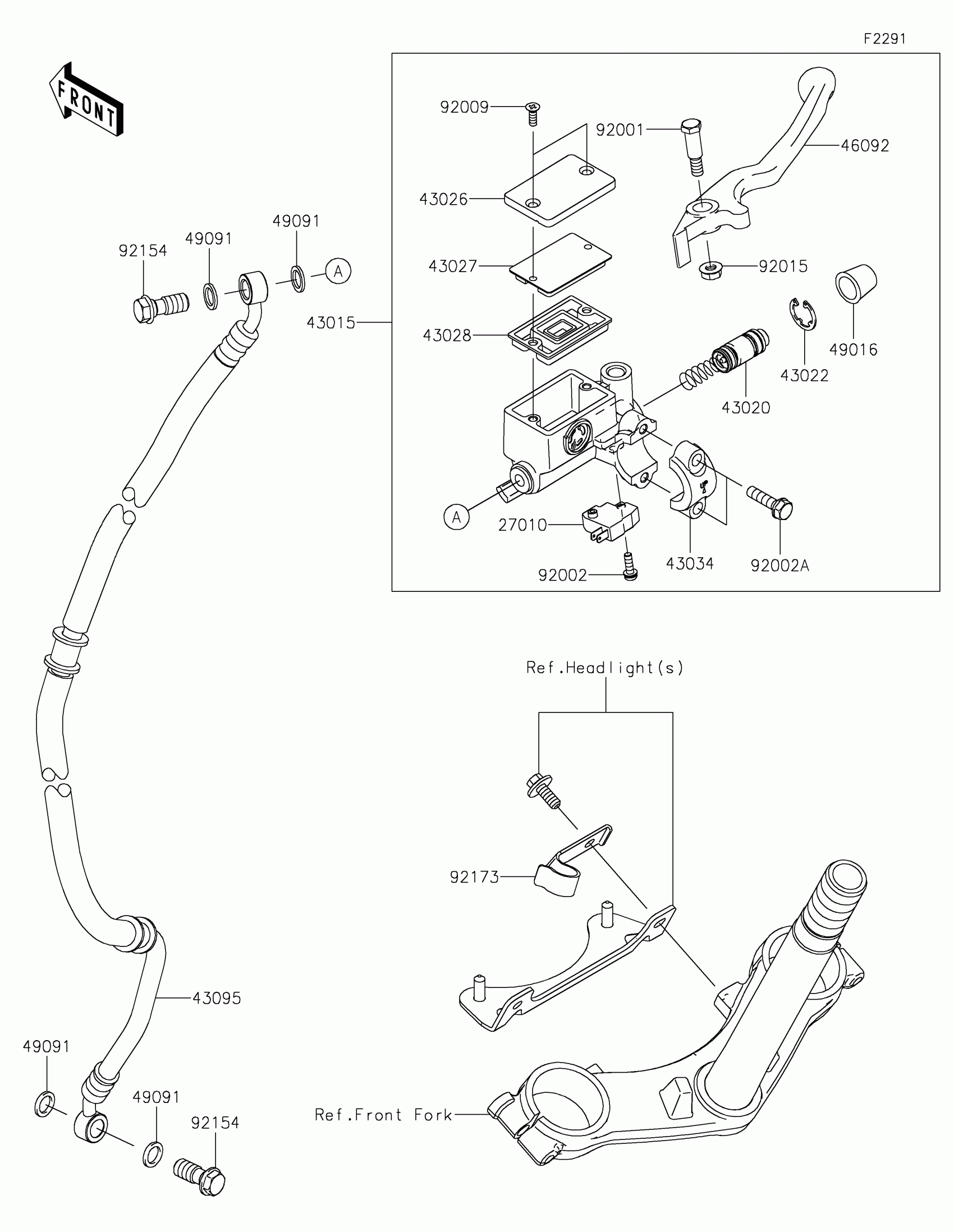

Kawasaki Z125 PRO Front Master Cylinder Diagram

Description

Price

27010

SWITCH,BRAKE

27010-0762

$35.04

43015

CYLINDER-ASSY-MASTER

43015-0680

$341.40

43020

PISTON-COMP-BRAKE

43020-1095

$51.24

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1082

$20.87

43027

PLATE-DIAPHRAGM

43027-1057

$4.13

43028

DIAPHRAGM

43028-1061

$16.18

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43095

HOSE-BRAKE,FR,807MM

43095-0903

$90.83

46092

LEVER-GRIP,FR BRAKE

46092-0553

$21.05

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$14.23

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT

92002-1894

$5.52

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92154

BOLT,FLANGED,10X23

92154-0732

$5.05

92173

CLAMP

92173-1541

$3.86
