Description

Price

11056

BRACKET

11056-7604

$7.59

11056A

BRACKET

11056-7605

$24.54

35004A

FENDER-FRONT,P.L.ORANGE

35004-0352-36V

$72.80

35004B

FENDER-FRONT,M.M.D.GREEN

35004-0352-63Y

$72.80

35019

FLAP

35019-0605

$73.00

35023

FENDER-REAR

35023-0410

$48.48

35034

REINFORCE

35034-0597

$56.15

92009

SCREW,6X14

92009-3845

$1.06

92039

RIVET

92039-1231

$1.81

92150

BOLT,6X14

92150-1340

$5.07

92154

BOLT,SOCKET,6X14

92154-2161

$1.19

92161

DAMPER

92161-1359

$1.19

92161B

DAMPER

92161-1810

$1.19

92161C

DAMPER

92161-1842

$0.95

92161D

DAMPER,10X35X11

92161-1924

$2.32

92172

SCREW,6X12

92172-0394

$1.15

92173

CLAMP

92173-1485

$3.29

92200

WASHER,3.5X8X1

92200-1251

$1.00

92200A

WASHER,6.5X16X1

92200-1784

$0.42

130

BOLT-FLANGED,6X16

130BA0616

$1.20

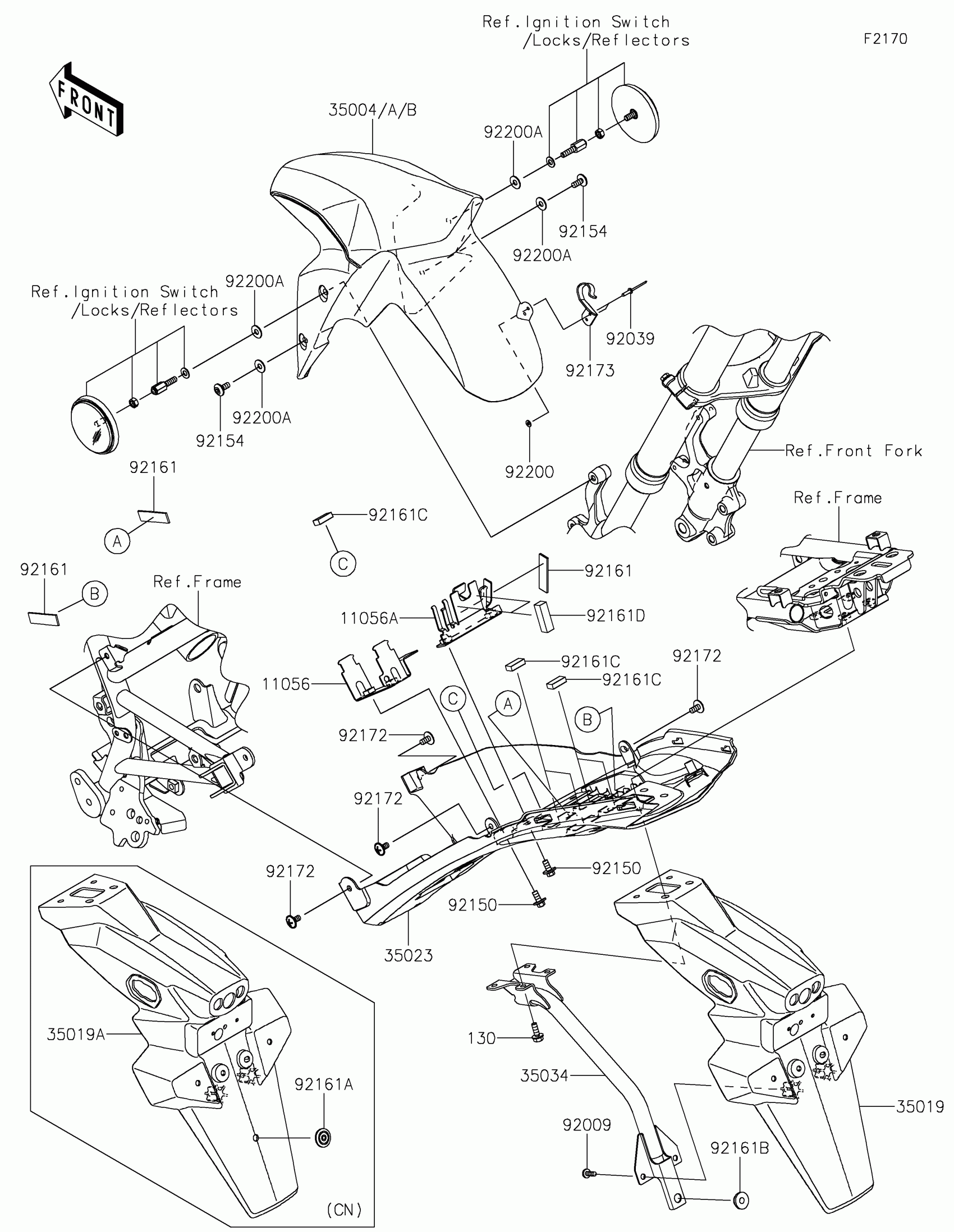

Kawasaki Z125 PRO Fenders Diagram

BRACKET

BRACKET

FENDER-FRONT,P.L.ORANGE

FENDER-FRONT,M.M.D.GREEN

FLAP

FENDER-REAR

REINFORCE

SCREW,6X14

RIVET

BOLT,6X14

BOLT,SOCKET,6X14

DAMPER

DAMPER

DAMPER

DAMPER,10X35X11

SCREW,6X12

CLAMP

WASHER,3.5X8X1

WASHER,6.5X16X1

BOLT-FLANGED,6X16
