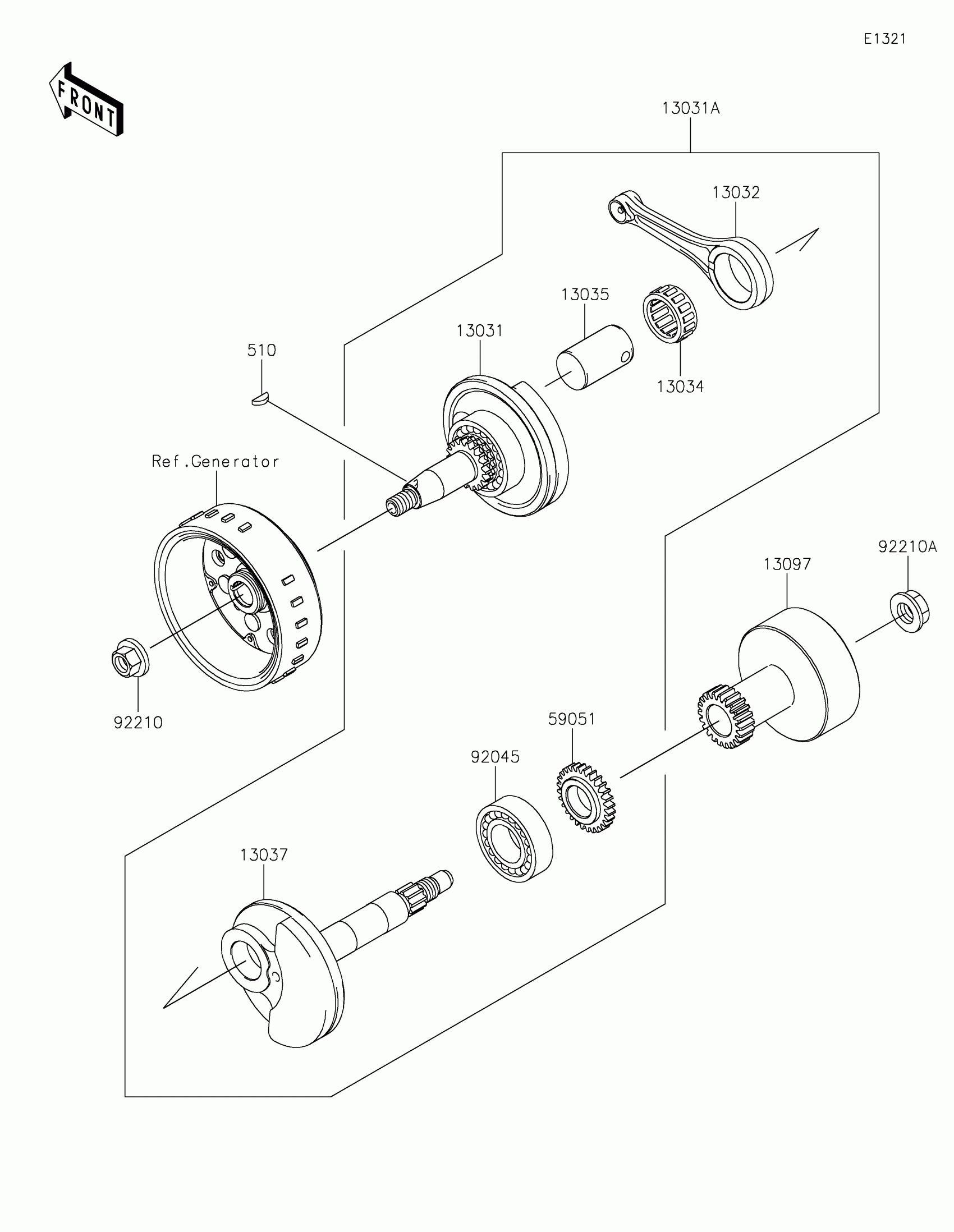

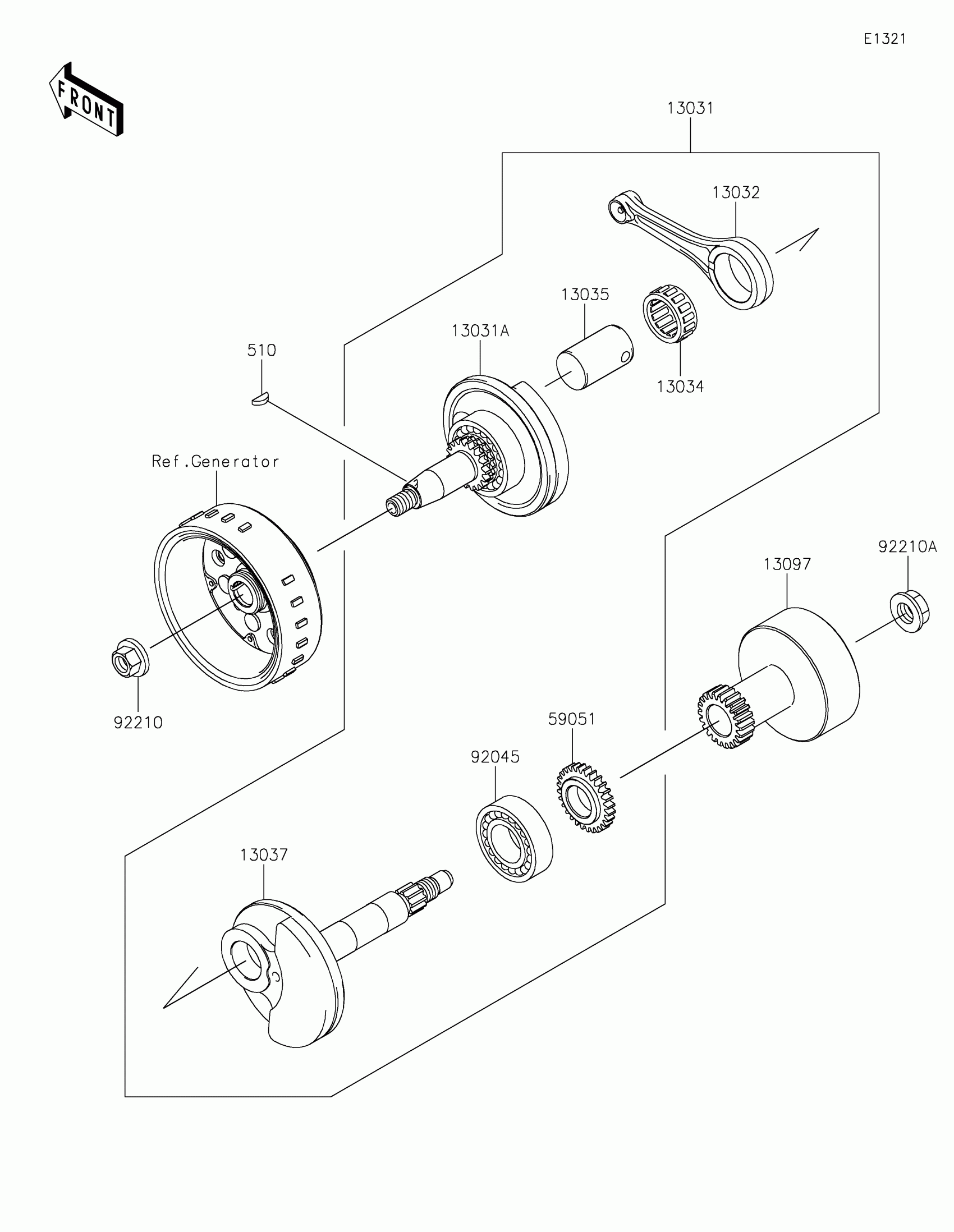

Kawasaki Z125 PRO Crankshaft Diagram

Description

Price

13031

CRANKSHAFT-COMP,LH

13031-0826

$110.64

13031A

CRANKSHAFT-COMP

13031-0891

$261.50

13032

ROD-CONNECTING

13032-0749

$83.05

13034

BEARING-BIG END,KT 263314EGC06

13034-0010

$35.33

13035

PIN-CRANK

13035-0031

$43.54

13037

CRANKSHAFT,RH

13037-0790

$121.68

13097

GEAR-PRIMARY SPUR,22T

13097-0581

$166.81

59051

GEAR-SPUR

59051-1402

$9.35

92045

BEARING-BALL,TMB205CJR2C2

92045-1293

$34.10

92210

NUT,12MM

92210-0176

$2.61

92210A

NUT,14MM

92210-1374

$9.71

510

KEY-WOODRUFF

510A3200

$2.70
