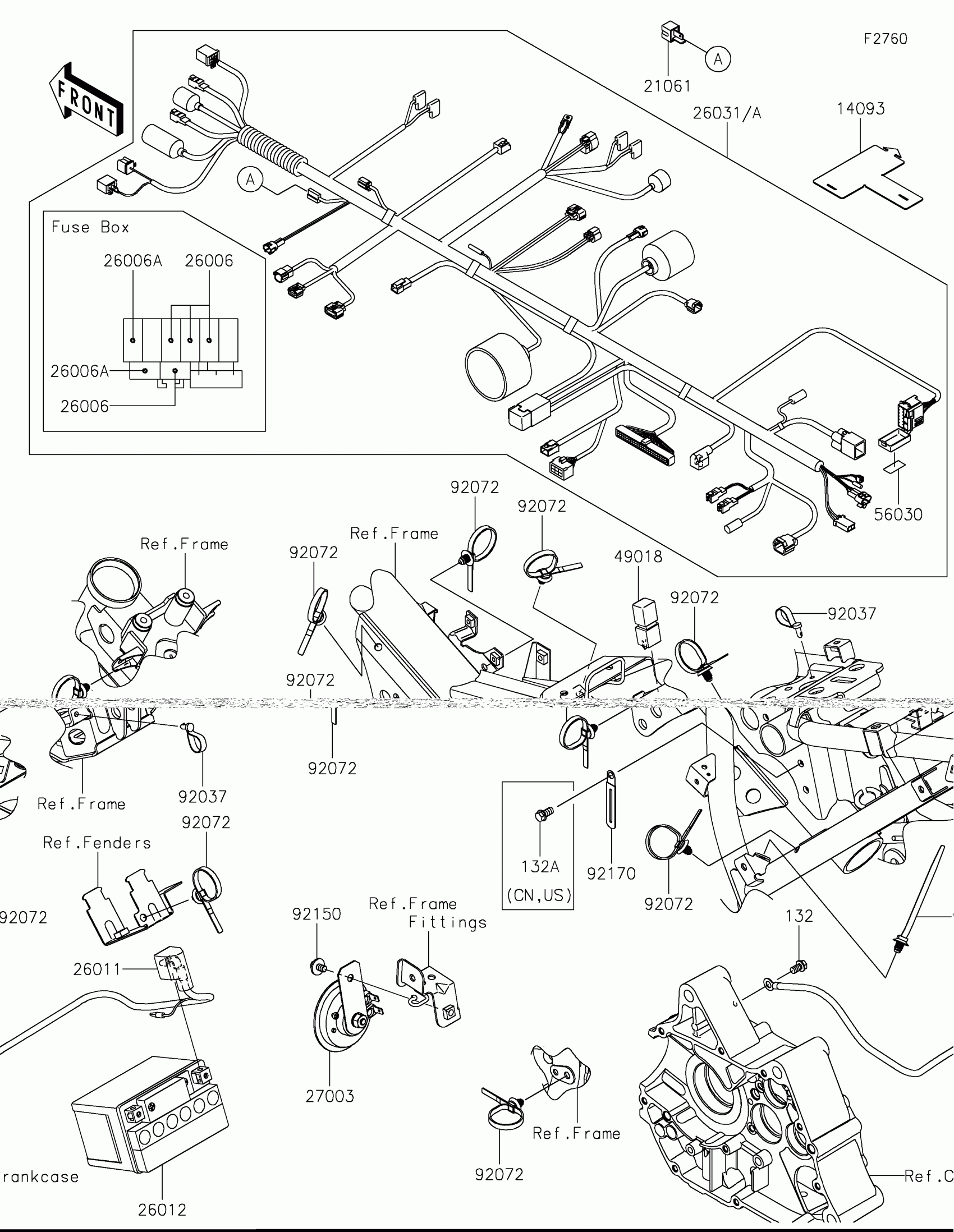

Kawasaki Z125 PRO Chassis Electrical Equipment Diagram

Description

Price

14093

COVER,CONNECTOR

14093-0486

$3.26

21061

RECTIFIER

21061-1003

$29.60

26006

FUSE,MINI BLADE,10A

26006-0031

$6.29

26006A

FUSE,MINI BLADE,20A

26006-0032

$6.29

26011

WIRE-LEAD

26011-0920

$39.08

26012

BATTERY,FTH4L-BS,12V 3AH

26012-1439

$163.93

26031A

HARNESS,MAIN

26031-2733

$966.43

27003

HORN

27003-0120

$65.96

49018

DIODE

49018-0005

$47.13

56030

LABEL,FUSE BOX

56030-0983

$3.29

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92150

BOLT,6X14

92150-1340

$5.07

92170

CLAMP

92170-1514

$4.31

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

26031

HARNESS,MAIN

26031-2732

$966.43

132A

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20
