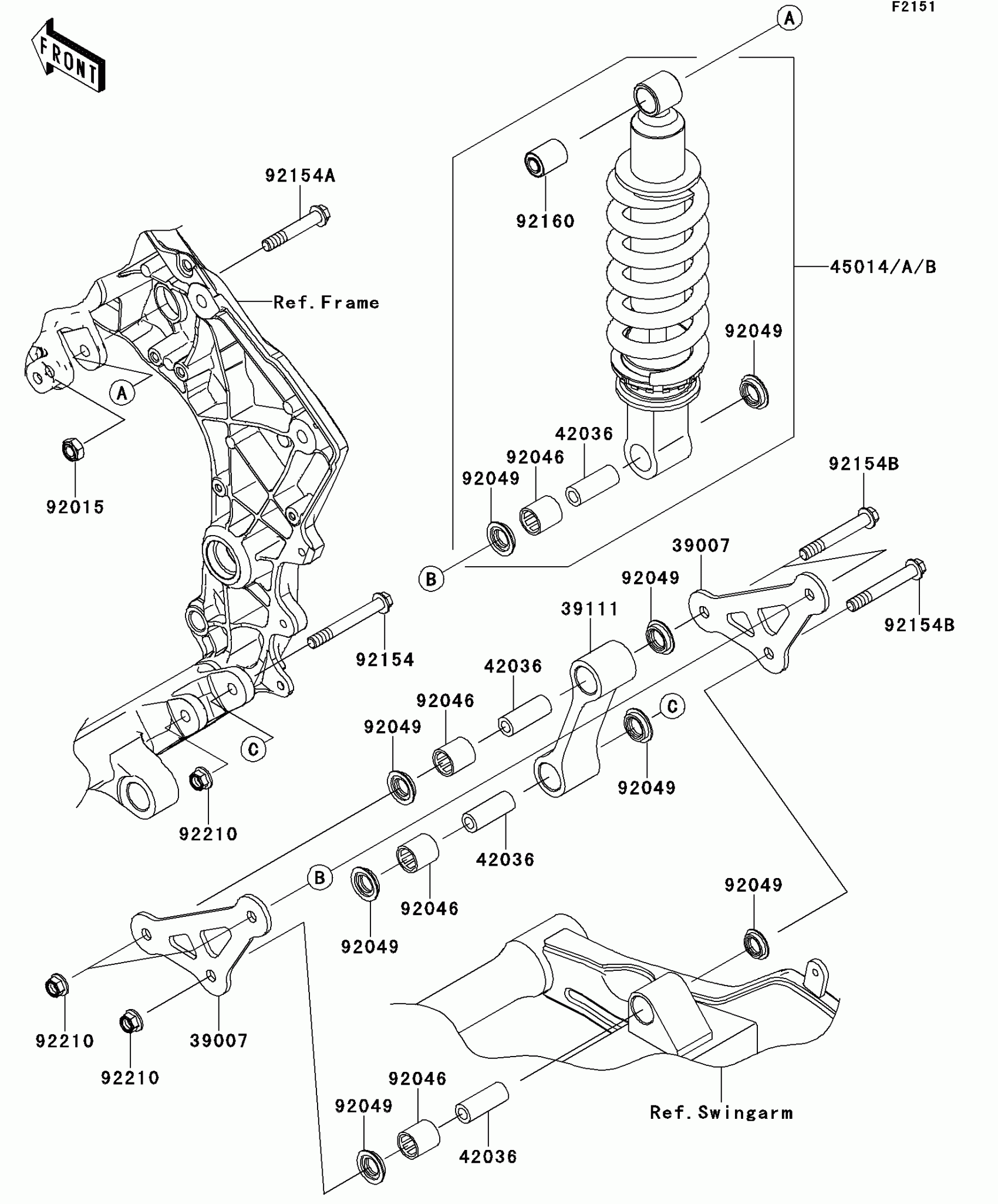

Kawasaki Z1000 Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK,P.SILVER

39007-0156-458

$29.92

39111

ROD-TIE,SUSPENSION,F.S.BLACK

39111-0069-18R

$99.74

42036

SLEEVE,10.1X17X44.5

42036-1342

$11.28

45014A

SHOCK,SPRING SIL+BODY BLK

45014-0358-23I

$952.01

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92154

BOLT,FLANGED,10X77

92154-0262

$5.59

92154A

BOLT,FLANGED,10X60

92154-0263

$5.29

92154B

BOLT,FLANGED,10X67

92154-0264

$5.29

92160

DAMPER,SHOCKABSORBER

92160-1496

$17.65

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18
