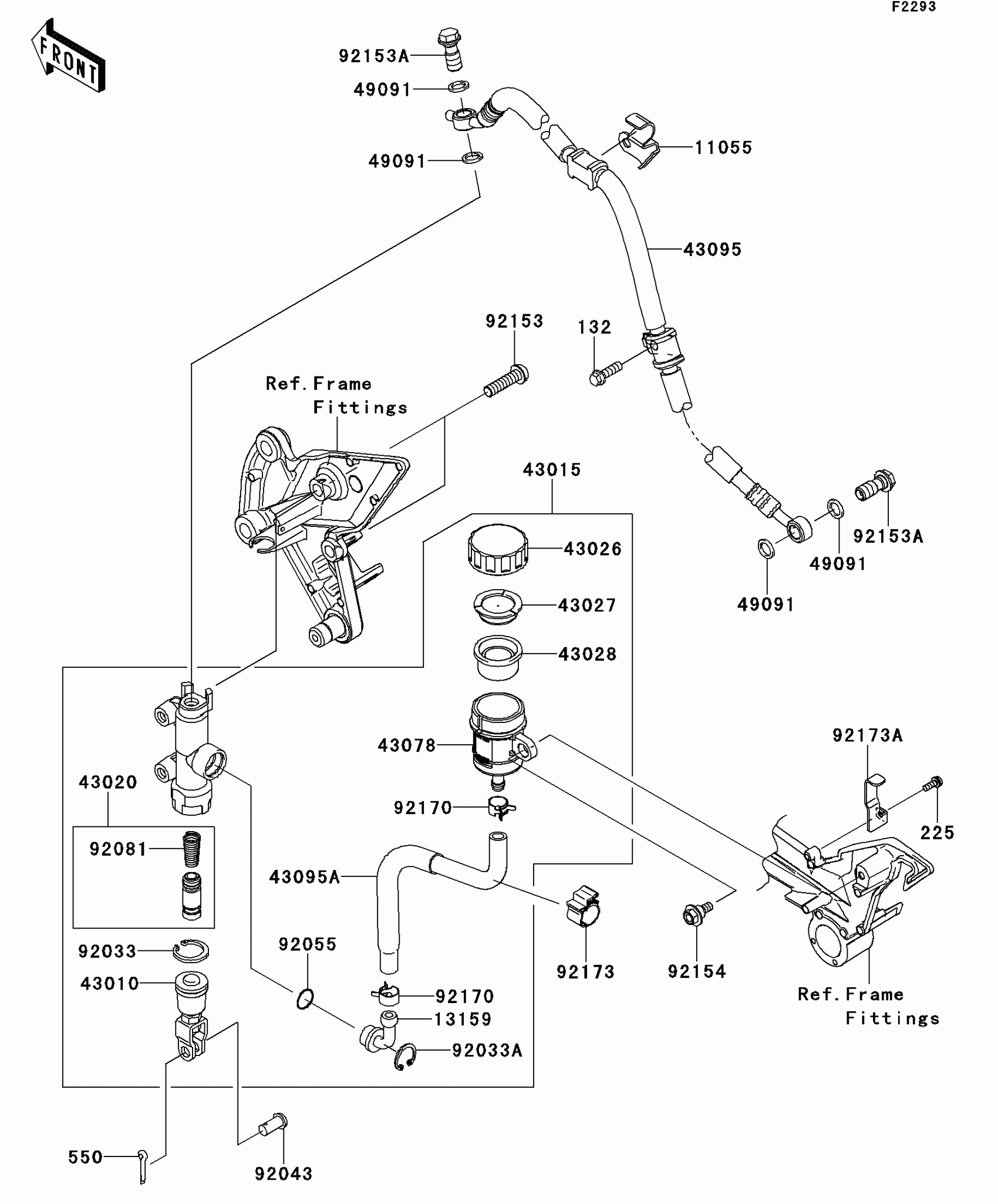

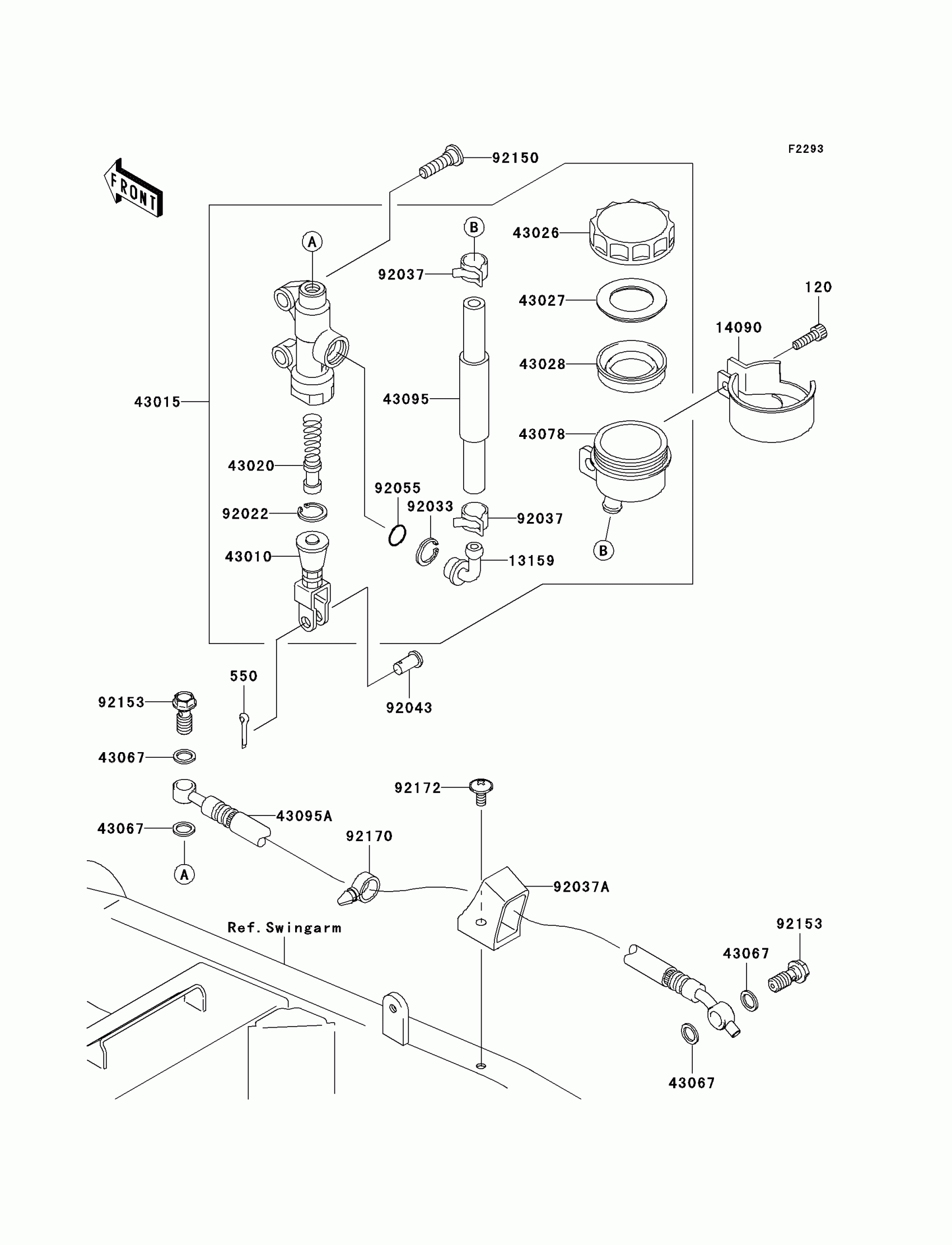

Find the part on the Rear Master Cylinder diagram for your 2005 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Z1000 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120S0620

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

1
Out of stock

14090

COVER,RESERVOIR TANK

14090-1482

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-1062

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

43015-1706

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1094

1
Out of stock

43026

CAP-BRAKE

43026-1051

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1051

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

1
Out of stock

43067

WASHER,10.5X15X1.5

43067-001

1
Out of stock

43078

RESERVOIR,RR MASTER CYLINDER

43078-1165

1
Out of stock

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-1292

1
Out of stock

43095A

HOSE-BRAKE,RR

43095-1337

1
Out of stock

92022

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92037

CLAMP,BRAKE HOSE

92037-1547

1
Out of stock

92037A

CLAMP,HOSE

92037-1896

1
Out of stock

92043

PIN,8MM

92043-1303

1
Out of stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

92150

BOLT,SOCKET,8X30

92150-1843

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92170

CLAMP

92170-1067

1
Out of stock

92172

SCREW,6X14

92172-0004

1
Out of stock
