2005 Kawasaki Z1000 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2005 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

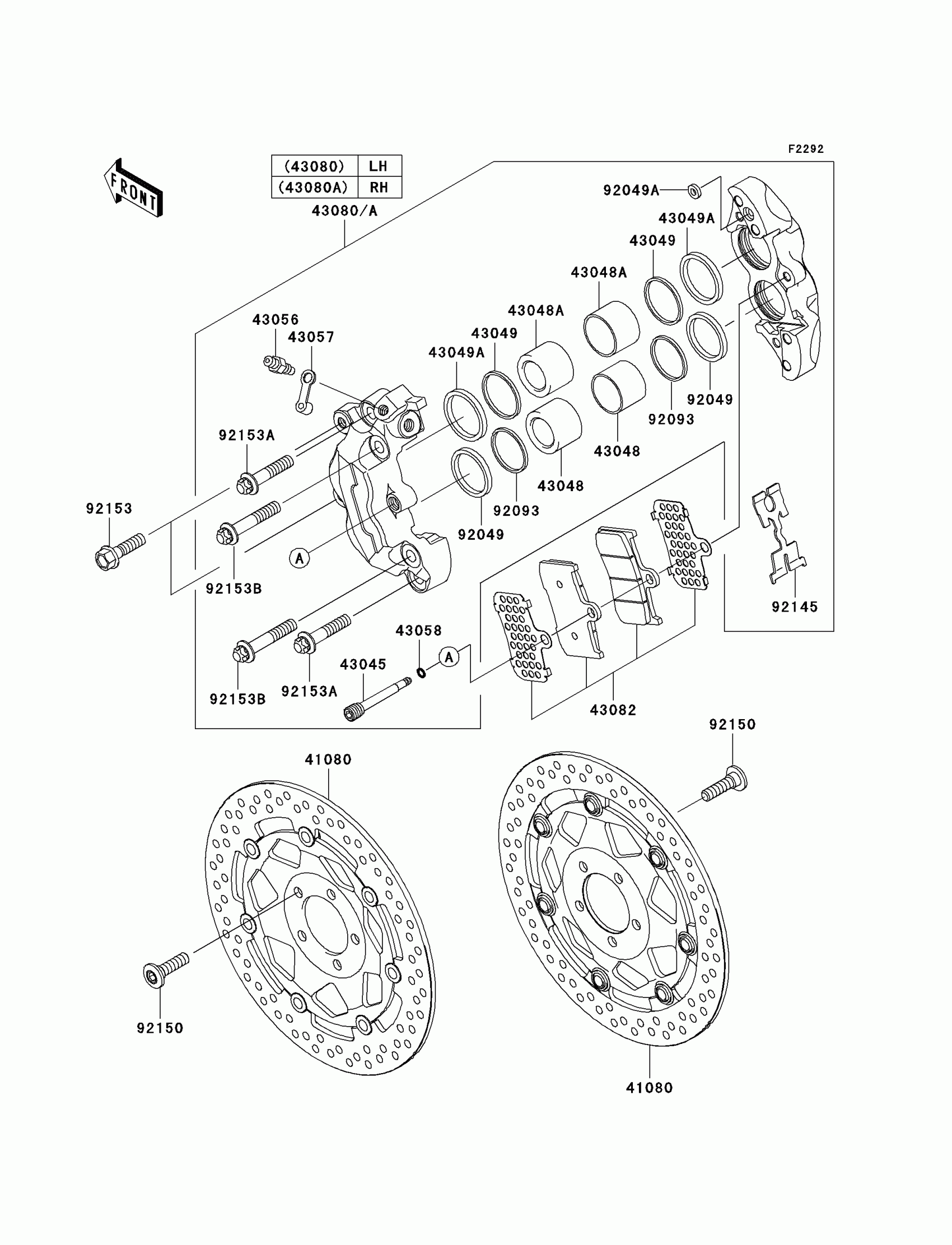

2005 Kawasaki Z1000 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

1

$461.30

In stock

43045

SHAFT-CALIPER

43045-1053

1

$5.98

In stock

43048

PISTON-CALIPER

43048-0001

1

$69.66

In stock

43048A

PISTON-CALIPER

43048-0002

1

$77.83

In stock

43049

PACKING

43049-1081

1

$6.18

In stock

43049A

PACKING

43049-1082

1

$10.63

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43058

RING,STOPPER

43058-1100

1

$11.22

In stock

43080

1

$426.34

In stock

43080A

1

$426.34

In stock

43082

PAD-ASSY-BRAKE

43082-0002

1

$69.79

In stock

92049

SEAL-OIL,PISTON

92049-1331

1
Out of stock

92049A

SEAL-OIL

92049-1448

1
Out of stock

92093

SEAL,PISTON

92093-1272

1

$15.29

In stock

92145

SPRING,PAD

92145-0184

1

$16.75

In stock

92150

BOLT,SOCKET,8X30

92150-1771

1

$3.72

In stock

92153

BOLT,FLANGED,8X30

92153-1089

1
Out of stock

92153A

BOLT,TORX,8X38

92153-1093

1
Out of stock

92153B

BOLT,TORX,8X45

92153-1094

1
Out of stock
